Avaya NEC NEAX 2400 IMS Configuration Note

O c t e l 2 0 0 / 3 0 0
M e s s a g e S e r v e r
NEAX 2400 IMS
TRUNK
CPU
Software Series 5200

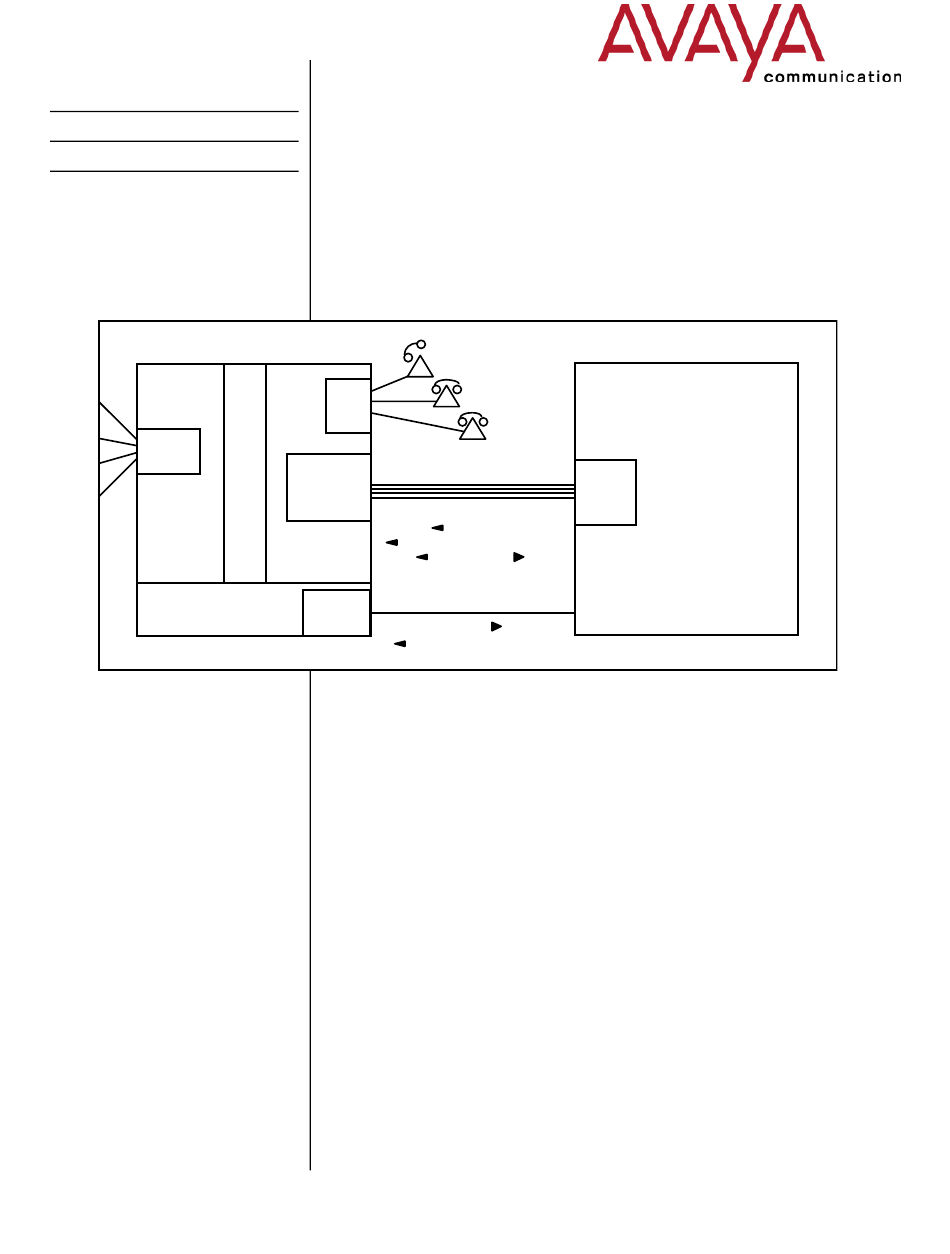

With RS232 integration, call
information is transmitted over a
digital RS232 link between the
PBX and the Octel system.
Octel requirements
Configuration Note 6057
NEC NEAX 2400 IMS
Series 5200 Software
LINE
TDM
16LC-G
BUS
Line
Cards
Multiple Return to Operator
IO02A
PORT
Message Waiting On/Off
1.0 METHOD OF INTEGRATION
With RS232 integration, call information is transmitted over a digital
RS232 link between the PBX and the Octel system. Voice
communications are provided by a separate path created by analog lines on
the PBX that connect to the Octel system. When an incoming call is
received, it is accompanied by a digital message from the PBX containing
call information. The Octel system then answers the call and plays the
appropriate greeting. To set or cancel message-waiting notification, the
Octel system sends a digital message over the RS232 link to the PBX.
2.0 OCTEL ORDERING INFORMATION
• LIC4, LIC8, or DLC16 (4, 8, or 16 ports per LIC card)
• Serenade 1.0 or higher (Refer to the PRM for earlier software
releases)
• Disk drives
• Adaptive Integration Software
• One 25-pair cable per slot
Disclaimer: Configuration Notes are designed to be a general guide reflecting AVAYA Inc.'s experience configuring its systems.
These notes cannot anticipate every configuration possibility given the inherent variations in all hardware and software products.
Please understand that you may experience a problem not detailed in a Configuration Note. If so, please notify the the
TAC/TSO at (408) 922-1822 and if appropriate we will include it in our next revision. AVAYA Inc. accepts no responsibility for
errors or omissions contained herein.
XXX
VOICE PATH
LICs
Outcalling
Auto Attendant
RS-232
Call ID
- Ver A (1/98)
with
Overture 200/300
Minimum Software
Serenade 1.0
