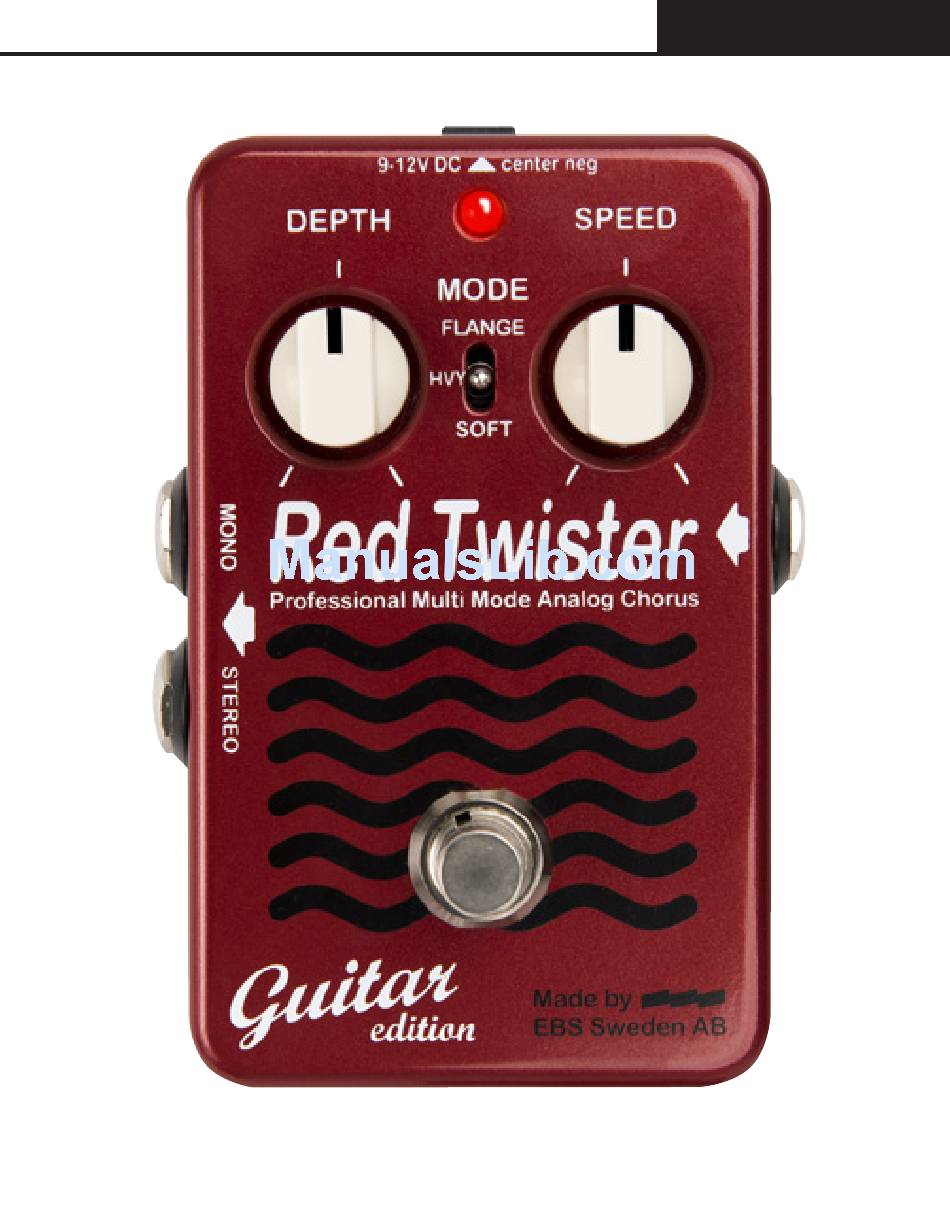

USERS MANUAL
EBS RED TWISTER - GUITAR EDITION
w w w . e b s s w e d e n . c o m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RED TWISTER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EBS RED TWISTER

Summary of Contents for EBS RED TWISTER

  • Page 1 USERS MANUAL EBS RED TWISTER - GUITAR EDITION w w w . e b s s w e d e n . c o m...
  • Page 2 THANK YOU FOR PURCHASING THE EBS RED TWISTER - GUITAR EDITION PEDAL! The EBS Red Twister is a studio quality analog Chorus and Flange effect for guitar with stereo output and true bypass. The internal fine-tuning option to change the Effect mix can be used to blend in the effect with the original tone.
  • Page 3 Depth control to fine-tune your personal sound. FLANGE - This mode set can be used for the typical flanged sound effect. The Red Twister Flange mode is perfectly suited for guitar. HEAVY - This position gives the most apparent chorus effect with the delay time fine tuned for guitar.
  • Page 4 POWER OPTIONS DC POWER ADAPTOR For environmental reasons, we recommend the use of a DC Power Supply, such as the EBS AD-9+. The EBS Red Twister Guitar Edition handles 9-12 V DC, and require a 2.1 mm pin center negative type of connector.
  • Page 5 EBS RED TWISTER - GUITAR EDITION ADVANCED CONTROL OPTIONS (inside the box) EFFECT MIX LEVEL The EBS Red Twister pedal is equipped with an effect mix trimmer, FX MIX, for further fine-tuning your sound. This function makes it possible adjust the amount of the pure chorus signal to mix in with the normal ”bypassed ”...
  • Page 6 USERS MANUAL EBS RED TWISTER - GUITAR EDITION SAMPLE SOUND SETTINGS The following examples below show a few of the many sonic possibilities of the EBS Red Twister. CHORDY CHORUS SPEED Wide chorus suitable for chord playing. SOFT BROKEN FLANGE...
  • Page 7 USERS MANUAL EBS RED TWISTER - GUITAR EDITION TROUBLE SHOOTING GUIDE Please consult the following checkpoints, before consulting one of the authorized EBS service centers. Checkpoint Action if answered NO 1) Does the cable(s) work - Replace cable(s). properly? 2) Are the 1/4” plugs properly - Push the 1/4”...
  • Page 8 USERS MANUAL EBS RED TWISTER - GUITAR EDITION TECHNICAL SPECIFICATIONS EBS RED TWISTER Guitar Edition Nominal Input Level - 8 dBv Input Impedance 700 kohms Bandwidth +0/-3 dB 20 - 20 kHz Delay Bandwidth +0/-3 dB 200 - 8 kHz...
