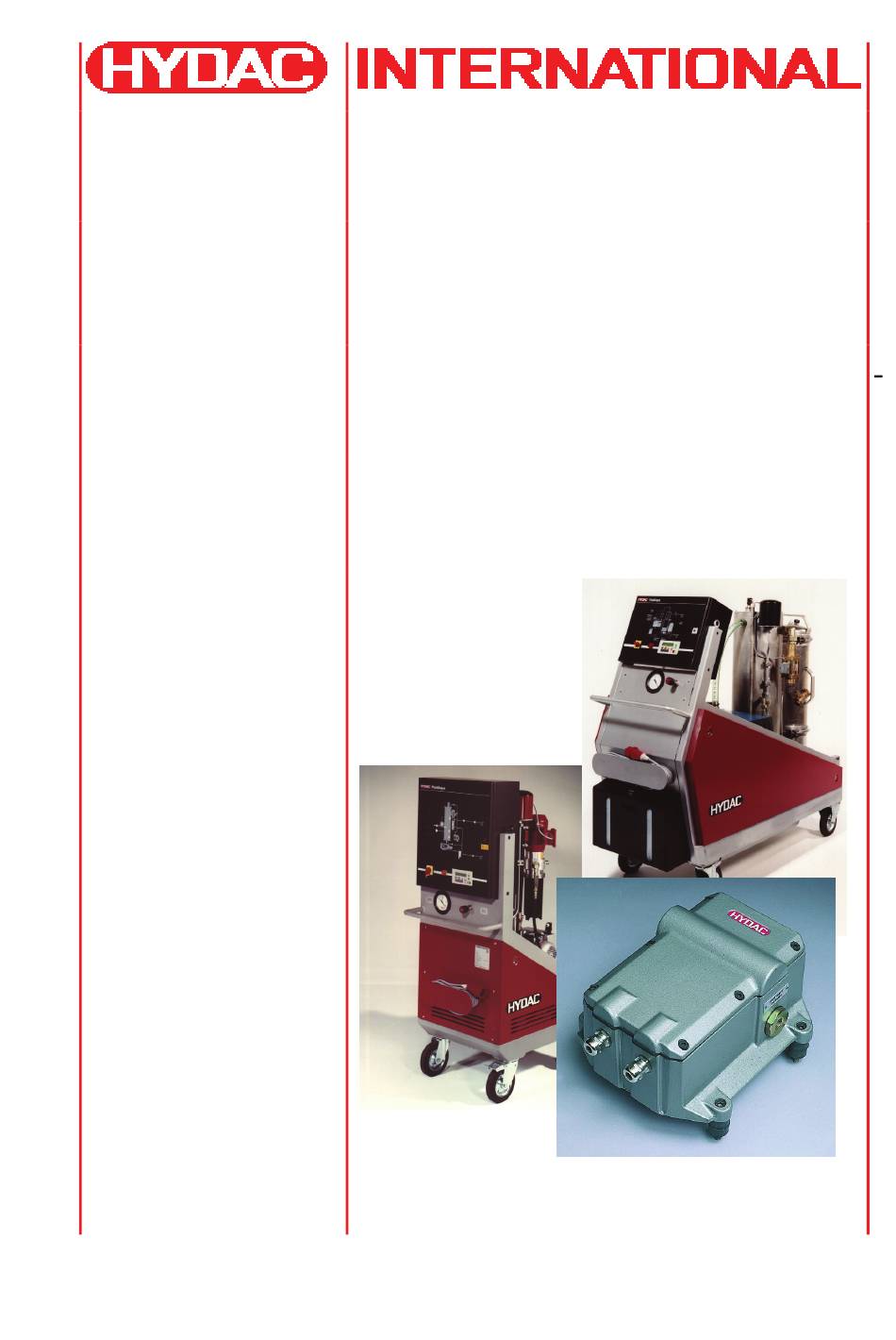

- Page 1 FAM10/15/30/50/70 with Contamination Sensor CS Additional instructions English (translation of original instructions) Document-no.: 3189702b...
-
Page 2: Trademarks
Technical specifications are subject to change without notice. HYDAC Filter Systems GmbH Postfach 12 51 66273 Sulzbach / Saar Germany Documentation Representative Günter Harge c/o HYDAC International GmbH, Industriegebiet, 66280 Sulzbach / Saar Telephone: ++49 (0)6897 509 1511 Telefax: ++49 (0)6897 509 1394 E-mail: guenter.harge@hydac.com... -
Page 3: Table Of Contents
Content Content Trademarks ..........................2 Documentation Representative .................... 2 Content............................ 3 Preface ............................ 4 Technical Support......................... 5 Modifications to the Product ....................5 Warranty ..........................5 Using the documentation ...................... 6 Introduction ..........................7 Abbreviations and symbols....................7 Description..........................8 Measuring system......................... -
Page 4: Preface
Preface Preface For you, as the owner of a product manufactured by us, we have produced this manual, comprising the most important instructions for its operation and maintenance. It is intended to help you become acquainted with the ins and outs of the product and use it properly. -
Page 5: Technical Support
Preface Technical Support If you have any questions, suggestions, or encounter any problems of a technical nature, please don't hesitate to contact us. When contacting us, please always include the model/type designation and article no. of the product: Fax: ++49 (0) 6897 509 846 Email: filtersystems@hydac.com Modifications to the Product We would like to point out that changes to the product (e.g. -
Page 6: Using The Documentation
Preface Using the documentation Please note that the method described above of locating specific information does not release you from your responsibility for carefully reading the entire manual prior to starting the unit up for the first time and carefully rereading the manual at regular intervals later on. WHAT do you want to know? I determine which topic I am looking for. -
Page 7: Introduction
Introduction Introduction These operating instructions are intended as a supplement to the documentation "Operating and maintenance instructions FAM" and "Operating and maintenance instructions CS2000 Series“. Please consult the corresponding documentation for safety precautions and general operating and warning instructions. Abbreviations and symbols The following symbols are used in these supplementary operating instructions to designate instructions of particular importance: This symbol marks an important note for the proper handling and... -
Page 8: Description
Description Description The Contamination Sensor enables particulate contamination to be continuously monitored and the fluid to be automatically cleaned up to a specified cleanliness rating. The dedusting of the fluid up to a set cleanliness class can thereby be carried out automatically. -
Page 9: Controlling The Fam Through The Cs2000 (Optional)
Controlling the FAM through the CS2000 Controlling the FAM through the CS2000 (optional) In addition to the FAM's standard mode of operation it can also be controlled by way of the fluid cleanliness. This is done by specifying on the Contamination Sensor a cleanliness class rating to be achieved (cleanliness class rating according to ISO 4406, NAS 1838 or SAE AS4059, depending on the model). - Page 10 Controlling the FAM through the CS2000 HYDAC Contamination Sensor offline! Measuring cycle stopped x - Restart Measurement p - Enter Parameter Mode Enter key (x, p) and Return! Press the "p" key and then Return to switch to Parameter Mode. The following display appears after Parameter mode starts: Parameter Mode: x - Go back...
- Page 11 Controlling the FAM through the CS2000 Actual value for Mode: 2 The measurement mode has been changed in the example from M3 to M2. 11. The cleanliness class at which the FAM is switched off is set under "Limits mode 2": Measurement channel for relay 1 (alarm relay): CS 2030 CS 2130...
- Page 12 Controlling the FAM through the CS2000 Example: Relay 1, measuring channel 0=SAE A, 1=SAE B, 2=SAE C, 3=SAE D, 4=ISO ch.0, 5=ISO ch.1, 6=ISO ch.2, 7=SAE A..D, 8=ISO code, 9=flow, 10=LED current setting: 3 new setting (enter 'Return' to keep setting): 8 'Return' current setting : 8 (selected: three-part ISO code) Relay 1,switching function...
- Page 13 Controlling the FAM through the CS2000 Since the ISO code has been selected, a three-part value has to be entered each for the lower and upper value, i.e. a total of 6 values. In the example shown above, relay 1 closes as soon as the measured cleanliness class in all channels is smaller than or equal to the lower limit (16/14/12) and opens again as soon as a channel is larger than or equal to the upper limit (20/17/15).
-
Page 14: Activating Automatic Switch-Off
Controlling the FAM through the CS2000 Activating Automatic Switch-off After switching on the FAM via , use the button to switch into controlled mode. The following now appears in the display: FluidAqua is in operation Autom. Switch-off Active The automatic switch-off via the contamination sensor is not enabled until a "minimum running time prior to automatic switch-off"... -
Page 15: Remedying Malfunctions
Remedying malfunctions Remedying malfunctions In the case of extremely soiled media, the throttle valve may slowly clog up, which will result in the flow through the CS falling off accordingly. The valve can be flushed free again by completely opening the throttle valve for a few minutes. - Page 16 HYDAC Filter Systems GmbH Industriegebiet Postfach 1251 66280 Sulzbach/Saar 66273 Sulzbach/Saar Germany Germany Phone: +49 (0) 6897 509 01 Central Fax: +49 (0) 6897 509 846 Technical Department Fax: +49 (0) 6897 509 577 Sales Department Internet: www.hydac.com E-Mail: filtersystems@hydac.com...
