Summary of Contents for Aruba 9004

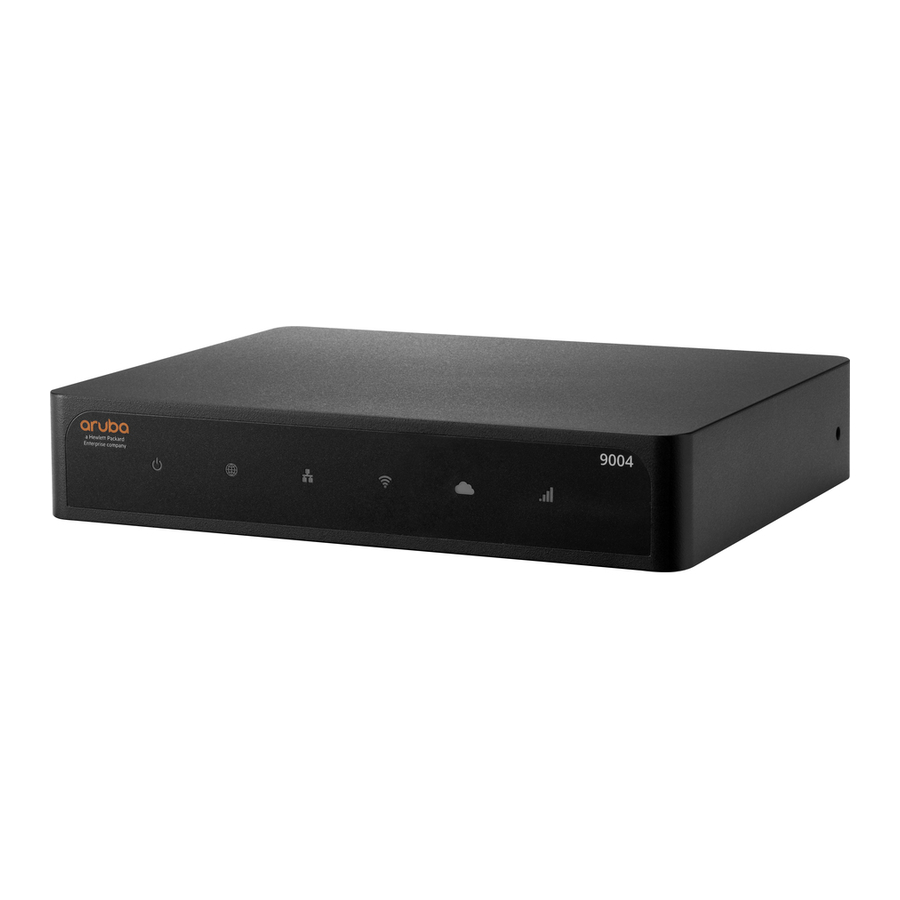

- Page 1 Aruba 9004 Gateway...
- Page 2 Attn: General Counsel 6280 America Center Drive San Jose, CA 94089 www.arubanetworks.com Hewlett Packard Enterprise Company Attn: General Counsel 6280 America Center Drive San Jose, CA 94089 Phone: 408.227.4500 Fax 408.227.4550 Aruba 9004 Gateway | Installation Guide Revision 01 | August 2019...
-
Page 3: Table Of Contents
Guide Overview......................5 Related Documentation................... 5 Contacting Support ....................5 9004 Gateway ..................7 Package Checklist ..................... 7 Aruba 9004 Gateway Components ................ 7 Front Panel LEDs....................8 DC Power Connector ..................9 Reset Switch ....................... 9 Ethernet Ports ....................9 Micro-USB Console Port.................. - Page 4 | Installation Guide Aruba 9004 Gateway...
-
Page 5: Preface
Preface This document describes the hardware features of the Aruba 9004 gateway. It provides a detailed overview of the physical and performance characteristics of the gateway and explains how to install the gateway and its accessories. Guide Overview Chapter 1, “9004 Gateway” on page 7 provides a detailed hardware overview of the Aruba 9004 ... - Page 6 | Preface | Installation Guide Aruba 9004 Gateway...
-
Page 7: 9004 Gateway
Power adapter Aruba 9004 Start-up Guide (Printed) Adapter cable saddle Optional accessories are available for use with the Aruba 9004 gateway and are sold separately. Contact your Aruba sales representative for details and assistance. Aruba 9004 Gateway Components This section introduces the different component and its location in the Aruba 9004 gateway. -
Page 8: Front Panel Leds
The front panel LEDs show the System, WAN, and LAN status including various other features. These front panel LEDs provide basic monitoring information of the overall status of the Aruba 9004 gateway. The following table describes the LED indicators and their corresponding status:... -
Page 9: Dc Power Connector
Red (Blinking) Hardware Failure. USB Failure. Unsupported USB Device Attached. DC Power Connector The AC-DC adapter kit with the following specification is used to power the Aruba 9004 gateway: 12V/2.5A power interface Center-positive 2.1/5.5 mm circular plug, 9.5 mm length ... -
Page 10: Micro-Usb Console Port
Link at 100 Mbps Micro-USB Console Port The Aruba 9004 gateway is equipped with a Micro-USB (type B) connector that provides console access for direct local access. If both Micro-USB and RJ-45 console ports are connected, the Micro- USB connection takes precedence over the RJ-45 console connection. -
Page 11: Console Port
RJ-45 DB-9 Ground USB Port The Aruba 9004 gateway is equipped with a USB 3.0 interface. A USB storage device can be used to save and upload configurations to the gateway. | Installation Guide 9004 Gateway | Aruba 9004 Gateway... -
Page 12: Kensington Lock Slot
Kensington Lock Slot The Aruba 9004 gateway is equipped with a Kensington security slot for additional security. | 9004 Gateway | Installation Guide Aruba 9004 Gateway... -
Page 13: Installation
(not included). See Figure Use 3/4 inch long #6 pan head wood screws for mounting 9004 unit on wood. Use 3/4 inch long #6 pan head wood screws with plastic screw anchor #6-8 x 1 inch on dry wall ... - Page 14 2. Align the mounting slots on the bottom of the gateway over the screws and slide the unit into place. See Figure 7 Figure 7 Wall Mounting Aruba 9004 Gateway 3. Align the cable saddle with the slot on the side of the gateway and push the cable saddle into the unit to secure it. See...
- Page 15 Figure 9 Securing a cable | Installation Guide Installation | Aruba 9004 Gateway...
- Page 16 | Installation | Installation Guide Aruba 9004 Gateway...
-
Page 17: Specifications, Safety, And Compliance
Aruba gateways must be installed by a professional installer. The professional installer is responsible for ensuring that grounding is available and it meets applicable local and national electrical codes. RF Radiation Exposure Statement: This equipment complies with RF radiation exposure limits. This equipment should be installed and operated with a minimum distance of 7.874 inches (20cm) between the radiator and... -
Page 18: Fcc Class B Part 15
undesired operation. Changes or modifications to this unit not expressly approved by Aruba, a Hewlett Packard Enterprise company could void the user’s authority to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 19: Eu Regulatory Conformance
This product is a Class B product based on the standard of the VCCI Council. If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual. Thailand | Installation Guide Specifications, Safety, and Compliance | Aruba 9004 Gateway... -
Page 20: Proper Disposal Of Aruba Equipment
Proper Disposal of Aruba Equipment Waste of Electrical and Electronic Equipment Aruba, a Hewlett Packard Enterprise company products at end of life are subject to separate collection and treatment in the EU Member States, Norway, and Switzerland and therefore are marked with the symbol shown at the left (crossed-out wheelie bin). -
Page 21: Korean
第十二條 ※ 經型式認證合格之低功?射頻電機，非經許可，公司、商號或使用者均?得擅自 變頻、加大功或變原設計之特性及功能。 第十四條 ※ 低功射頻電機之使用?得影響飛航安全及干擾合法通信；經發現有干擾現象時，應即停用，並改善至無干擾時方得繼 續使用。 - 前項合法通信，指依電信法規定作業之無線電通信。 - 低功射頻電機須忍受合法通信或工業、科學及醫?用電波?射性電機設備之干擾。 支援 5G 功能則必須補上 " 應避免影響附近雷達系統之操作 " 不具備外接或替換天線時須加註： " 高增益指向性天線只得應用於固定式點對點系統。 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變 更原設計之特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至 無干擾時方得繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。 低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 1. 應避免影響附近雷達系統之操作。 | Installation Guide Specifications, Safety, and Compliance | Aruba 9004 Gateway... -
Page 22: Нормативные Требования Евразийского Экономического Союза
La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debeaceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada. | Specifications, Safety, and Compliance | Installation Guide Aruba 9004 Gateway...
