Making Up A Sewing Sample - Pfaff expression 2014 Service Manual

22. Making up a sewing sample

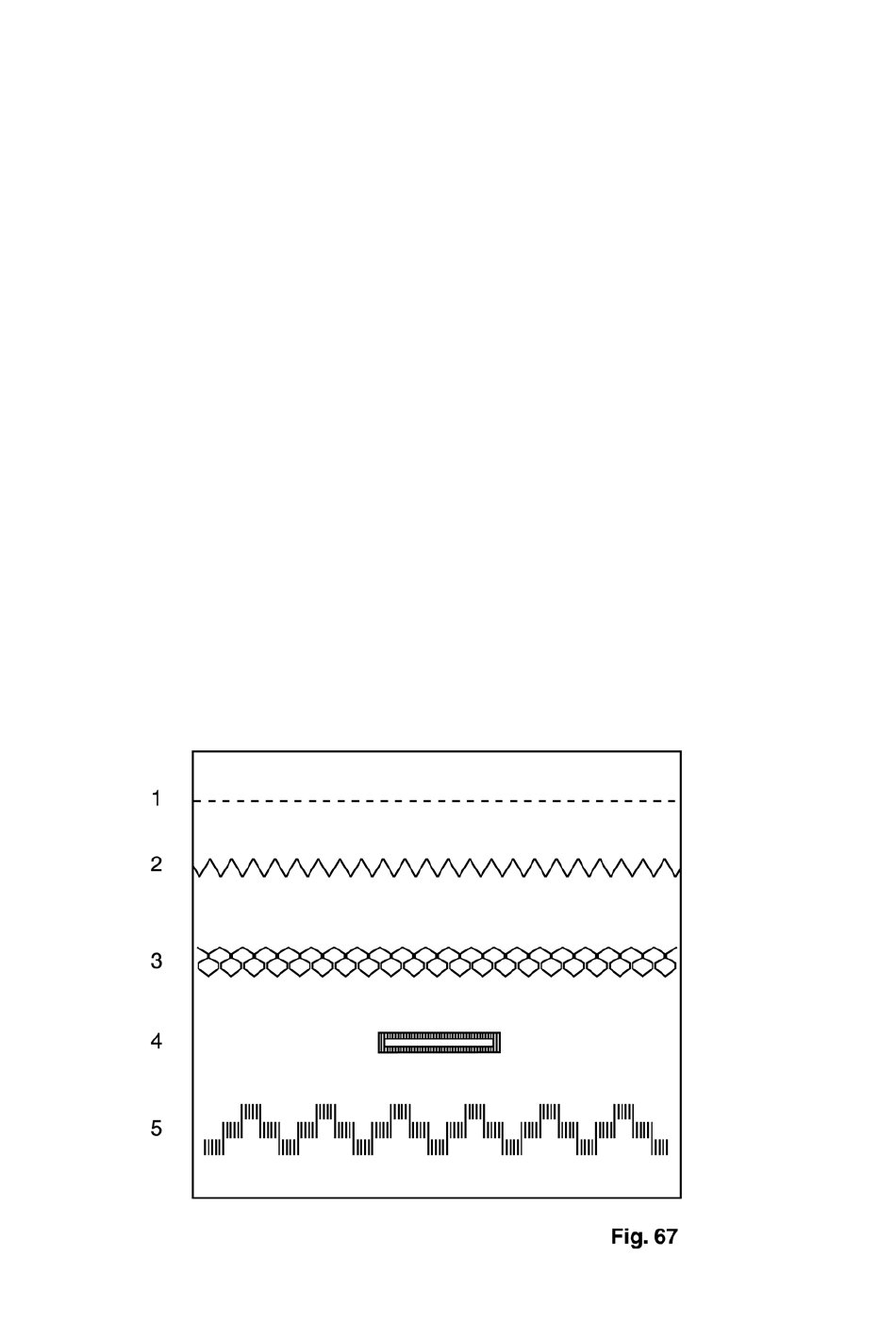

When all sewing checks are completed and the machine sews perfectly, a sewing sample is to be made.
This sewing sample should contain the most important stitch patterns, which can be sewn on a repaired
machine (fig. 67).
If the customer has special requirements, these should appear on a separate sewing sample.
The following is a sewing sample from the PFAFF expression 2044
Stitch program
1 Straight stitch
2 Zigzag stitch
3 Honeycomb stitch
4 Linen buttonhole
5 Fancy stitch
54
No. Stitch width
01
03 6.0
19 6.0
09 4.5
56 6.0
Stitch length
or pattern length
2.5
2.0
2.0
1
0.30
Presser foot no.
Zigzag foot "0"
Zigzag foot "0"
Zigzag foot "0"
Buttonhole foot "5"
Fancy stitch foot "2"
