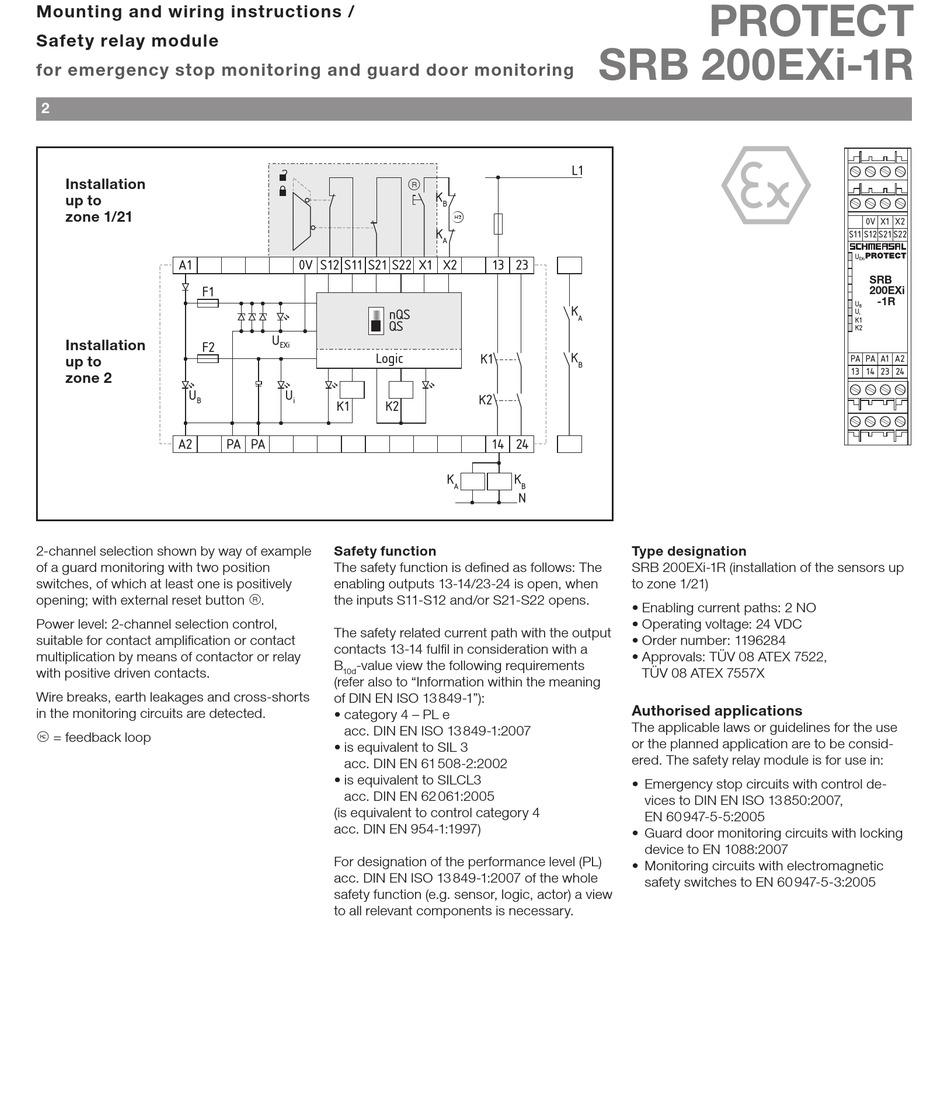

Mounting and wiring instructions /
Safety relay module
for emergency stop monitoring and guard door monitoring
2
Installation
up to
zone 1/21
A1
F1
Installation
F2
up to
zone 2
U
B
A2
2-channel selection shown by way of example
of a guard monitoring with two position
switches, of which at least one is positively
opening; with external reset button J.
Power level: 2-channel selection control,
suitable for contact amplification or contact
multiplication by means of contactor or relay
with positive driven contacts.
Wire breaks, earth leakages and cross-shorts
in the monitoring circuits are detected.
S = feedback loop
0V S12
S11 S21 S22
nQS
QS
U
EXi
Logic
U
i
K1
K2
PA PA
Safety function
The safety function is defined as follows: The
enabling outputs 13-14/23-24 is open, when
the inputs S11-S12 and/or S21-S22 opens.
The safety related current path with the output
contacts 13-14 fulfil in consideration with a
B
-value view the following requirements
10d
(refer also to "Information within the meaning
of DIN EN ISO 13 849-1"):
category 4 – PL e
acc. DIN EN ISO 13 849-1:2007
is equivalent to SIL 3
acc. DIN EN 61 508-2:2002
is equivalent to SILCL3
acc. DIN EN 62 061:2005
(is equivalent to control category 4
acc. DIN EN 954-1:1997)
For designation of the performance level (PL)
acc. DIN EN ISO 13 849-1:2007 of the whole
safety function (e.g. sensor, logic, actor) a view
to all relevant components is necessary.
L1
J
K
B
S
K
A
X1 X2
13
23
K
A
K
K1
B
K2
14 24
K
K
A
B
N
PROTECT
SRB 200EXi-1R
Type designation
SRB 200EXi-1R (installation of the sensors up
to zone 1/21)
Enabling current paths: 2 NO
Operating voltage: 24 VDC
Order number: 1196284
Approvals: TÜV 08 ATEX 7522,
TÜV 08 ATEX 7557X
Authorised applications
The applicable laws or guidelines for the use
or the planned application are to be consid-
ered. The safety relay module is for use in:
Emergency stop circuits with control de-
vices to DIN EN ISO 13 850:2007,
EN 60 947-5-5:2005
Guard door monitoring circuits with locking
device to EN 1088:2007
Monitoring circuits with electromagnetic
safety switches to EN 60 947-5-3:2005
0V X1 X2
S11 S12 S21 S22
U
EXi
SRB
200EXi
-1R
U
B
U
i
K1
K2
PA PA A1 A2
13 14 23 24
