8
CLICK!
6
7
26
9 10

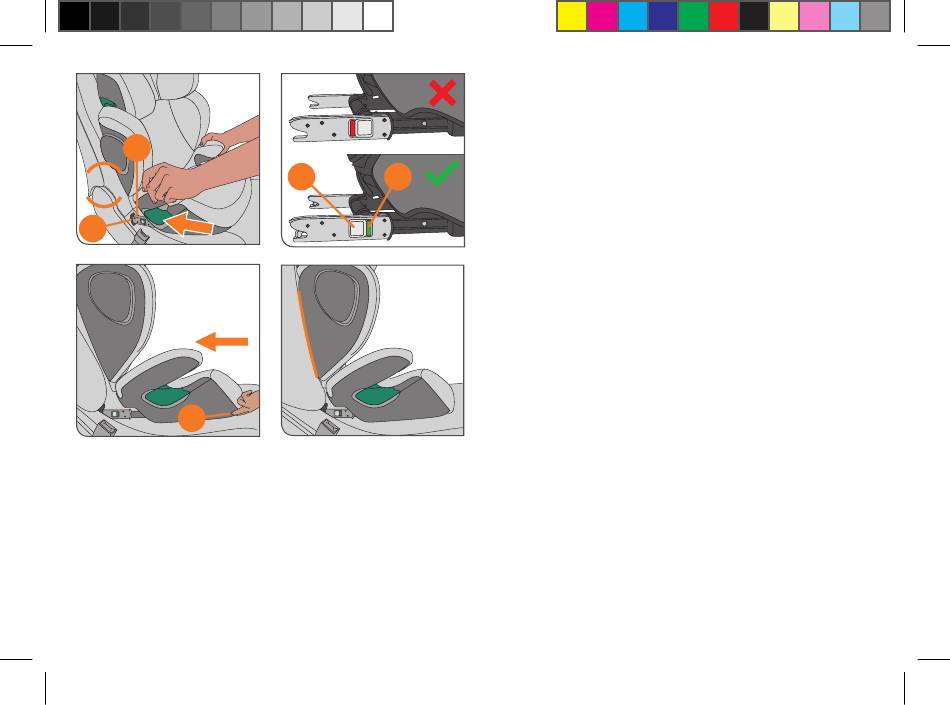

• Push the two ISOFIX locking arms (8) into the ISOFIX
anchorage points (6) until these lock into place with an
audible "CLICK."
• Ensure that the car seat is secure by trying to pull it out.
• The green safety indicator (10) must now be clearly visible
on the two release buttons (9).
• Use the ISOFIX adjustment handle (7) and push the car
seat against the vehicle seat.
• Always ensure that the entire surface of the backrest of
the car seat is placed fully against the backrest of the
vehicle seat.

REMOVING THE CAR SEAT FROM THE VEHICLE

Perform the installation steps in the reverse order.
• Unlock the ISOFIX locking arms on both sides by pushing
the release buttons and pulling them back simultaneously.
• Pull the car seat out of the ISOFIX anchorage points.
• Rotate the ISOFIX locking arms 180°.
• Operate the adjustment button of the car seat and push the
connectors in as far as they will go.
NOTE! By folding in the ISOFIX locking arms, you are not just
protecting the vehicle seat but also the ISOFIX locking arms
of the ISOFIX system from dirt and damage.
