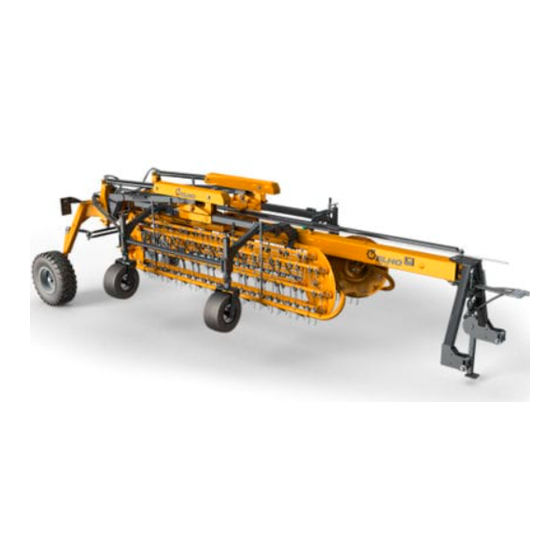

Elho Rake
V-Twin 750, Series 10.2-10.5
V-Twin 750 S, Series 10.2-10.5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V-Twin 750 Series and is the answer not in the manual?

Questions and answers

Related Manuals for elho V-Twin 750 Series

Summary of Contents for elho V-Twin 750 Series

  • Page 1 Elho Rake V-Twin 750, Series 10.2-10.5 V-Twin 750 S, Series 10.2-10.5...

  • Page 3: Table Of Contents

    Rev. 0 Document ID: 941013 Revision date: 28.02.16 CONTENTS Language: GB EC Declaration of Conformity ..............4 Limited warranty ..................5 Identification of machine ................7 1. SAFETY INSTRUCTIONS ..............8 1.1. Intended use .................. 9 1.2. Tractor and machine noise ............9 1.3.

  • Page 4: Ec Declaration Of Conformity

    Product Development Manager, CTO Industrivägen 6 68910 Bennäs Finland We declare under our sole responsibility that the following product: ELHO V-TWIN 750 Rake Series 10.2-10.5 is in conformity with the: 2006/42/EC and the following harmonized standards and technical specifications have been...

  • Page 5: Limited Warranty

    A complete Warranty Application shall in any case be sent to ELHO within 30 days from the date when the damage was discovered or should reasonably have been discovered; or else the warranty claim will not be accepted.
  • Page 6 4.7 Product improvement ELHO has a policy of continuous product improvement. ELHO reserves the right to develop, improve and alter the design of any ELHO product without assuming any obligation to modify any ELHO product previously manufactured. 4.8 Consequential damage...

  • Page 7: Identification Of Machine

    IDENTIFICATION OF MACHINE The identification of the machine is found from the plate on the machine frame. This identification data have to be given by ordering of spare parts, by warranty claims etc. Write the numbers from your machine in the field below. This will make spare part orders more easy for you in the future.

  • Page 8: Safety Instructions

    The user shall wear suitable close fitting clothing and avoid wearing other items that could increase the risk of get stuck in the machine. The ELHO V-Twin is hydraulic driven. Take therefore particular care before any work on the machine as there might be full power also behind stopped or blocked rotors!!! Before you leave the tractor cab the tractor engine has to be fully stopped and the parking brake engaged.

  • Page 9: Intended Use

    1.1. Intended use The ELHO V-Twin 750 Rake is designed solely for use in raking agricultural hay or grass or straw crop into a windrow. The use for other purpose is strongly forbidden. 1.2. Tractor and machine noise EC Directive 86-1888-EEC and UK Noise at Work Regulations 1989 place responsibilities on employers and employees to assess and control noise at the workplace.

  • Page 10: Safety Signs On The Machine

    1.5. Safety signs on the machine On the machine there are some safety signs to make you aware of certain hazards, which have not been possible to remove by design or by guarding. Stop the engine and remove the start key. Before you remove the marked cover, read this user manual.

  • Page 11: Safety Signs Positions On The Machine

    This sign reminds you of that the ELHO V-Twin are hydraulic driven. Take therefore particular care before any work on the machine as there might be full power also behind stopped or blocked rotors. This sign inform you about the correct connection of the hydraulic hoses.

  • Page 13: Technical Information

    We reserve the right to alter specification details, dimensions, etc., without notice or liability. All data stated above is approximate. As ELHO rakes are supplied to many countries the detail specification may vary refer to local price list for specification offered and optional extras.

  • Page 14: Dimensions Of V-Twin 750

    2.3. Dimensions of V-Twin 750 Lifting of the machine The lifting points are marked with labels on the machine.

  • Page 15: Starting Up A New Machine

    ELHO warranty. The ELHO V-Twin 750 is connected to the 3-P linkage of the tractor (Kat II ). See § 5 Connecting to the tractor • Ensure that the machine is correct assembled and not damaged.
  • Page 16 Stop the tractor!! Check that the rake tines are at least 5 cm free from ground. Check by rotating by hand, that the baskets are free to rotate, and that no tines, tine bars or tine guides are bent or damaged. The basket wheel should rotate freely with a minimum of noise.

  • Page 17: Assembly

    4. ASSEMBLY The ELHO V-Twin rakes are generally delivered assembled and tested from the factory. Therefore no assembly work should be needed. Just check that the machine is delivered without transport damages. It’s important to check the received machine compared to the order concerning the equipment’s.

  • Page 18: Connecting And Disconnecting To The Tractor

    Connect the hydraulic hoses. Start with ensuring a good connection for the free return line. The ELHO V-Twin rake is equipped with hydraulic couplings according to ISO 5676. It is unfortunately common that hydraulic quick-release couplings on different brands do not always suit each other to 100% although they NOTICE are made to the same nominal size and mechanically fit in each other.

  • Page 19: Adjustments

    6. ADJUSTMENTS 6.1. Raking height adjustment Normal setting is tine end 5 cm above the ground. Keep the setting as high as possible while still picking up crop. To set the initial raking height: 1. Open the rake on a level firm surface. 2.

  • Page 20: Swath Width

    6.3. Swath width The swath width is set by crank E. Adjust left and right hand baskets to equal width. Do not mowe the baskets more in than that the rubber bumper still is outside the elbow F. Risk of interference between the hydraulic motor and the frame.

  • Page 21: Basket Speed

    6.6. Basket speed The basket speed is adjusted with the oil flow divider A. Normal basket speed is 80 - 100rpm. The slower the speed, the more gentle raking. The rotation speed is set from the hand knob A as the picture show.

  • Page 22: Transport

    Reduce the speed when turning and driving on uneven roads. Too high speed can create big chock loads to the construction, which might result in damages to the wheel arms and frame (not covered by the warranty). The maximum road speed for the ELHO V-Twin rake is 30 km/h.

  • Page 23: Maintenance

    8. MAINTENANCE To ensure a long and trouble free use of the machine, keep the machine clean and follow the maintenance instructions below. Before you perform maintenance, stop the tractor engine, engage the parking brake and remove the start key from the tractor. WARNING! Any hydraulic movements from the tractor are not permitted! Check regularly all bolts and nuts and re-tighten when necessary.

  • Page 24: Lubrication Scheme

    8.1. Lubrication scheme Grease daily with god quality grease 1. Basket front hub 2 pcs. All tine tube bearings 28 pcs. 2. Basket shaft articulations 4 pcs. 3. Caster wheel swivels 4 pcs. Grease every 20 hours 4. Basket centre swivel point 2 pcs.

  • Page 25: Maintenance Of Hydro Balance

    8.2. Maintenance of Hydro Balance WARNING As the Hydro Balance system might be under pressure, always remove the system pressure before maintenance or repair. To remove the system pressure: 1. Connect only the hose nr. 5 (basket lift) to the tractor hydraulic. 2.

  • Page 26: Optional Equipment

    9. OPTIONAL EQUIPMENT 9.1. Rear light kit 114132 (Standard in several countries) The rear light kit is bolted to the foreseen mounting holes in the upper surface of the rear frame according picture below. The electrical connection is according ISO standard 1724.

  • Page 27: Content Of The Vt 750 S-Kit

    9.2.2 Content of the VT 750 S-kit To be able to perform the above described operation, the main components of the S-kit are: A. Hydraulic control unit B. Steering rod with wheel cylinder and limiter. C. Left hand bascet compensator cylinder. D.

  • Page 28: Transport Position

    • Set the machine in work position as normal. • Pull the rope connected to the hydraulic control unit of the VT 750 S-kit to open the hydraulic connections to the wheel cylinder and the left hand basket compensator cylinder. Operate the tractor external hydraulic valve a second time in direction to open the baskets.

  • Page 29: Hydraulic Pump Unit For Rotor Drive

    9.3. Hydraulic pump unit for rotor drive Order nr: 114151 The hydraulic pump unit for the rotor drive consist of a tank, a gearbox with an hydraulic pump as well as necessary valves. The unit is mounted as in fig. At A there is already provided holes for the mounting bolts in the attachment frame.

  • Page 30: Rake Basket Holding Valve Kit

    9.4. Rake basket holding valve kit Order Nr. 114125 The rake basket holding valve kit make it possible to use the baskets individually. It is particular useful to; - reposition a single short swath (A), to be able to join it with the next pass, and so reduce driving damages of an heavy harvesting machine.
  • Page 39 Oy El-Ho Ab Industrivägen 6 68910 BENNÄS FINLAND Phonenr: +358 6 788 8000 Telefax: +358 6 788 8048 Rev. 0 Email: elho@elho.fi Document ID: 941013 www.elho.fi...
