4.
If applicable, remove the vertical cable guide from each side of the frame position in
which the splice module is being installed.
5.
Place the splice module in its assigned position in the frame.
6.
Insert two #12-24 screws supplied through the mounting bracket at each side of the
chassis and in the frame as shown in
7.
Install optional vertical cable guides or reinstall the removed guides (see
8.
Re-attach the front cover.
#12-24 SCREW
(2 PLACES - BOTH SIDES)

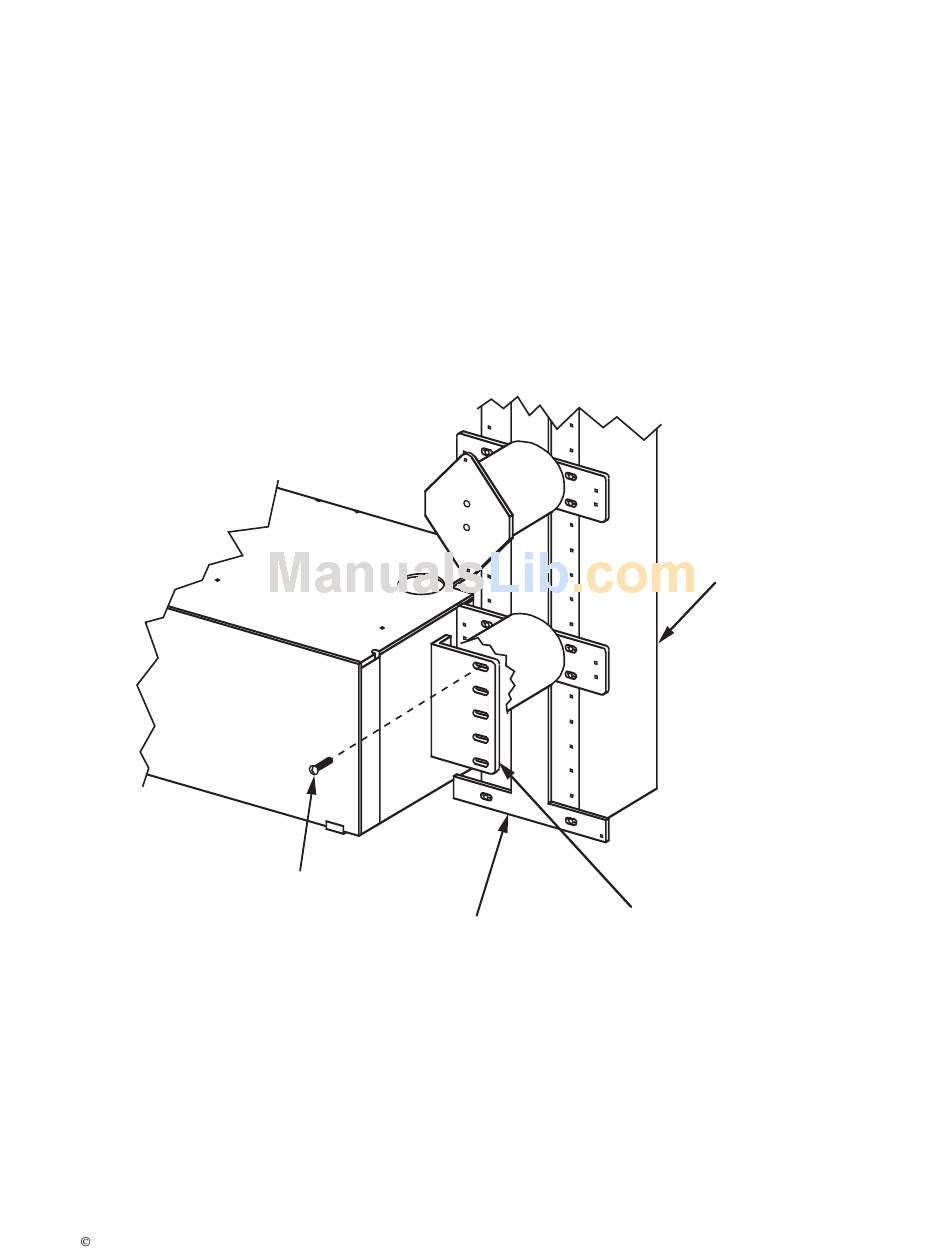

Figure 4. Splice Module Installation in an Equipment Rack
Page 8
1998, ADC Telecommunications, Inc.
Figure
4.
INTERBAY
MANAGEMENT
PANEL
Figure
5).
FRAME
MOUNTING
BRACKET
1216-A
