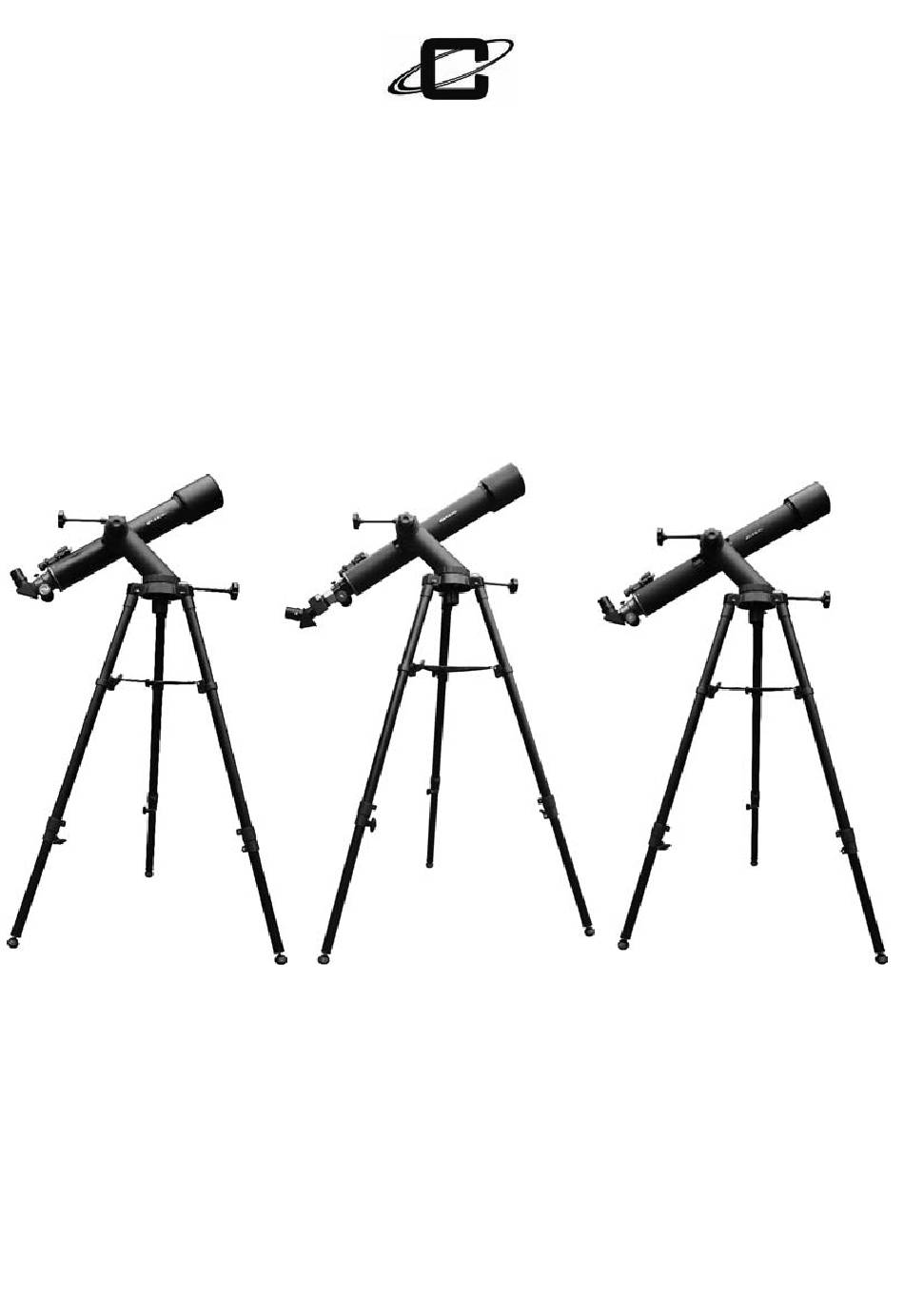

- Page 1 C A S S I N I ™ TRACKER REFRACTOR TELESCOPE SERIES MODEL #: #C-60090TR #C-72080TR #C-80072TR COSMO BRANDS INC. WWW.COSMOSOPTICS.COM...
- Page 3 CHROMATIC ABERRATION PRODUCED TO PRECISE SPECIFICATIONS . PRIOR TO USING YOUR NEW CASSINI TELESCOPE PLEASE READ THE FOLLOWING SETUP AND USAGE INSTRUCTIONS IT IS IMPORTANT TO PROPERLY ASSEMBLE YOUR TELESCOPE IN ORDER TO ALLOW IT TO FUNCTION PROPERLY . CONSIDER...
- Page 4 GETTING THE MOST FROM YOUR TELESCOPE TAKE THE TIME TO BECOME FAMILIAR WITH YOUR NEW TELESCOPE LEARN THE NAMES OF THE VARIOUS PARTS WHERE THEY ARE LOCATED AND THEIR FUNCTION IT IS THE BEST TO PERFORM THESE FUNCTIONS DURING THE DAY TIME . WHEN SETTING UP FOR A VIEWING SESSION PLACE THE TELESCOPE IN AN AREA SHELTERED FROM THE WIND IF POSSIBLE...
- Page 5 ACCESSORIES FULLY ADJUSTABLE ALUMINUM TRIPOD MODELS EYEPIECES (DIFFERENT IN EACH P/N TELESCOPE) TAKE C-80072TR FOR EXAMPLE: 25MM = 32X LOWEST POWER/BRIGHTEST IMAGE MODELS ö 10MM PL SSL = 80X HIGHER POWER/LESS BRIGHTEST 3X BARLOW USED TO INCREASE THE POWER OF ANY GIVEN C-80072TR EYEPIECE BY 300%.
- Page 6 ACCESSORIES VERTICAL ADJUSTMENT. MODELS HORIZONTAL ADJUSTMENT. MODELS CASSINI CD-ROM STELLARIUM FROM ANY LOCATION YOU CAN SEE THE MODELS SKY AT IT APPEARS AT ANY TIME OF DAY, OR EVEN IN THE FUTURE. NOTE: SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
-
Page 7: Assembly Instructions
C A S S I N I ™ TRACKER REFRACTOR TELESCOPE SERIES ASSEMBLY INSTRUCTIONS CAUTION: NEVER POINT YOUR TELESCOPE AT THE SUN. VIEWING THE SUN WITH THIS TELESCOPE OR EVEN THE UNAIDED EYE CAN RESULT IN BLINDNESS OR OTHER SERIOUS EYE DAMAGE. 1 REMOVE PRE ASSEMBLED TRIPOD 2 ADJUST TRIPOD TO PROPER HEIGHT BY LOOSENING ADJUSTING... - Page 8 C A S S I N I ™ TRACKER REFRACTOR TELESCOPE SERIES 6 REMOVE ELECTRONIC MARS EYE FINDER 7 USE THE TWO THUMB SCREWS TO POSITION THE ELECTRONIC MARS-EYE FINDER ON THE TELESCOPE TUBE. FOR ADDITIONAL HELP SEE THE PAGE IN YOUR INSTRUCTION BOOK FOR MARS-EYE ELECTRONIC FINDER MOUNTING AND ALIGNMENT.
- Page 9 FEATURES OF TRACKER REFRACTOR TELESCOPE C-60090TR VERTICAL MICRO VERTICAL SUN SHADE LOCKING ADJUSTMENT KNOB MARS EYE FINDER EYE PIECE OPTICAL TUBE TRACKER MOUNT MICRO FOCUSER HORIZONTAL ERECT IMAGE PRISM ADJUSTMENT AZIMUTH LOCKING KNOB EYEPIECES KF25MM PL10MM ACCESSORY TRAY 3X BARLOW FULLY ADJUSTABLE ALUMINUM TRIPOD TRIPOD LOCKING KNOB...
- Page 10 FEATURES OF TRACKER REFRACTOR TELESCOPE C-72080TR OPTICAL TUBE SUN SHADE VERTICAL LOCKING MICRO VERTICAL KNOB ADJUSTMENT MARS EYE FINDER TRACKER MOUNT EYE PIECE MICRO HORIZONTAL ADJUSTMENT FOCUSER 2X FLIP BARLOW / AZIMUTH LOCKING KNOB ERECT IMAGE PRISM EYEPIECES EYEPIECES ACCESSORY TRAY KF25MM KF25MM PL10MM...
- Page 11 FEATURES OF TRACKER REFRACTOR TELESCOPE C-80072TR OPTICAL TUBE SUN SHADE VERTICAL LOCKING MICRO VERTICAL KNOB ADJUSTMENT MARS EYE FINDER EYE PIECE TRACKER MOUNT MICRO HORIZONTAL ADJUSTMENT FOCUSER EYEPIECES ERECT IMAGE PRISM AZIMUTH LOCKING KNOB KF25MM PL10MM ACCESSORY TRAY 3X BARLOW FULLY ADJUSTABLE ALUMINUM TRIPOD TRIPOD LOCKING KNOB...
- Page 12 REFRACTING TELESCOPE ERECT IMAGE MODEL MODEL EYEPIECES BARLOW FOCUSER PRISM SPECIFICATION 1.25 INCH METAL KF25MM C-60090TR 600×90MM PRISM 3x BARLOW FOCUSER PL10MM 2X FLIP BARLOW / KF25MM 1.25 INCH METAL ERECT IMAGE 720×80MM PRISM C-72080TR PL10MM FOCUSER PRISM KF25MM 1.25 INCH METAL 800×72MM C-80072TR 3x BARLOW...
- Page 13 HOW TO USE EYEPIECES & ACCESSORIES PROPER PLACEMENT OF THE EYEPIECES AND ACCESSORIES IS IMPORTANT IN ORDER TO ASSURE EASY OPERATIONS AND CLEAR VIEWING. PLEASE USE THE ACCESSORIES IN THE FOLLOWING ORDER. BY DOING THIS, YOU WILL BETTER UNDERSTAND THE IMPACT EACH INDIVIDUAL ACCESSORY HAS ON THE FUNCTION OF YOUR TELESCOPE.
- Page 14 MARS EYE ELECTRONIC FINDER & MOUNTING ALIGNMENT WWW.CASSINITELESCOPES.COM/CVIDEO/MARSEYE01 VIDEO.HTML TO MOUNT : 1 REMOVE MARS EYE ELECTRONIC FINDER FROM BOX 2 LOOSEN THUMB SCREWS ON SIDE OF FINDER AND SLIDE FINDER ONTO DOVETAIL MOUNT LOCATED AT TOP OF MAIN TELESCOPE TUBE. 3 TIGHTEN THUMB SCREWS TO CHECK ALIGNMENT WITH MAIN TELESCOPE IMPORTANT 1 THE MARS EYE ELECTRONIC FINDER IS NOT PRE SET AT FACTORY THE FOLLOWING...
- Page 15 C A S S I N I TRACKER MOUNT LOCATING OBJECT BEFORE LOCATING NEW OBJECT, RE-ALIGN YOUR VERTICAL AXIS VERTICAL LOCKING KNOB A. LOOSEN VERTICAL LOCKING KNOB ENOUGH TO WHERE TELESCOPE CAN BE MANUALLY ADJUSTED UP AND DOWN. AZIMUTH LOCKING KNOB B.
- Page 16 C A S S I N I TRACKER MOUNT LOCATING OBJECT D. USING THE LOWEST POWER EYEPIECE (25 MM), LOOK THROUGH THE TELESCOPE TO SEE YOUR TARGET OBJECT. MICRO VERTICAL ADJUSTMENT MICRO HORIZONTAL ADJUSTMENT E. IF THE OBJECT IS NOT CENTERED IN THE EYEPIECE, USE THE TOP FLEX CABLE (MICRO VERTICAL ADJUSTMENT ) FOR PRECISE UP AND DOWN MOVEMENTS, AND THE BOTTOM FLEX CABLE (MICRO HORIZONTAL ADJUSTMENT) FOR PRECISE LEFT AND RIGHT MOVEMENTS TO CENTER YOUR TARGET OBJECT IN THE EYEPIECE.
- Page 17 C A S S I N I TRACKER MOUNT LOCATING OBJECT F. AS YOU MAKE UP/DOWN (VERTICAL) MICRO ADJUSTMENTS, BE CAREFUL TO MAKE SURE THE VERTICAL ADJUSTMENT GUIDE LINES DO NOT EXCEED THEIR PARAMETERS. VERTICAL ADJUSTMENT GUIDE LINES FIGURE1. G. WHEN THE GUIDE LINES APPEAR AS IN THE PICTURE BELOW, (FIGURE 2) RE-SET THE VERTICAL ADJUSTMENT USING THE TOP FLEX CABLE (MICRO VERTICAL ADJUSTMENT) TO MATCH FIGURE 1, THEN REPEAT STEP A.
