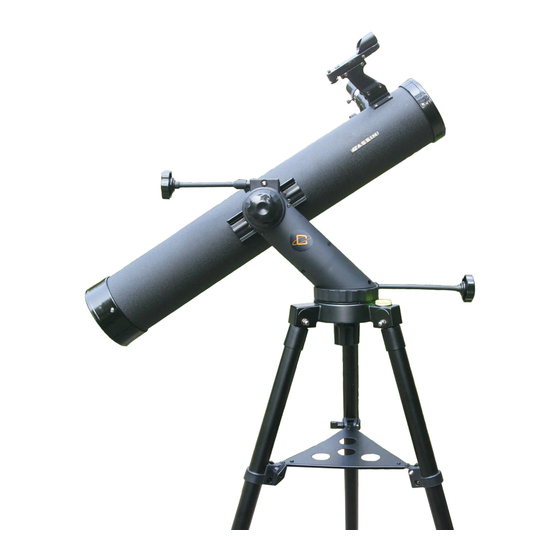

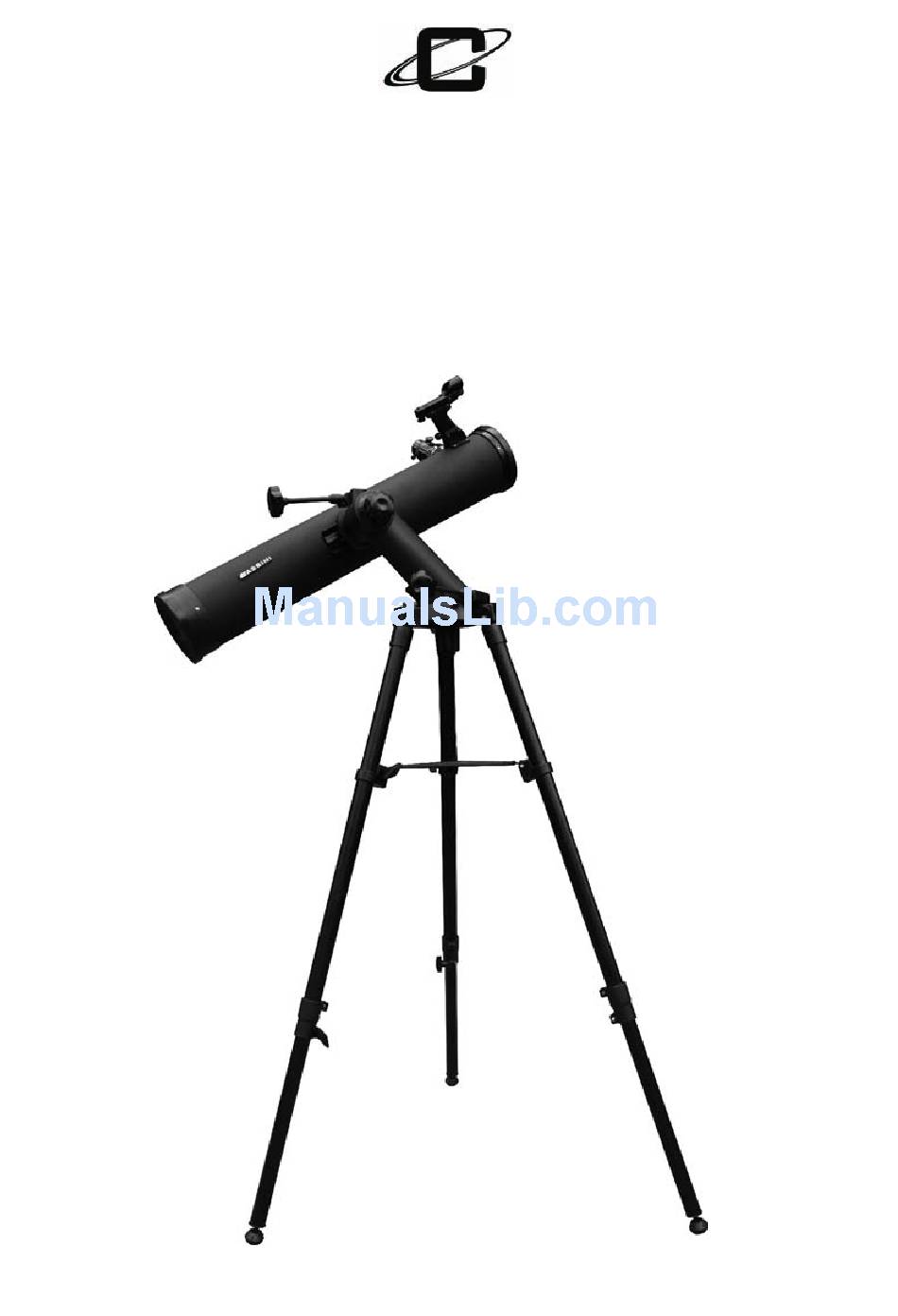

- Page 1 C A S S I N I ™ TRACKER A STRONOMICAL REFLECTOR T ELESCOPE SERIES # C-80080TR #C-1100102TR #C-1000120TR # C-1000120TREF #C-900135TR COSMO BRANDS INC. WWW.COSMOSOPTICS.COM...
- Page 3 THIS TELESCOPE BEEN PRODUCED TO PRECISE SPECIFICATIONS. PRIOR TO USING YOUR NEW CASSINI TELESCOPE PLEASE READ THE FOLLOWING SETUP AND USAGE INSTRUCTIONS IT IS IMPORTANT TO PROPERLY ASSEMBLE YOUR TELESCOPE IN ORDER TO ALLOW IT TO FUNCTION PROPERLY . USE THE TELESCOPE FOR...
- Page 4 GETTING THE MOST FROM YOUR TELESCOPE TAKE THE TIME TO BECOME FAMILIAR WITH YOUR NEW TELESCOPE LEARN THE NAMES OF THE VARIOUS PARTS WHERE THEY ARE LOCATED AND THEIR FUNCTION IT IS THE BEST TO PERFORM THESE FUNCTIONS DURING THE DAY TIME . WHEN SETTING UP FOR A VIEWING SESSION PLACE THE TELESCOPE IN AN AREA SHELTERED FROM THE WIND IF POSSIBLE...
- Page 5 ACCESSORIES FULLY ADJUSTABLE ALUMINUM TRIPOD EYEPIECES(DIFFERENT IN EACH P/N TELESCOPE) TAKE C-80080TR FOR EXAMPLE: 25MM = 32X LOWEST POWER/BRIGHTEST IMAGE ö 10MM PL SSL = 80X HIGHER POWER/LESS BRIGHTEST 3X BARLOW . USED TO INCREASE THE POWER OF ANY GIVEN EYEPIECE BY 300%. FOR...
- Page 6 ACCESSORIES VERTICAL ADJUSTMENT. HORIZONTAL ADJUSTMENT. CASSINI CD-ROM STELLARIUM FROM ANY LOCATION YOU CAN SEE THE SKY AT IT APPEARS AT ANY TIME OF DAY, OR EVEN IN THE FUTURE. # C-1000120TREF ONLY ELECTRONIC FOCUSER IMAGE STABILIZING ELECTRONIC FOCUSER WITH HELICAL &...
-
Page 7: Assembly Instructions
CASSINI REFRACTOR TELESCOPE ASSEMBLY INSTRUCTIONS CAUTION: NEVER POINT YOUR TELESCOPE AT THE SUN. VIEWING THE SUN WITH THIS TELESCOPE OR EVEN THE UNAIDED EYE CAN RESULT IN BLINDNESS OR OTHER SERIOUS EYE DAMAGE. 1 REMOVE PRE ASSEMBLED TRIPOD 2 ADJUST TRIPOD TO PROPER HEIGHT BY LOOSENING ADJUSTING AND TIGHTENING THE LOCKING KNOBS. - Page 8 6. LOOSEN SCREWS ON MARS-EYE ELECTRONIC FINDER AND SLIDE ONTO BRACKET. TIGHTEN ATTACHMENT SCREWS. ( PLEASE SEE FURTHER INSTRUCTIONS ON MARS-EYE FINDER). 7. ATTACH VERTICAL ADJUSTMENT TO TRACKER MOUNT. 8. ATTACH HORIZONTAL ADJUSTMENT TO TRACKER MOUNT. 9. REMOVE CAPS WHEN TELESCOPE IS IN USE, AND REPLACE WHEN NOT IN USE.
- Page 9 CASSINI REFLECTING TELESCOPE ELECTRONIC MARS-EYE FINDER EYE PIECE TO SKY HELICAL RACK & PINION FRONT FOCUSING MICRO VERTICAL ADJUSTMENT VERTICAL LOCKING KNOB OPTICAL TUBE TRACKER MOUNT MICRO BACK HORIZONTAL ADJUSTMENT AZIMUTH LOCKING KNOB FULLY ADJUSTABLE ALUMINUM TRIPOD ACCESSORY TRAY EYEPIECES...
- Page 10 C A S S I N I ™ TRACKER A STRONOMICAL REFLECTOR T ELESCOPE SERIES MODEL MODEL EYEPIECES BARLOW FOCUSER SPECIFICATION KF25MM 1.25 INCH METAL C-80080TR 800×80MM 3x BARLOW PL10MM FOCUSER KF25MM 1.25 INCH METAL C-1100102TR 1100×102MM 3x BARLOW PL10MM FOCUSER KF25MM 1.25 INCH METAL...
- Page 11 REFLECTING TELESCOPE HOW TO USE EYEPIECES & ACCESSORIES PROPER PLACEMENT OF THE EYEPIECES AND ACCESSORIES ARE IMPORTANT IN ORDER TO ASSURE EASY OPERATIONS AND CLEAR VIEWING. PLEASE CONSIDER USING YOUR ACCESSORIES IN THE FOLLOWING ORDER. BY DOING THIS YOU WILL BETTER UNDERSTAND THE IMPACT EACH INDIVIDUAL ACCESSORY HAS ON THE FUNCTION OF YOUR TELESCOPE.
- Page 12 HOW TO USE EYEPIECES & ACCESSORIES # C-1000120TREF ONLY PLEASE CONSIDER USING YOUR ACCESSORIES IN THE FOLLOWING ORDER. BY DOING THIS YOU WILL BETTER UNDERSTAND THE IMPACT EACH INDIVIDUAL ACCESSORY HAS ON THE FUNCTION OF YOUR TELESCOPE. 1. FOCUSING TUBE - TURN FOCUSING KNOB (LEFT SIDE) TOWARD THE TELESCOPE UNTIL IT WILL GO NO FURTHER.
- Page 13 MARS EYE ELECTRONIC FINDER & MOUNTING ALIGNMENT WWW.CASSINITELESCOPES.COM/CVIDEO/MARSEYE01 VIDEO.HTML TO MOUNT : 1 REMOVE MARS EYE ELECTRONIC FINDER FROM BOX 2 LOOSEN THUMB SCREWS ON SIDE OF FINDER AND SLIDE FINDER ONTO DOVETAIL MOUNT LOCATED AT TOP OF MAIN TELESCOPE TUBE. 3 TIGHTEN THUMB SCREWS TO CHECK ALIGNMENT WITH MAIN TELESCOPE IMPORTANT 1 THE MARS EYE ELECTRONIC FINDER IS NOT PRE SET AT FACTORY THE FOLLOWING...
- Page 14 HOW TO USE THE CASSINI IMAGE STABILIZING ELECTRONIC FOCUSER # C-1000120TREF ONLY 1 PUT THREE AAA BATTERIES INTO INTO BATTERY HOLDER 2 INSERT BATTERY HOLDER INTO ELECTRIC FOCUSER COMPARTMENT. 3 CLOSE THE COVER 4 A TIGHTEN THE RIGHT CLUTCH KNOB THE FOCUSER ELECTRONICALLY.
- Page 15 HOW TO USE THE CASSINI IMAGE STABILIZING ELECTRONIC FOCUSER # C-1000120TREF ONLY 7 USE WIRELESS CONTROL BOX TO CONTROL THE ELECTRIC FOCUSER. (MUST AIM TOWARD IR RECEIVER) IR RECEIVER CAUTION: PLEASE REPLACE THE BATTERIES WHEN YOU SEE THE INDICATOR LIGHT OF ELECTRIC FOCUSER FLASHING CONTINUOUSLY, OR WHEN THE FOCUSING BECOMES IRREGULAR.
- Page 16 C A S S I N I TRACKER MOUNT LOCATING OBJECT BEFORE LOCATING NEW OBJECT, RE-ALIGN YOUR VERTICAL AXIS VERTICAL LOCKING KNOB A. LOOSEN VERTICAL LOCKING KNOB ENOUGH TO WHERE TELESCOPE CAN BE MANUALLY ADJUSTED UP AND DOWN. AZIMUTH LOCKING KNOB B.
- Page 17 C A S S I N I TRACKER MOUNT LOCATING OBJECT D. USING THE LOWEST POWER EYEPIECE (25 MM), LOOK THROUGH THE TELESCOPE TO SEE YOUR TARGET OBJECT. MICRO VERTICAL ADJUSTMENT MICRO HORIZONTAL ADJUSTMENT E. IF THE OBJECT IS NOT CENTERED IN THE EYEPIECE, USE THE TOP FLEX CABLE (MICRO VERTICAL ADJUSTMENT ) FOR PRECISE UP AND DOWN MOVEMENTS, AND THE BOTTOM FLEX CABLE (MICRO HORIZONTAL ADJUSTMENT) FOR PRECISE LEFT AND RIGHT MOVEMENTS TO CENTER YOUR TARGET OBJECT IN THE EYEPIECE.
- Page 18 C A S S I N I TRACKER MOUNT LOCATING OBJECT F. AS YOU MAKE UP/DOWN (VERTICAL) MICRO ADJUSTMENTS, BE CAREFUL TO MAKE SURE THE VERTICAL ADJUSTMENT GUIDE LINES DO NOT EXCEED THEIR PARAMETERS. VERTICAL ADJUSTMENT GUIDE LINES FIGURE 1. G.
