Summary of Contents for cassini C-80

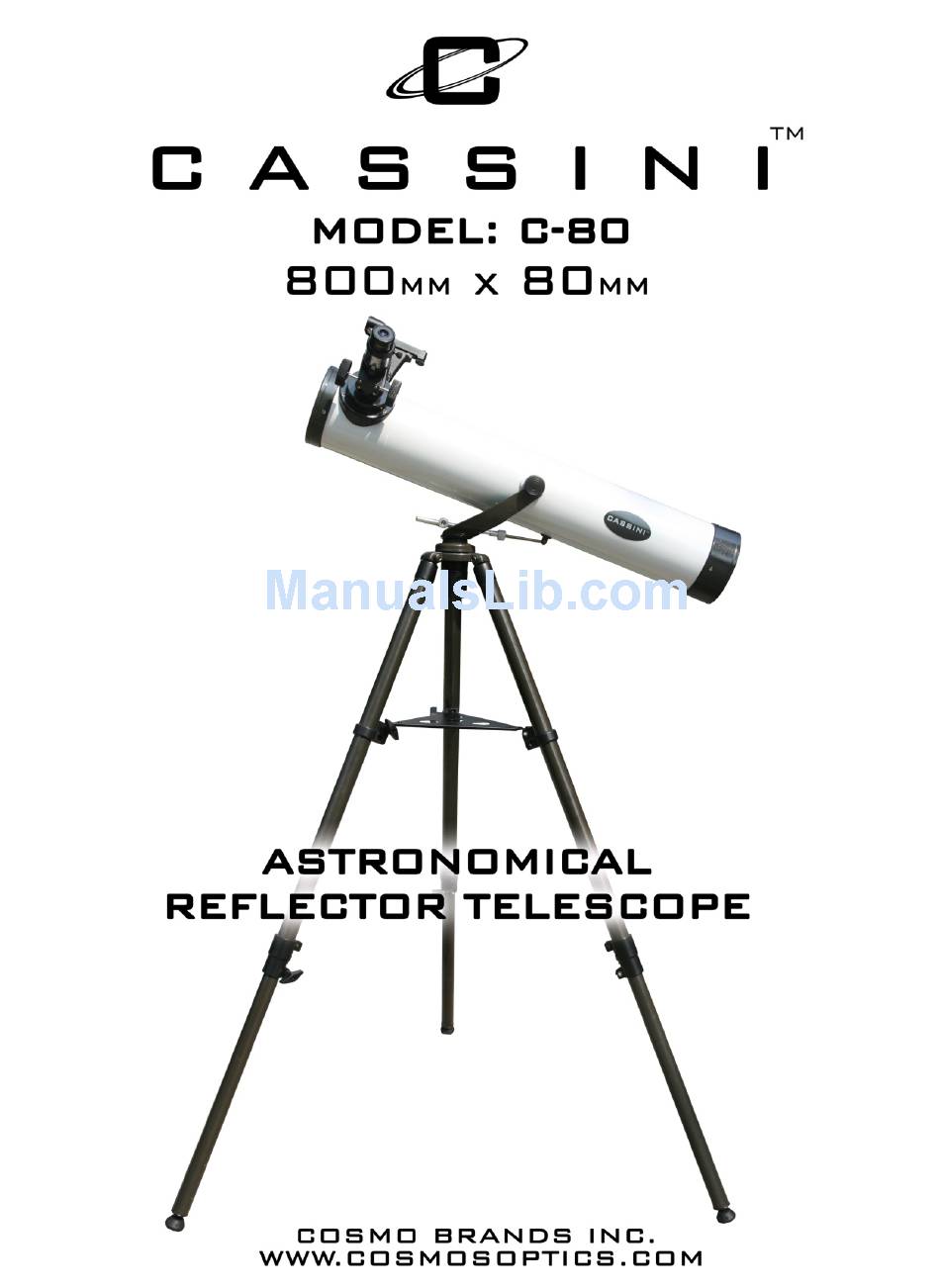

- Page 1 FS-80 Instructions...
- Page 2 INTRODUCTION THIS TELESCOPE HAS BEEN PRODUCED TO PRECISE SPECIFICATIONS. PRIOR TO USING YOUR NEW CASSINI TELESCOPE, PLEASE READ THE FOLLOWING SETUP AND USAGE INSTRUCTIONS. IT IS IMPORTANT TO PROPERLY ASSEMBLE YOUR TELESCOPE IN ORDER TO ALLOW IT TO FUNCTION PROPERLY.
- Page 3 20MM EYEPIECE = 40X LEAST POWERFUL - MOST LIGHT HELICAL RACK & PINION FOCUSING. ALLOWS FOR PRECISE FOCUSING. CASSINI CD-ROM SET PLANETARIUM FROM ANY LOCATION YOU CAN SEE THE SKY AT IT APPEARS AT ANY TIME OF DAY, OR EVEN IN THE FUTURE.
-
Page 4: Assembly Instructions
C-80 TELESCOPE ASSEMBLY INSTRUCTIONS CAUTION: NEVER POINT YOUR TELESCOPE AT THE SUN. VIEWING THE SUN WITH THIS TELESCOPE OR EVEN THE UNAIDED EYE CAN RESULT IN BLINDNESS OR OTHER SERIOUS EYE DAMAGE. REMOVE ALL PARTS FROM BOX AND IDENTIFY THEM. - Page 5 5. LOOSEN SCREW ON MARS-EYE FINDER AND SLIDE ONTO BRACKET. TIGHTEN ATTACHMENT SCREWS. ( PLEASE SEE FURTHER INSTRUCTIONS ON MARS'EYE FINDER). 6. REMOVE CAPS WHEN TELESCOPE IS IN USE, AND REPLACE WHEN NOT IN USE. THIS WILL KEEP THE TELESCOPE'S OPTICS CLEAN. 7.
- Page 6 CASSINI C-80 MARS- EYE FINDER TO SKY FRONT HELICAL RACK & PINION FOCUSING BACK ALTITUDE SLOW-MOTION MOUNT LOCKING KNOB TRIPOD ACCESSORY TRAY EYEPIECES TRIPOD LOCKING KNOB F6MM F20MM...
- Page 7 HOW TO USE EYEPIECES & ACCESSORIES PROPER PLACEMENT OF THE EYEPIECES AND ACCESSORIES ARE IMPORTANT IN ORDER TO ASSURE EASY OPERATIONS AND CLEAR VIEWING. PLEASE CONSIDER USING YOUR ACCESSORIES IN THE FOLLOWING ORDER. BY DOING THIS YOU WILL BETTER UNDERSTAND THE IMPACT EACH INDIVIDUAL ACCESSORY HAS ON THE FUNCTION OF YOUR TELESCOPE.
- Page 8 MARS-EYE ELECTRONIC FINDER MOUNTING & ALIGNMENT TO MOUNT: 1) REMOVE MARS- EYE ELECTRONIC FINDER FROM BOX. 2) LOOSEN THUMB SCREWS ON SIDE OF FINDER AND SLIDE FINDER ONTO DOVETAIL MOUNT LOCATED AT TOP OF MAIN TELESCOPE TUBE. 3) TIGHTEN THUMB SCREWS. TO CHECK ALIGNMENT WITH MAIN TELESCOPE:(IMPORTANT!) 1) THE MARS-EYE ELECTRONIC FINDER IS NOT PRE - SET AT FACTORY.
- Page 9 POWER CHART EYEPIECE POWER 133X 20MM GETTING THE MOST FROM YOUR TELESCOPE TAKE THE TIME TO BECOME FAMILIAR WITH YOUR NEW TELESCOPE. LEARN THE NAMES OF THE VARIOUS PARTS, WHERE THEY ARE LOCATED AND THEIR FUNCTION. IT IS BEST TO PERFORM THESE FUNCTIONS DURING THE DAY TIME.
- Page 10 . The customer shall be responsible for all costs of transportation and insurance, both to and from CASSINI/COSMO BRANDS INC., and shall be required to prepay such costs. No expenses, warranties and implied warranties, whether or not...
