- Page 2 THIS TELESCOPE HAS BEEN CORRECTED AGAINST CHROMATIC ABERRATION AND PRODUCED TO PRECISE SPECIFICATIONS. PRIOR TO USING YOUR NEW CASSINI TELESCOPE, PLEASE READ THE FOLLOWING SETUP AND USAGE INSTRUCTIONS. IT IS IMPORTANT TO PROPERLY ASSEMBLE YOUR TELESCOPE IN ORDER TO ALLOW IT TO FUNCTION PROPERLY.
- Page 3 GETTING THE MOST FROM YOUR TELESCOPE TAKE THE TIME TO BECOME FAMILIAR WITH YOUR NEW TELESCOPE. LEARN THE NAMES OF THE VARIOUS PARTS, WHERE THEY ARE LOCATED AND THEIR FUNCTION. IT IS THE BEST TO PERFORM THESE FUNCTIONS DURING THE DAY TIME. WHEN SETTING UP FOR A VIEWING SESSION, PLACE THE TELESCOPE IN AN AREA SHELTERED FROM THE WIND IF POSSIBLE.
- Page 4 ALLOWS FOR AN OPTICALLY CORRECT UPRIGHT IMAGE THROUGH YOUR TELESCOPE AT ALL TIMES. ELECTRONIC MARS-EYE FINDER ALLOWS FOR EASY SPOTTING OF OBJECTS. CASSINI CD-ROM PLANETARIUM FROM ANY LOCATION YOU CAN SEE THE SKY AT IT APPEARS AT ANY TIME OF DAY, OR EVEN IN THE FUTURE.
-
Page 5: Assembly Instructions

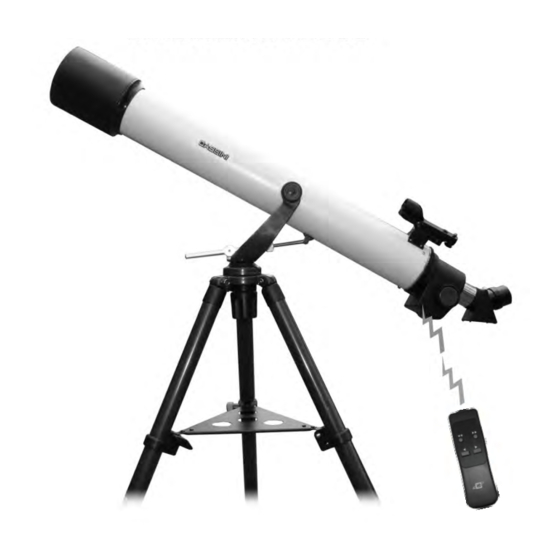

CASSINI C-872EFS ASSEMBLY INSTRUCTIONS 1. REMOVE PRE-ASSEMBLED TRIPOD 2. ADJUST TRIPOD TO PROPER HEIGHT BY LOOSENING, ADJUSTING AND TIGHTENING THE LOCKING KNOBS. 3. REMOVE TELESCOPE AND MOUNT FROM CARTON. NOTE: THEY COME PRE-ASSEMBLED FROM THE FACTORY. 4. LOOSEN MOUNTING KNOB ON THE TELESCOPE MOUNT (UNDERNEATH) 5. - Page 6 FEATURES OF C-872EFS SUN SHADE 800MM X 72MM OPTICAL TUBE MARS-EYE FINDER ERECT IMAGE PRISM EYE PIECE ALTITUDE LOCKING KNOB ALTITUDE AZIMUTH MOUNT IMAGE STABILIZING ELECTRONIC FOCUSER MICRO ADJUSTMENT ROD AZIMUTH LOCKING KNOB FULLY ADJUSTABLE ACCESSORY TRAY ALUMINUM TRIPOD TRIPOD LOCKING KNOB...
- Page 7 HOW TO USE EYEPIECES & ACCESSORIES PLEASE CONSIDER USING YOUR ACCESSORIES IN THE FOLLOWING ORDER. BY DOING THIS YOU WILL BETTER UNDERSTAND THE IMPACT EACH INDIVIDUAL ACCESSORY HAS ON THE FUNCTION OF YOUR TELESCOPE. 1. FOCUSING TUBE - TURN FOCUSING KNOB (LEFT SIDE) TOWARD THE TELESCOPE UNTIL IT WILL GO NO FURTHER.
- Page 8 MARS-EYE ELECTRONIC FINDER MOUNTING & ALIGNMENT TO MOUNT: 1) REMOVE MARS-EYE ELECTRONIC FINDER FROM BOX. 2) LOOSEN THUMB SCREWS ON SIDE OF FINDER AND SLIDE FINDER ONTO DOVETAIL MOUNT LOCATED AT TOP OF MAIN TELESCOPE TUBE. 3) TIGHTEN THUMB SCREWS. TO CHECK ALIGNMENT WITH MAIN TELESCOPE:(IMPORTANT!) 1) THE MARS-EYE ELECTRONIC FINDER IS NOT PRE-SET AT FACTORY.
- Page 9 HOW TO USE THE CASSINI IMAGE STABILIZING ELECTRONIC FOCUSER 1. PUT THREE AAA BATTERIES INTO INTO BATTERY HOLDER. 2. INSERT BATTERY HOLDER INTO ELECTRIC FOCUSER COMPARTMENT. 3. CLOSE THE COVER 4. A. TIGHTEN THE RIGHT CLUTCH KNOB TO USE THE FOCUSER ELECTRONICALLY.
- Page 10 HOW TO USE THE CASSINI IMAGE STABILIZING ELECTRONIC FOCUSER 7. USE WIRELESS CONTROL BOX TO CONTROL THE IR RECEIVER ELECTRIC FOCUSER. (MUST AIM TOWARD IR RECEIVER) CAUTION: PLEASE REPLACE THE BATTERIES WHEN YOU SEE THE INDICATOR LIGHT OF ELECTRIC FOCUSER FLASHING CONTINUOUSLY, OR WHEN THE FOCUSING BECOMES IRREGULAR.
- Page 11 . The customer shall be responsible for all costs of transportation and insurance, both to and from CASSINI/COSMO BRANDS INC., and shall be required to prepay such costs. No expenses, warranties and implied warranties, whether or not...
