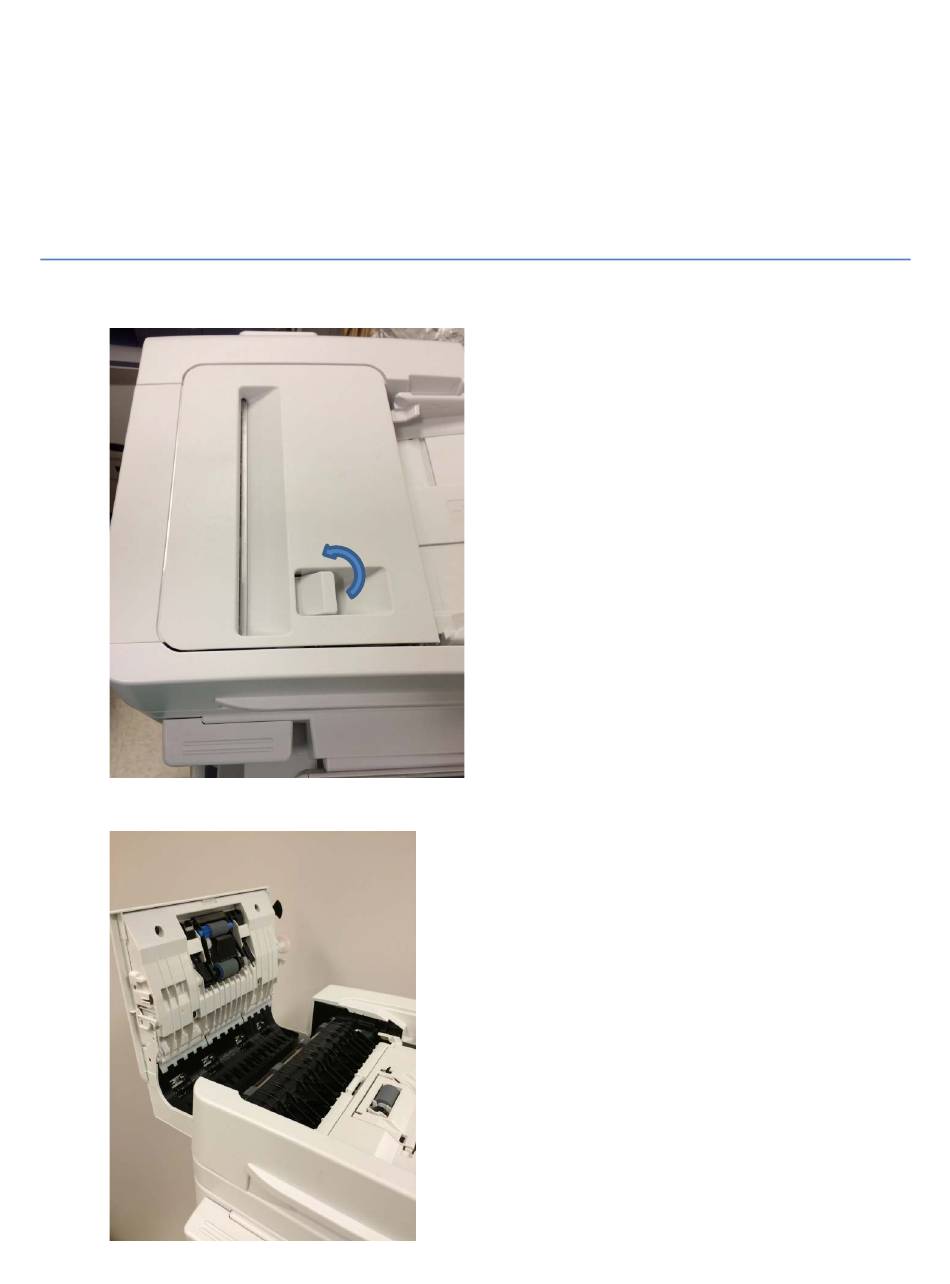

- Page 1 How to adjust the ADF Top Cover assembly to stop the gear grinding noise on the MB760/770 – MC770/780 – MPS 5502 – MPS3537 – MPS4242 1. Open the ADF Top Cover using the lock lever to lift up. 2. The ADF Top Cover in the open position.
- Page 2 3. The ADF Top Cover hinge locations. 4. Find the ADF Top Cover hinge locking tab.
- Page 3 5. Use a flat blade screw driver to gently move the tab to the unlock position 6. The hinge locking tab in the open position...
- Page 4 7. Push on the outside of the ADF Top Cover hinge to move the hinge pivot pin out of its mounting hole. 8. Hinge pivot pin out of position. 9. Repeat steps 5, 6, and 7 for the other hinge and remove the ADF Top Cover...
- Page 5 10. Place the ADF top cover on a table top as shown below. 11. Loosen the 4 mounting screws of the "Top Guide Assy." Once all four screws are loose there should now be play on "Top Guide Assembly." Top Guide Assembly...
- Page 6 12. Manually shift "Top Guide Assembly" in the direction indicated by the blue arrows as close to the edge of the ADF Top Cover as possible. While holding the “Top Guide Assembly” in this new position re-tighten 4 mounting screws (a). ADF Top Cover edge to push towards 13.
