nvent Raychem NGC-UIT-ORD Conversion Instructions page 8

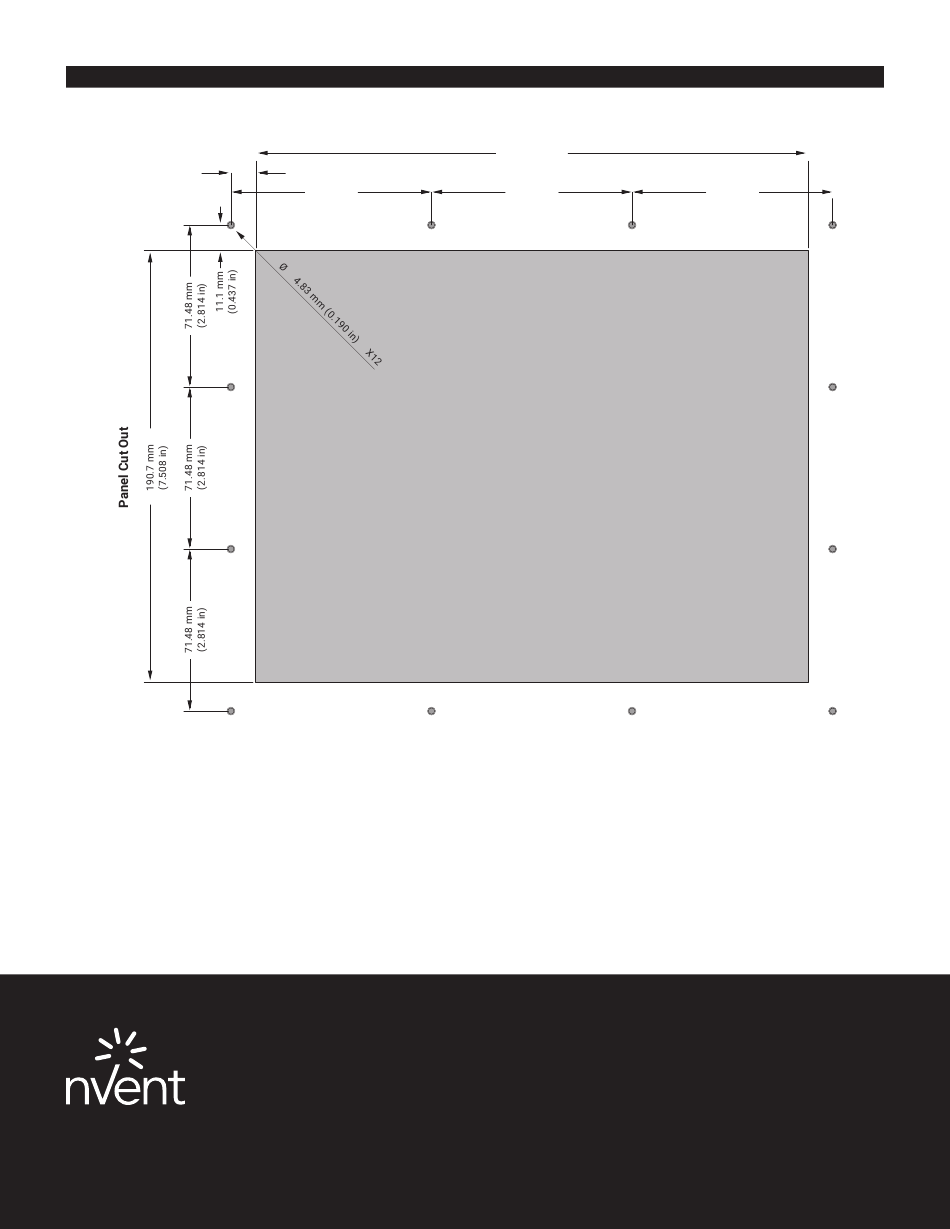

NGC-UIT2-HAZ Cut Out Dimensions
10.82 mm
(0.426 in)
North America
Tel +1.800.545.6258
Fax +1.800.527.5703
thermal.info@nvent.com
©2018 nVent. All nVent marks and logos are owned or licensed by nVent Services GmbH or its affiliates. All other trademarks are the property of their respective owners.
nVent reserves the right to change specifications without notice.
Raychem-IM-H58770-NGCUITtoUIT2-EN-1805
88.39 mm
(3.480 in)
Panel Cut Out Area
NOT TO SCALE
NOT TO SCALE
Europe, Middle East, Africa
Tel +32.16.213.511
Fax +32.16.213.604
thermal.info@nvent.com
Panel Cut Out
243.54 mm
(9.588 in)
88.39 mm
(3.480 in)
Top of Display
Drawing
Drawing
