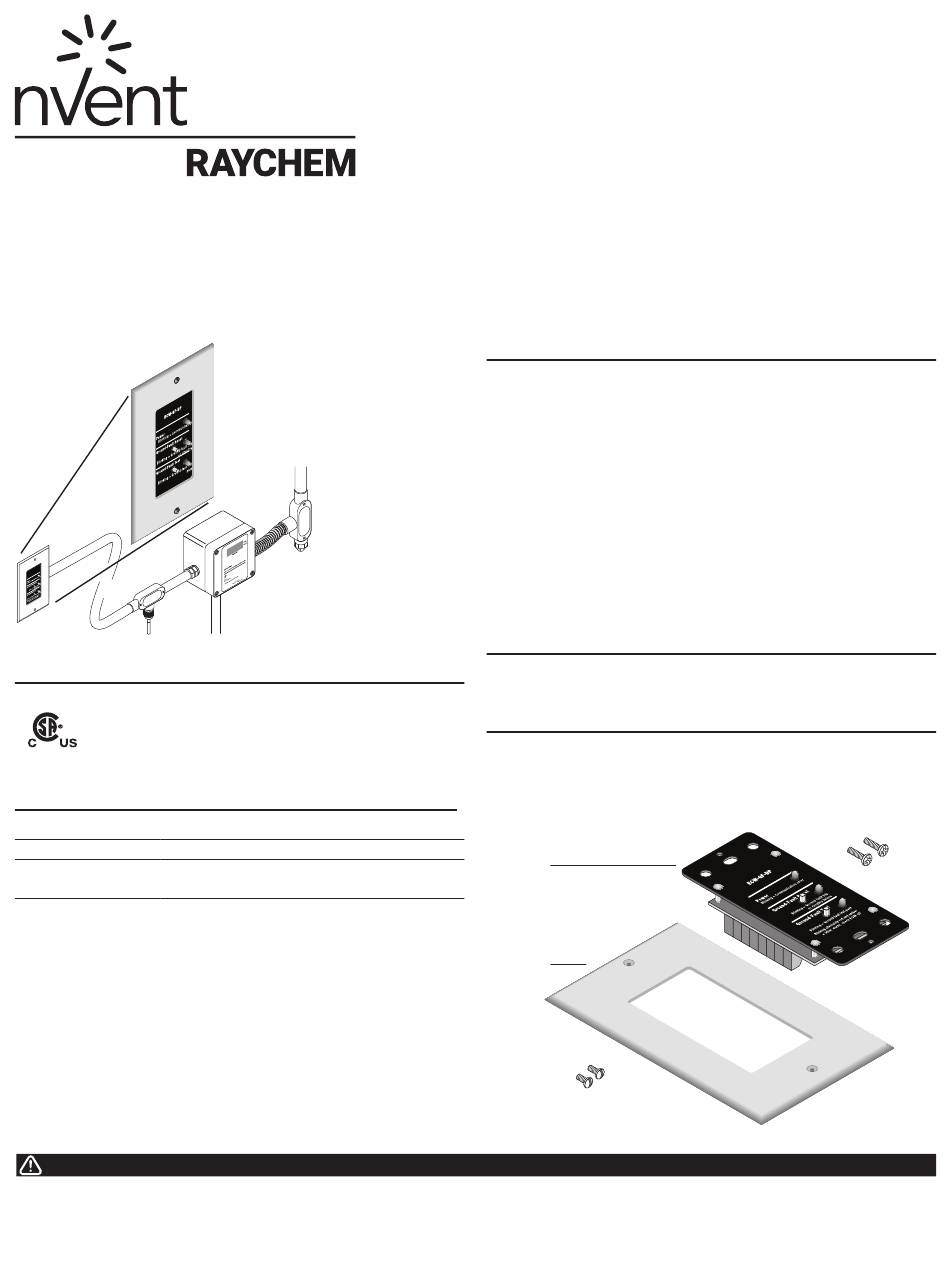

nvent Raychem ECW-GF-DP Installation And Operation Instructions

ECW-GF-DP
Remote Display Pane Installation and Operation Instructions
APPROVALS
Nonhazardous Locations
KIT CONTENTS
Item Qty Description
A 1 Display panel with mounting screws
B 1 Single duplex outlet cover plate with
mounting screws
WARNING:
This unit should be installed, opened, and repaired by qualified personnel only.
To avoid shock hazard, do not open the front cover with power connected to the controller or any controlled equipment. Always open any circuit breakers and
remove power from any high voltage electrical circuits installed in close proximity to or sharing an enclosure with the ECW-GF-DP prior to removing the enclosure
cover plate. Read all instructions carefully before installation. Save this Installation and Operation Instruction for future reference.
DESCRIPTION
The nVent RAYCHEM ECW-GF-DP is a remote display panel only
for the RAYCHEM ECW-GF electronic controller. The ECW-GF-DP
allows remote monitoring of the heating cable system operation.
The display has LED indicators which signal communication loss
to the controller, high/low temperature alarm, and temperature
sensor failure. The display also has buttons to test and reset the
ground-fault sensor. The display may be located up to 328 feet
(100 m) from the ECW-GF controller.
The ECW-GF-DP remote display panel must be installed in
conjunction with the ECW-GF controller. Refer to the ECW-GF
installation instructions (H58339) for further details.
For technical support, call nVent at (800) 545-6258.
TOOLS REQUIRED
• Large slotted screwdriver
• Small slotted screwdriver
ADDITIONAL MATERIALS REQUIRED
• Duplex junction box
• 1/2 inch conduit
• Communication cable: 8 conductor 22 AWG shielded
Alpha Cat. No. 1298C or equivalent
A
B
• Needle nose pliers
• Wire strippers
