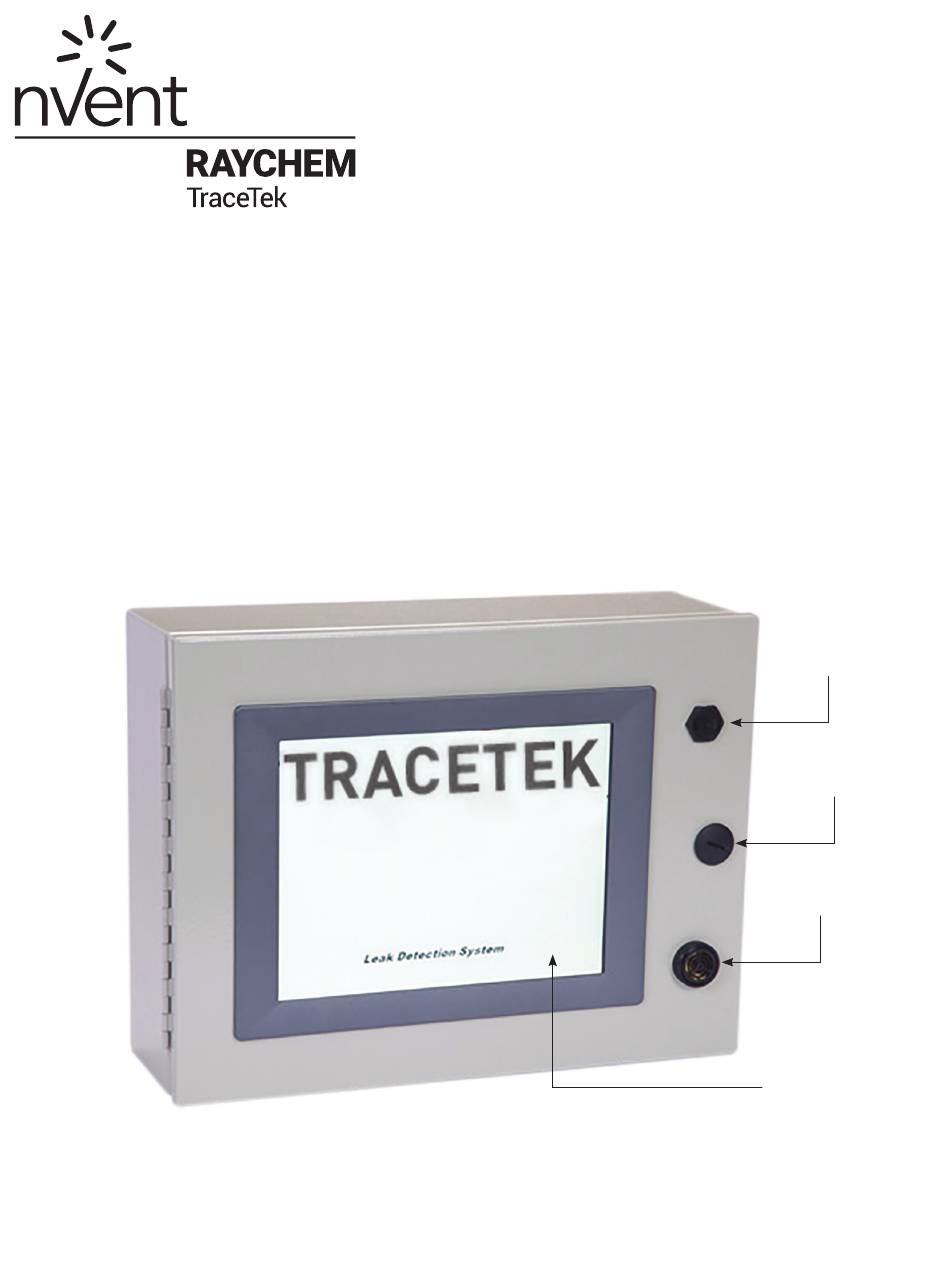

nVent RAYCHEM TT-TS12 PANEL

installation instructions

Front Panel USB port
Door Latch
Buzzer
12" Display and
Interactive Touch
Screen

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAYCHEM TT-TS12 and is the answer not in the manual?

Questions and answers

Summary of Contents for nvent RAYCHEM TT-TS12

  • Page 1: Installation Instructions

    TT-TS12 nVent RAYCHEM TT-TS12 PANEL installation instructions Front Panel USB port Door Latch Buzzer 12” Display and Interactive Touch Screen...
  • Page 2 These instructions must be followed carefully to ensure proper operation. The TT-TS12-Panel has been designed specifically for use with nVent RAYCHEM TraceTek sensor interface modules and relay modules. See the TT-TS12 Data Sheet H80617 for further information on system capabilities.
  • Page 3: Tools Required

    –20°C to 60°C (-4°F to 140°F) Operating temperature -20°C to 60°C (-4°F to 140°F) Ingress Protection NEMA 1; IP 10 Approvals and Certifications: All internal components are UL Listed or Recognized. Panel is built and approved to UL 508A Standard. nVent.com | 3...
  • Page 4 The four holes in the back of the trim flange are aligned with (146 mm) the holes in the back of the TT-TS12-Panel. These holes are 0.27' dia. (6.9 mm) threaded and utilize the four pan head screws included with 4 places the Trim Flange. 4 | nVent.com...
  • Page 5 4. Unsnap (open) two wire harness holders on the door and two wire harness holders on the left side of the enclosure tub. Gently remove the wire harness from the holders. Door wire harness holders Enclosure wire harness holders nVent.com | 5...
  • Page 6 6. Lift the back plane assembly and wire harness out of the enclosure and place on a clean surface. The TT-TS12 touch screen itself, the buzzer and the USB extension cable remain mounted on the door interior. 6 | nVent.com...
  • Page 7 2. Install cable gland and conduit after holes are created. See figure below. LEADER NETWORKS MAINS CABLES & RELAYS POWER Figure 3. Example of completed conduit installation 3. Clean all metal chips and debris from enclosure. nVent.com | 7...
  • Page 8: Making Connections

    Connect mains power wires (100- 240 Vac 50/60 Hz) and ground to the terminal blocks in the lower right corner. There is no preferred position for line or neutral. Maximum conductor size is 10 AWG (4.5 mm). Connect ground wire (if provided) to yellow/ green terminal block. See picture below. 8 | nVent.com...
  • Page 9 Modbus address, baud rate, stop bits and parity, are adjustable to match the host system requirements. (See TT-TS12 Operation Manual H80760 for details) c. See Modbus Register Map for detailed listing of all available mapped parameters nVent.com | 9...
  • Page 10 Make connections to the individual SIM circuits as indicated in these drawings TTSIM-1 TTSIM-1A e. Detailed discussion of TTSIM-1 and TTSIM-1A installation and configuration can be found in publications H56830 and H57338 respectively. 10 | nVent.com...
  • Page 11 The remaining 4 relays are available as user programmable relays (see H80760 Operation Manual for set-up options and details). Physical connections to the relays are made at the ADAM-4069 module i. Remove the ADAM-4522 by loosening two screws and temporarily disconnecting the RS232 connector. nVent.com | 11...
  • Page 12 TT-TS12 touchscreen as mounted on the door panel. d. Take care when closing the enclosure door to avoid pinching the LAN cable. 12 | nVent.com...
  • Page 13 USB connection. For instance a wireless keyboard/mouse dongle can be inserted in the spare USB socket while a USB thumb drive is inserted in the front panel socket. USB Ports Ethernet Ports nVent.com | 13...
  • Page 14: Final Inspection

    Proper start up is indicated by a screen like that shown below, however the number and type of TTSIM may be different than what is shown in this example. 14 | nVent.com...
  • Page 15 See the TT-TS12 Operation Manual H80760 for system configuration, set-up and operating instructions. nVent.com | 15...
