This assembly must be completed by a qualified installer or service agency, in accordance with the

manufacturer's instructions, and in accordance with all codes and requirements of the authority having

jurisdiction. Failure to follow these instructions could result in fire or explosion resulting in property dam-

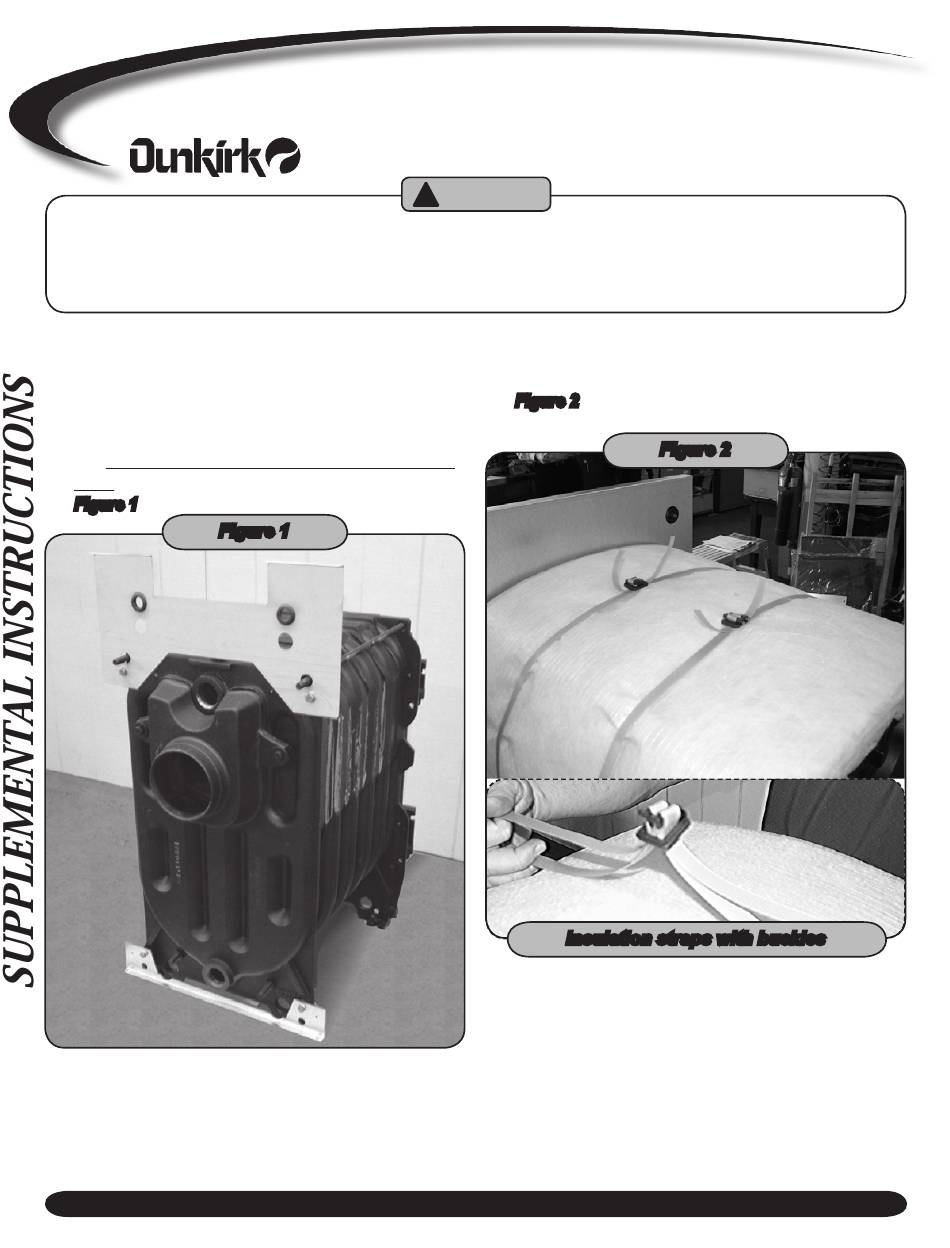

Remove all components from crate. It may be to the

installer's advantage to place the cast iron boiler block

close to where the final installation location will be.

Install rubber grommets in rear top plate. Attach top

and bottom plates to boiler with brass bolts and wash-

ers. Be sure top flanges point toward the front of the

boiler or the top panel will not fit on the boiler. See

Figure

Figure 1

KNOCKDOWN ASSEMBLY

Instructions for

Excelsior oil Fired Boiler

age, personal injury, or loss of life.

Wrap insulation around boiler with the backing side

out. Wrap 2 banding strips around insulation. Cinch

banding together with plastic buckles provided. See

2. Cut off excess banding material.

Figure

Insulation straps with buckles

Attach pipe nipples to supply and return outlets. Be

sure to use pipe dope before screwing into boiler.

P/N 240007210, Rev. A [04/08]

Figure 2

Table of Contents

Do you have a question about the Excelsior Series and is the answer not in the manual?

Page 1 KNOCKDOWN ASSEMBLY Instructions for Excelsior oil Fired Boiler P/N 240007210, Rev. A [04/08] WARNING This assembly must be completed by a qualified installer or service agency, in accordance with the manufacturer’s instructions, and in accordance with all codes and requirements of the authority having jurisdiction.
Page 2 KNOCKDOWN BOILER ASSEMBLY Place the Control Panel assembly on top of the boiler. Attach insulation to rear of boiler. Attach insulation Let the burner wire harness hang down on the right straps to rear strap with plastic buckles as shown in side of the boiler.
Page 3 KNOCKDOWN BOILER ASSEMBLY Attach the front control panel. With the screws provided, Figure 6 attach the bottom screws, then place the panel onto the screws using the notches in the panel. See Figure Then, attach the top using the other two screws. Figure 8 11”...
Page 4 KNOCKDOWN BOILER ASSEMBLY Attach the Rear Top panel with the screws provided. Attach the top swing panel by snapping onto the hinges on the top panel. See Figure Attach the hooks onto the front panel. See Figure Figure 10 Figure 12 Attach the front panel by setting onto the rivets in the side jackets.
