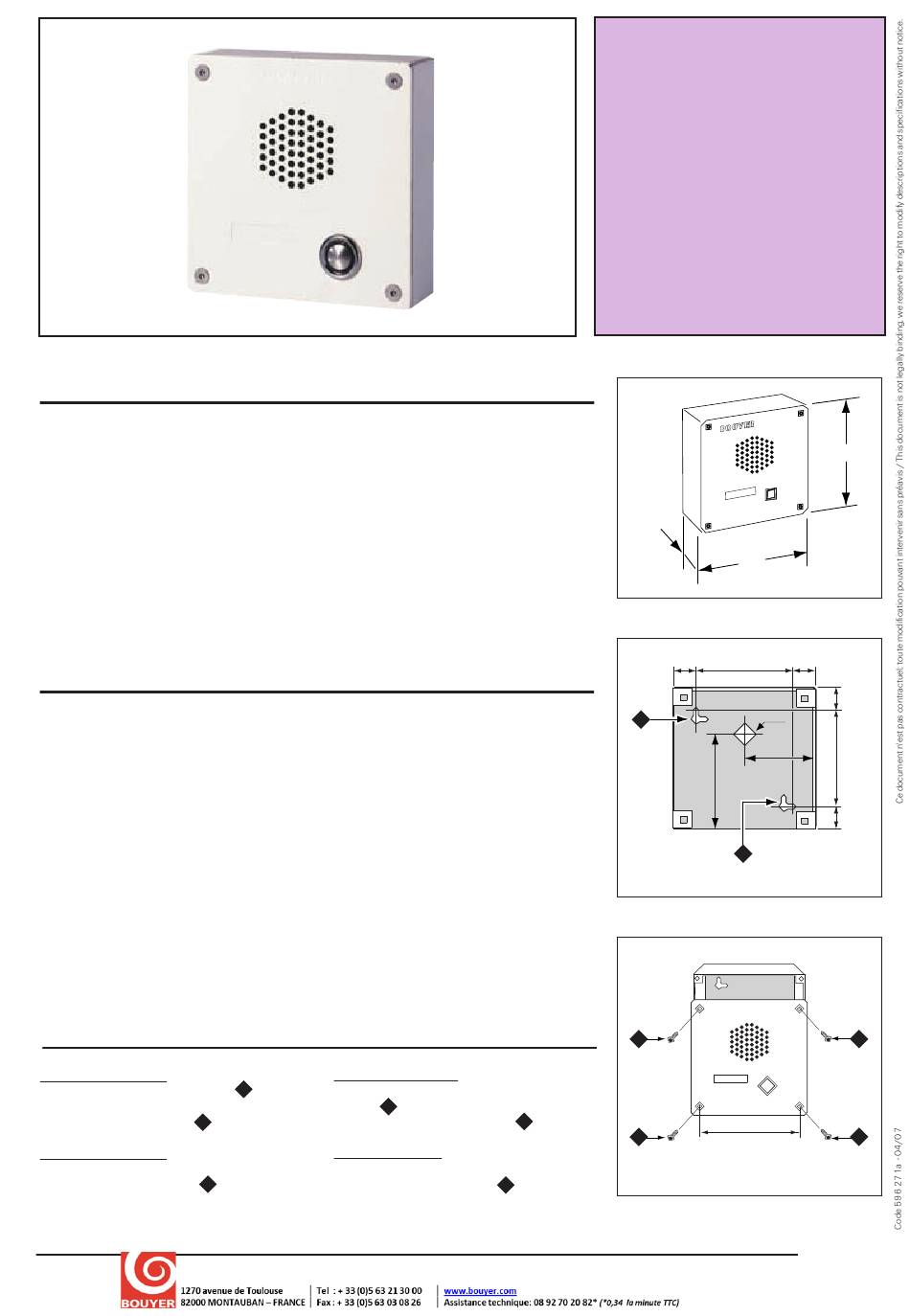

I - DESCRIPTION

Le PS 2601 est un poste secondaire
d'interphonie de construction antivandalis-
me, utilisé à l'intérieur comme à l'extérieur,
en montage encastré ou en saillie.
Le PS 2601 s'utilise avec tous les postes
chefs Bouyer nécessitant des postes
secondaires 16Ω à 50Ω.
Le PS 2601 est employé seul comme
poste secondaire classique ou bien asso-
cié à un poste secondaire de puissance
(dans ce cas le PS 2601 prend la fonction
d'appel et de boîtier réponse).
II - CARACTÉRISTIQUES TECHNIQUES
• Impédance ............................................50 Ω
• Puissance admissible ..........................1W
• Haut-parleur à membrane mylar
• Matière .......................... Aluminium/métal
• Coloris .............................. Ivoire RAL 1013
• Dimensions ......118x118x40 mm (Fig. I)
• Poids................................................ 0,350 kg
• Façade encastrable dans un trou
Ø100mm
Entr'axe de fixation : 100x100mm (Fig.III)
Profondeur : 40 mm
• Fixation de la façade......4 vis M4 invio-
lables
• Bouton poussoir étanche/antivandale
• En option, embout de vissage ZX 2601,
de sécurité (trou central).

III - INSTALLATION

Montage en saillie
Fixer le boîtier par les trous 1 (Fig. II)
avec les 2 vis M4 (tête plate). Fixer la
façade par les 4 vis M4 2 (Fig. III).
2
Montage encastré
Faire un trou Ø 100 mm sur la paroi et fixer
la façade par les 4 vis M4 2 (Fig. III).
2
I - DESCRIPTION
The PS 2601 is an intercom substation
with anti-theft mounting, used inside or
outside, installed flush-mounting or on the
wall.
It may be used with all Bouyer master sta-
tions requiring substations with an impe-
dance of 16Ω or 50Ω.
The PS 2601 is used alone, either as a
standard intercom substation or linked to a
power substation (in this case, the
PS 2601 is used for calls and answers).

II - TECHNICAL SPECIFICATIONS

• Impedance ............................................50 Ω
• Max power..............................................1 W
• Loudspeaker with mylar diaphragm
• Material ..........................aluminium/metal
• Colour ................................Ivory RAL 9003
• Dimensions ......118x118x40 mm (Fig. I)
• Weight ............................................0,350 kg
• Flush-mounting front in the hole
Ø100mm
Fixing distance : 100x100mm (Fig.III)
Depth : 40 mm
• Fixing ..................4 screws M4 anti-theft
• Waterproof push-button / anti-theft
• ZX 2601 security extremity screw-driver
optional (central hole).
III - INSTALLATION
Surface mounting
1
Fix the case on the wall thanks to the
holes 1 (Fig. II) with 2 M4 srews. Fix
1
the front with 4 screws M4 2 (Fig. III).
Flush-mounting
To drill the hole (Ø 100 mm) and to fix the
front with 4 x M4 screws 2 (Fig. III).
P
S
P
S
Z
X
Z
X
POSTE SECONDAIRE
1 DIRECTION
1-WAY OUTDOOR
SUBSTATION
40
Fig. I
1
Fig. II
2
2
2
Fig. III
2
2
6
0
1
2
6
0
1
2
6
0
1
2
6
0
1
118
118
18,5
80
18,5
18,5
Ø20
58,5
80
78,5
18,5
1
BOUYER
100 mm
2
2
