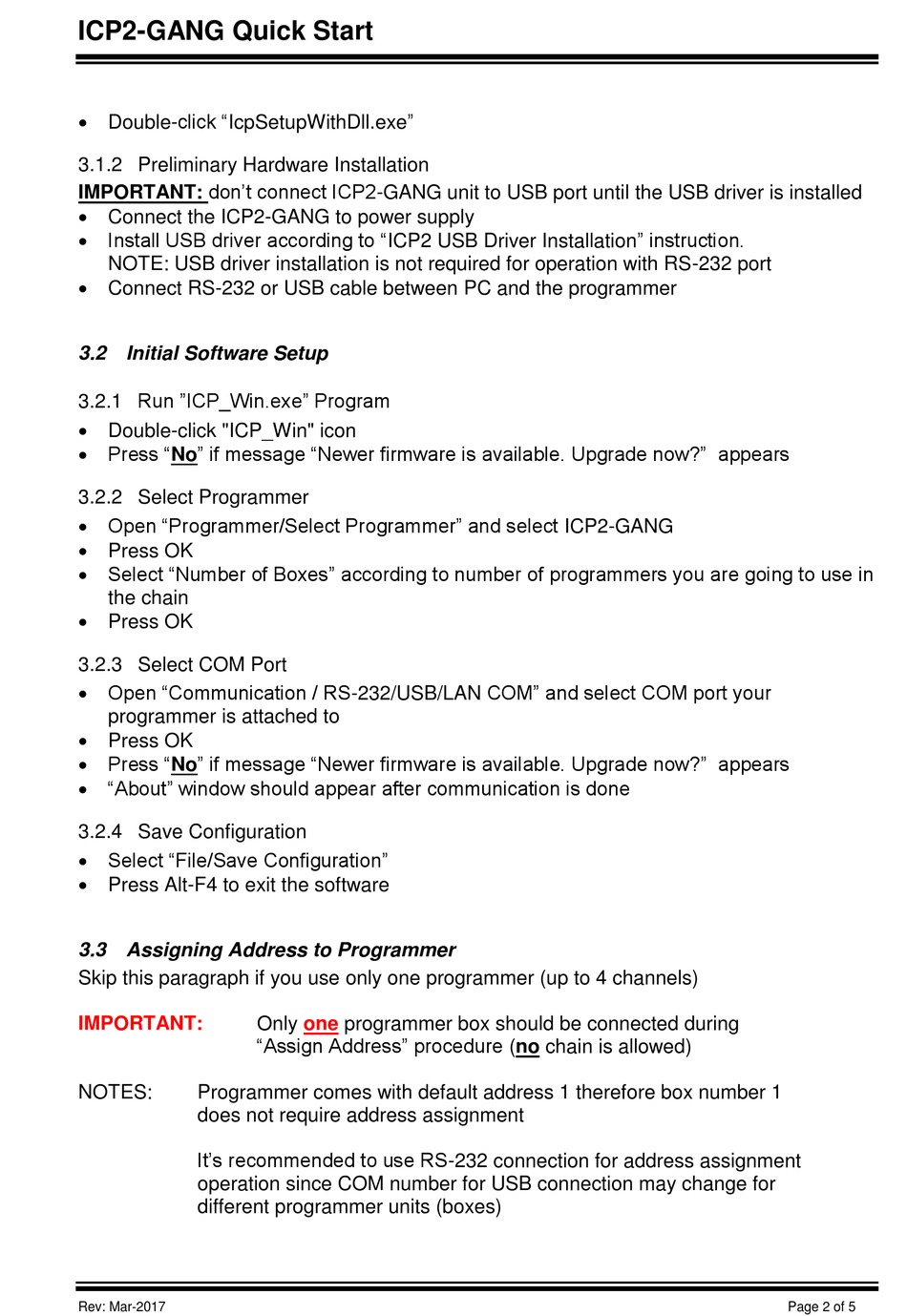

 Double-click "IcpSetupWithDll.exe"

3.1.2 Preliminary Hardware Installation

IMPORTANT: don't connect ICP2-GANG unit to USB port until the USB driver is installed
 Connect the ICP2-GANG to power supply
 Install USB driver according to "ICP2 USB Driver Installation" instruction.
NOTE: USB driver installation is not required for operation with RS-232 port
 Connect RS-232 or USB cable between PC and the programmer

3.2 Initial Software Setup

3.2.1 Run "ICP_Win.exe" Program
 Double-click "ICP_Win" icon
 Press "No" if message "Newer firmware is available. Upgrade now?" appears
3.2.2 Select Programmer
 Open "Programmer/Select Programmer" and select ICP2-GANG
 Press OK
 Select "Number of Boxes" according to number of programmers you are going to use in
the chain
 Press OK
3.2.3 Select COM Port
 Open "Communication / RS-232/USB/LAN COM" and select COM port your
programmer is attached to
 Press OK
 Press "No" if message "Newer firmware is available. Upgrade now?" appears
 "About" window should appear after communication is done
3.2.4 Save Configuration
 Select "File/Save Configuration"
 Press Alt-F4 to exit the software

3.3 Assigning Address to Programmer

Skip this paragraph if you use only one programmer (up to 4 channels)
IMPORTANT:
NOTES: Programmer comes with default address 1 therefore box number 1
does not require address assignment
It's recommended to use RS-232 connection for address assignment
operation since COM number for USB connection may change for
different programmer units (boxes)
Rev: Mar-2017
Only one programmer box should be connected during
"Assign Address" procedure (no chain is allowed)
