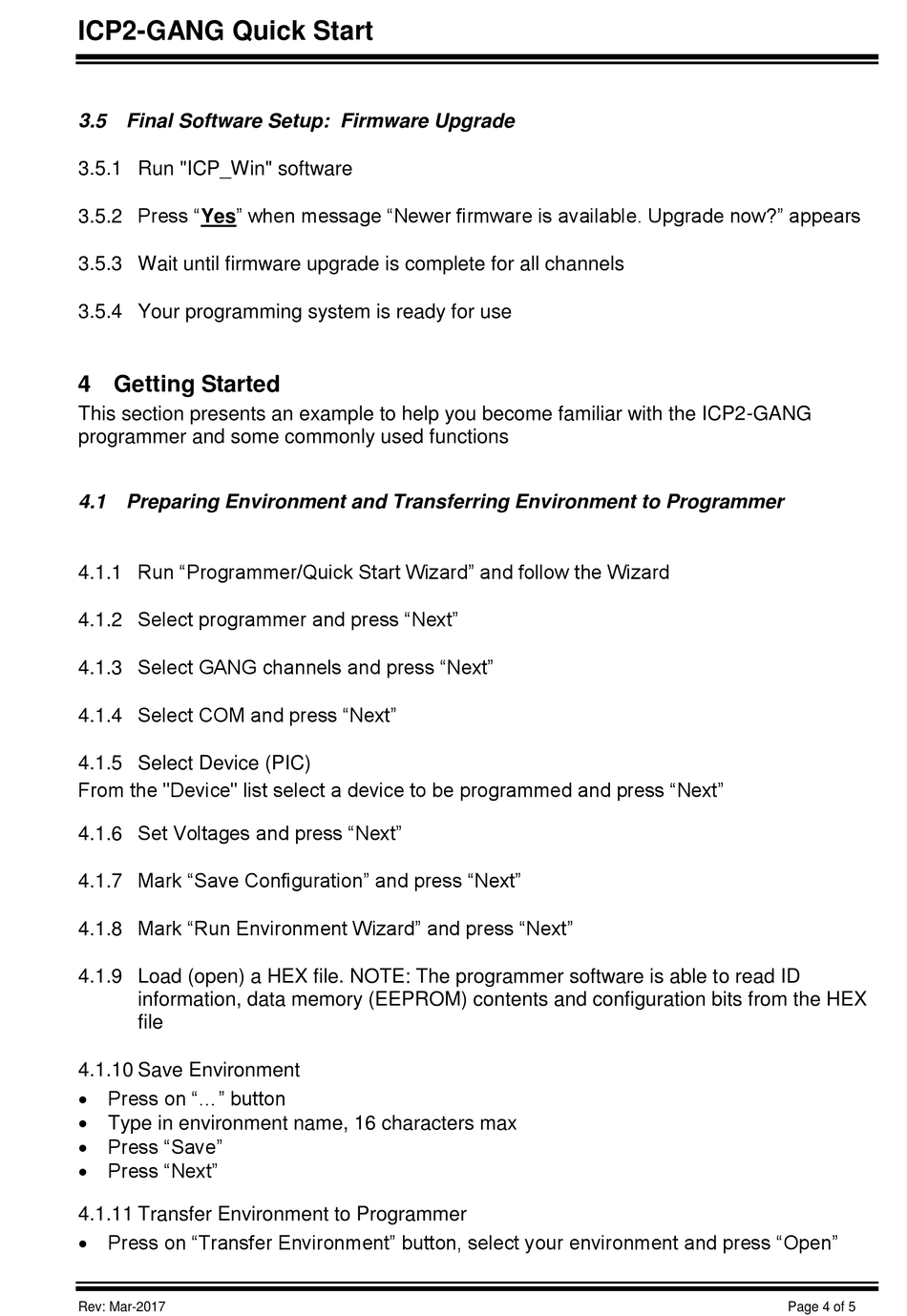

ICP2-GANG Quick Start

3.5 Final Software Setup: Firmware Upgrade

3.5.1 Run "ICP_Win" software
3.5.2 Press "Yes" when message "Newer firmware is available. Upgrade now?" appears
3.5.3 Wait until firmware upgrade is complete for all channels
3.5.4 Your programming system is ready for use

4 Getting Started

This section presents an example to help you become familiar with the ICP2-GANG
programmer and some commonly used functions

4.1 Preparing Environment and Transferring Environment to Programmer

4.1.1 Run "Programmer/Quick Start Wizard" and follow the Wizard
4.1.2 Select programmer and press "Next"
4.1.3 Select GANG channels and press "Next"
4.1.4 Select COM and press "Next"
4.1.5 Select Device (PIC)
From the "Device" list select a device to be programmed and press "Next"
4.1.6 Set Voltages and press "Next"
4.1.7 Mark "Save Configuration" and press "Next"
4.1.8 Mark "Run Environment Wizard" and press "Next"
4.1.9 Load (open) a HEX file. NOTE: The programmer software is able to read ID
information, data memory (EEPROM) contents and configuration bits from the HEX
file
4.1.10 Save Environment
 Press on "..." button
 Type in environment name, 16 characters max
 Press "Save"
 Press "Next"
4.1.11 Transfer Environment to Programmer
 Press on "Transfer Environment" button, select your environment and press "Open"
