Wall Mounting - Draytek VigorAP 912C Quick Start Manual

4. Attach the T-Rail brackets to the ceiling frame:
3 . 4 W a l l M o
3 . 4 W a l l M o

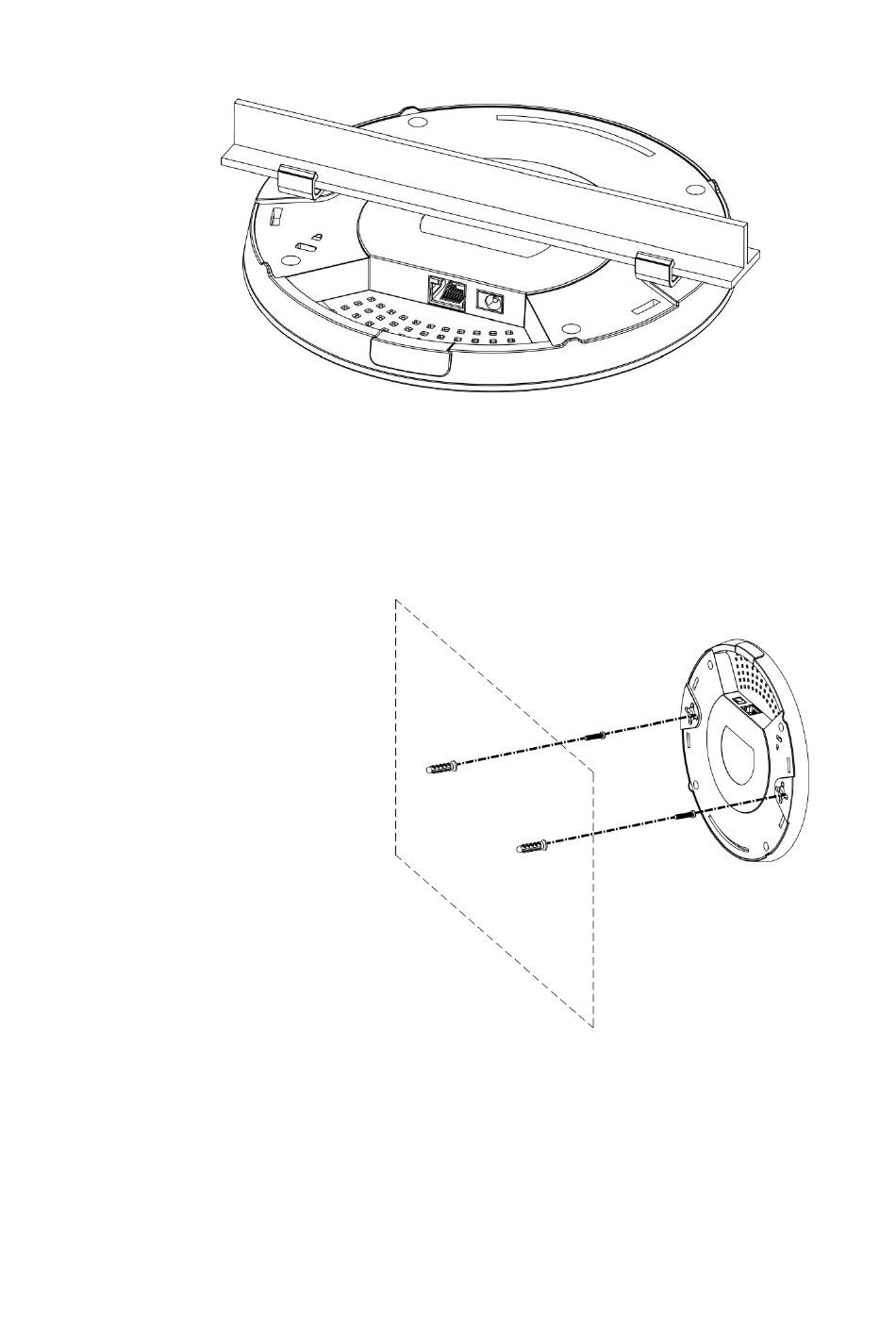

For wall-mounting, the VigorAP
has keyhole type mounting slots
on the underside.
You can fit the AP at any axis (i.e.
12, 3, 6 or 9 O'Clock) to allow for
cable entry from the most
convenient location if you are
using side entry – note the
position of the side entry cable
cutout.
A printed template is provided on
the VigorAP's packaging box to
enable you to space the screws
correctly on the wall.
Fit screws into the wall using the
appropriate type of wall plug but
do not use the ceiling bracket –
the VigorAP hangs onto the
screws.
u n t i n g
u n t i n g

Wall Mounting
