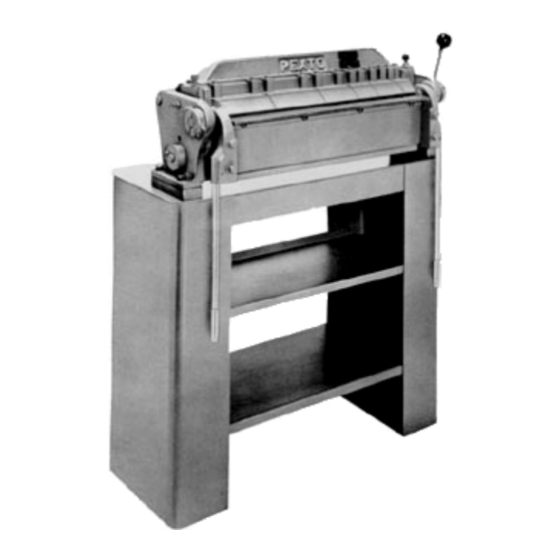

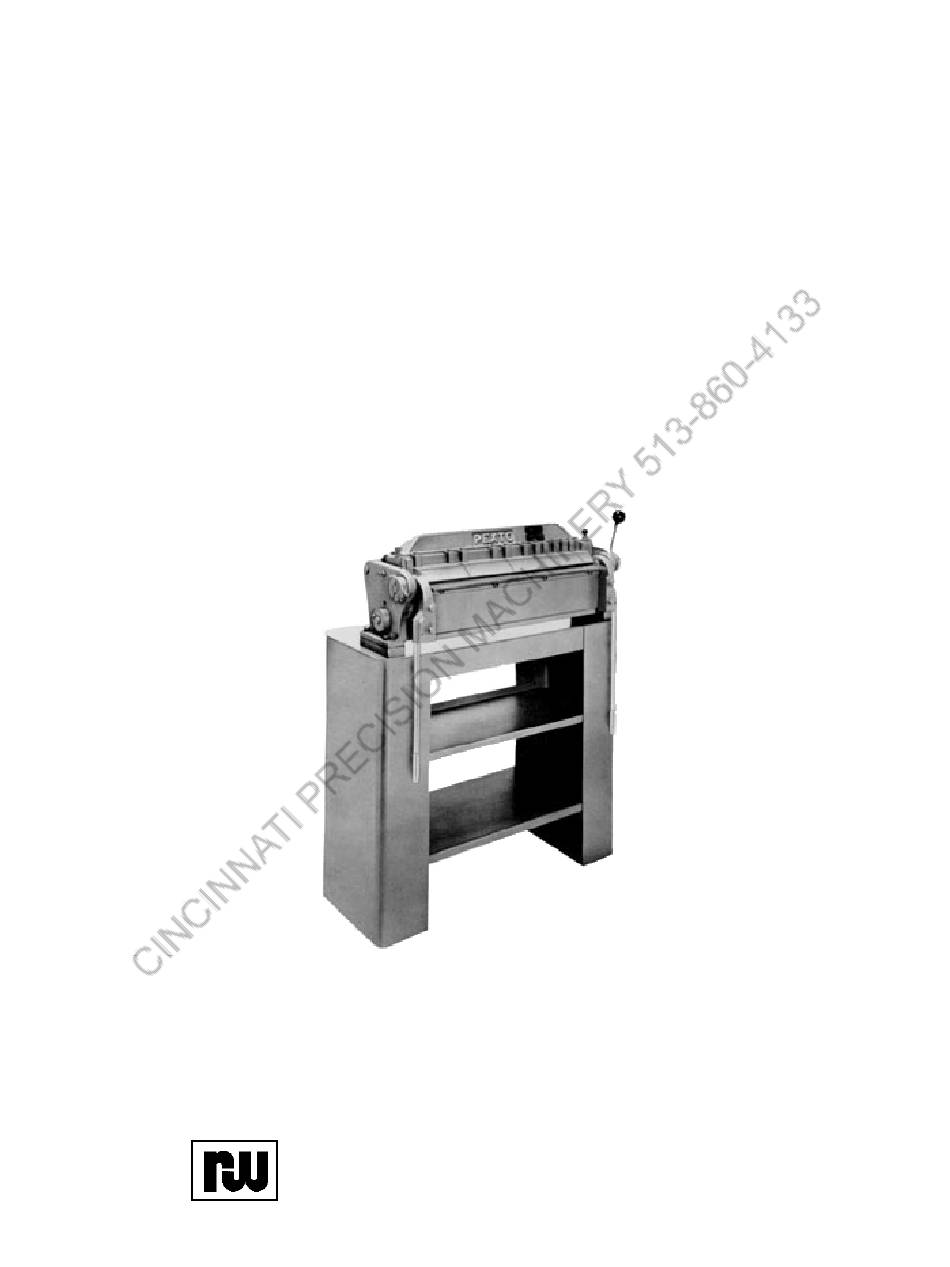

- Page 1 PEXTO PX-24 & PX-36 BOX AND PAN BRAKE OPERATING INSTRUCTIONS PARTS IDENTIFICATION ROPER WHITNEY OF ROCKFORD, INC. 2833 HUFFMAN BLVD., ROCKFORD, ILLINOIS 61103-3990 * 815/962-3011 * FAX 815/962-2227 Website: www.roperwhitney.com * Email: info@roperwhitney.com...
- Page 2 WARNING: Machine is dangerously tippy and unstable and will cause bodily injury if it is not bolted down. Before operating, Box and Pan Brake must be bolted to work bench. If floor stand is used, Box and Pan Brake must be bolted to stand and stand must be bolted to floor. OPERATING INSTRUCTIONS Mount Brake so that Frame (4) is approximately flush with the edge of bench and bolt or lag in place.
- Page 4 PX-24 & PX-36 PARTS IDENTIFICATION LIST ITEM PART NO. PART NO. PART NAME PX-24 PX-36 756030139 756030168 Upper Bar 756650164 756650164 Adjusting Screw 649023006 649023006 Locknut 756140522 756140514 Frame 756260154 756260154 Stop Collar 600063487 600063487 Stop Pin 756010148 756010175 L.H. Folding Bar Holder 756180152 756180180 Eccentric Strap...
- Page 5 PX-24 & PX-36 PARTS IDENTIFICATION LIST ITEM PART NO. PART NO. PART NAME PX-24 PX-36 756030159 756030159 Back Gauge Rod 756030167 756030167 Back Gauge Extension Arm 756420160 756420188 Back Gauge 756130145 756130145 Gauge Prongs 756030144 756030173 Gauge Bar 756260153 756260181 Brake Collar 756680151 756680179...
