USER GUIDE
NI DAQPad -6016 OEM
Caution
There are no product safety, electromagnetic compatibility (EMC), or
CE marking compliance claims made for the NI DAQPad-6016 OEM devices. Conformity
to any and all compliance requirements rests with the end product supplier.
DAQPad-6016 OEM (111 mm × 163 mm Version)
™
This document provides dimensions, connector pinouts, and information
about the LEDs, switches, chassis ground, and connectors of the following
NI DAQPad-6016 OEM devices:
111 mm × 163 mm Version—For information about this version of
•
the DAQPad-6016 OEM device, refer to the DAQPad-6016 OEM
×
(111 mm
163 mm Version) section of this document.
191 mm × 163 mm Version—For information about this version of
•
the DAQPad-6016 OEM device, refer to the
×
(191 mm
163 mm Version)

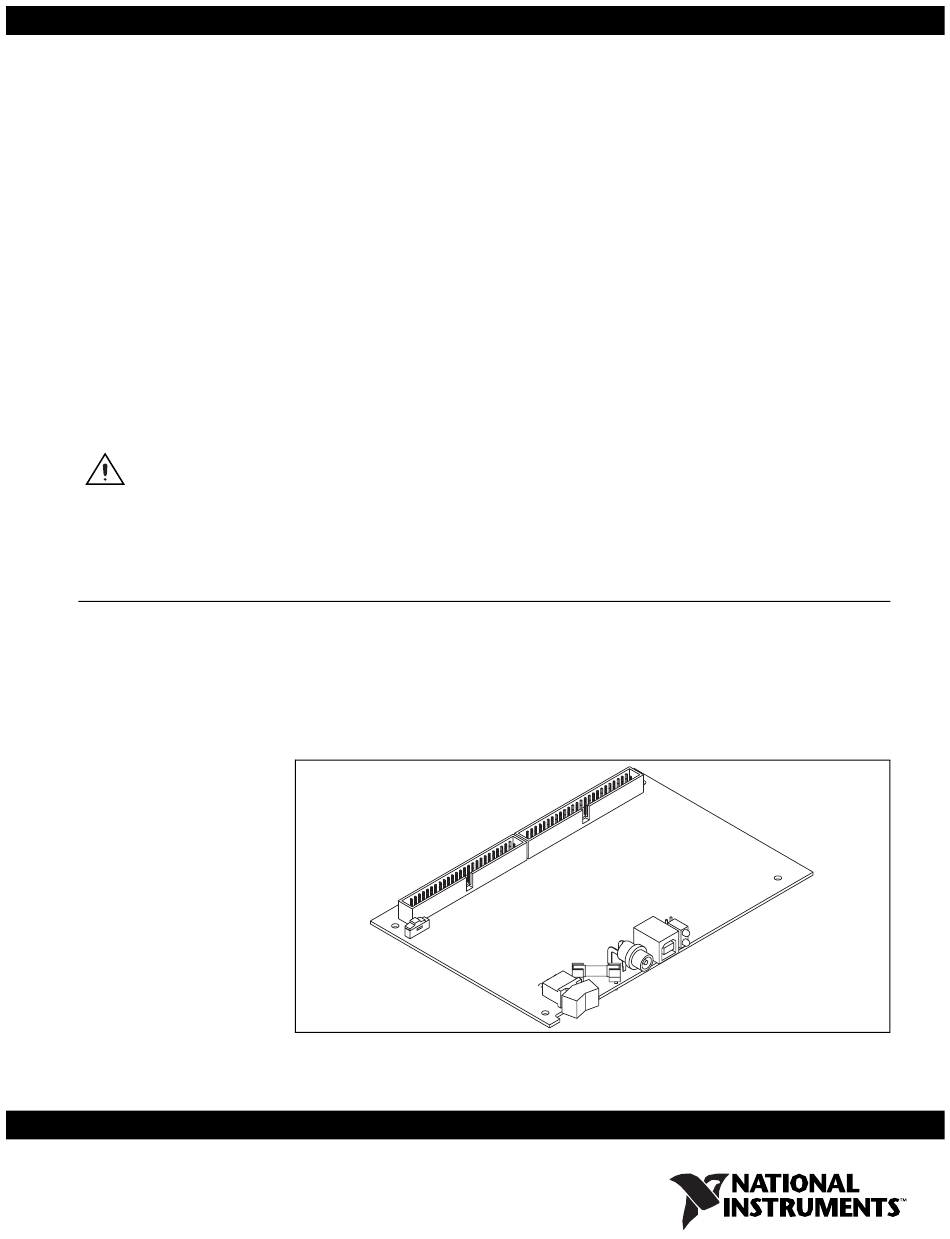

Figure 1 shows the 111 mm × 163 mm version of the DAQPad-6016 OEM
device.
For specifications and more information about the DAQPad-6016 OEM
device, refer to the E Series Help at
Figure 1. DAQPad-6016 OEM Device (111 mm
DAQPad-6016 OEM
section of this document.
.
ni.com/manuals
×
163 mm Version)
Advertisement
Table of Contents
Related Manuals for NI DAQPad-6016 OEM
Summary of Contents for NI DAQPad-6016 OEM
- Page 1 DAQPad-6016 OEM (111 mm × 163 mm Version) Figure 1 shows the 111 mm × 163 mm version of the DAQPad-6016 OEM device. For specifications and more information about the DAQPad-6016 OEM device, refer to the E Series Help at ni.com/manuals...
- Page 2 0.000 (0.00) –0.100 (–2.54) –0.203 (–5.16) –0.215 (–5.45) 0.515 (13.08) 0.436 (11.07) 0.392 (9.96) 0.362 (9.19) 0.162 (4.11) 0.000 (0.00) Figure 2. DAQPad-6016 OEM Dimensions in Inches and Millimeters × (111 mm 163 mm Version) NI DAQPad-6016 OEM User Guide ni.com...
-
Page 3: I/O Connector Pinouts
PFI 9/CTR 0 GATE +5 V D GND CTR 0 OUT FREQ OUT For more information about the DAQPad-6016 OEM signals and how to connect them, refer to the E Series Help at ni.com/manuals © National Instruments Corporation NI DAQPad-6016 OEM User Guide... - Page 4 LEDs The DAQPad-6016 OEM has two LEDs that reflect the state of the device. The green READY LED indicates whether the device is powered on and configured as a USB device. The yellow ACTIVE LED indicates whether there is activity over the USB bus. Figure 3 shows the pins that connect the LEDs to the device.
-
Page 5: Active Led
LED Circuit 2– 1a– 1b– Power Switch (111 mm × 163 mm Version) The power switch on the DAQPad-6016 OEM powers the device on and off. Figure 4 shows the pins on the power switch. VDC Comes Provides from Fuse... - Page 6 2. Pin 3 connects pin 2 to ground when the switch is in the Off position. This allows the charge on the DAQPad-6016 OEM to leak to ground when it is powered off. Figure 5 shows a schematic of the switch.
-
Page 7: Chassis Ground
To make RSE measurements, you must set the Analog Input Terminal Configuration property of your AI Task to NRSE in NI-DAQmx. Even though RSE mode is not exposed in the software, setting S1 to RSE and setting the Analog Input Terminal Configuration property of your AI Task to NRSE will allow you to make RSE measurements. -
Page 8: Device Components
0 Ω resistors × Figure 6. DAQPad-6016 OEM Ground Connections (111 mm 163 mm Version) Device Components Table 4 contains information about the components used for interfacing and interacting with the NI DAQPad-6016 OEM. - Page 9 DAQPad-6016 OEM (191 mm × 163 mm Version) Figure 7 shows the 191 mm × 163 mm version of the DAQPad-6016 OEM device. For specifications and more information about the DAQPad-6016 OEM device, refer to the E Series Help at ni.com/manuals...
- Page 10 0.055 (1.40) 0.000 (0) 0.215 (5.45) –0.203 (–5.16) 4-40 Tapped 0.436 (11.07) 0.515 (13.08) 0.392 (9.96) 0.262 (6.65) 0.000 (0) Figure 8. DAQPad-6016 OEM Dimensions in Inches and Millimeters × (191 mm 163 mm Version) NI DAQPad-6016 OEM User Guide ni.com...
- Page 11 PFI 9/CTR 0 GATE +5 V D GND CTR 0 OUT FREQ OUT For more information about the DAQPad-6016 OEM signals and how to connect them, refer to the E Series Help at ni.com/manuals © National Instruments Corporation NI DAQPad-6016 OEM User Guide...
- Page 12 LEDs The DAQPad-6016 OEM has two LEDs that reflect the state of the device. The green READY LED indicates whether the device is powered on and configured as a USB device. The yellow ACTIVE LED indicates whether there is activity over the USB bus. Figure 9 shows the pins that connect the LEDs to the device.
-
Page 13: Power Switch
ACTIVE LED READY LED LED Circuit 2– 1a– 1b– Power Switch The power switch on the DAQPad-6016 OEM powers the device on and off. Figure 10 shows the pins on the power switch. VDC Comes Provides from Fuse Power to Device... - Page 14 2. Pin 3 connects pin 2 to ground when the switch is in the Off position. This allows the charge on the DAQPad-6016 OEM to leak to ground when it is powered off. Figure 11 shows a schematic of the switch.
- Page 15 USB connected to chassis ground cable ground Hole for connecting an L bracket to connect enclosure to chassis ground × Figure 12. DAQPad-6016 OEM Ground Connections (191 mm 163 mm Version) © National Instruments Corporation NI DAQPad-6016 OEM User Guide...
- Page 16 The screw terminals can be purchased as a set of six directly from National Instruments. The part number is 779442-01. National Instruments, NI, ni.com, and LabVIEW are trademarks of National Instruments Corporation. Refer to the Terms of Use section on ni.com/legal for more information about National Instruments trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies.
