ARLP-UL-M-KIT
The Command Access
Latch Pullback Kit for the Adams Rite 82/84/86/88 series
A.
KIT IN C LU D ES | TOOL S R E QU I R E D
A.

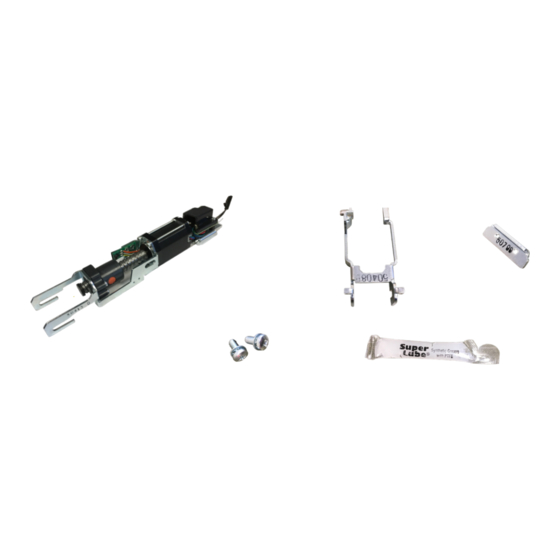

1 - ARLP-UL-M-KIT
B.
1 - 50408 Magnet Bracket
C.
1 - 50799 Attaching Bracket
2 - Phillips head screws
D.
1 - Super Lube Package
E.
U S c u s t o m e r s u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w . c o m m a n d a c c e s s . c o m | C A c u s t o m e r s u p p o r t 1 - 8 5 5 - 8 2 3 - 3 0 0 2
Command Access is not a licensee, or affiliated, associated or connected with Allegion, Assa Abloy, Stanley, Schlage, Falcon, Von Duprin, Dorma, Sargent, Corbin Russwin, Yale, Emtek, Adams Rite, Best, Precision, Arrow,
Design Hardware, Cal Royal, Jackson, Kawneer, AHT, Marshall Best, Marks, Accurate, Baldwin, FSB, PDQ, Lawrence, Trans Atlantic, Hager, LSDA, General Lock, or Omnia or any of their subsidiaries or affiliates.

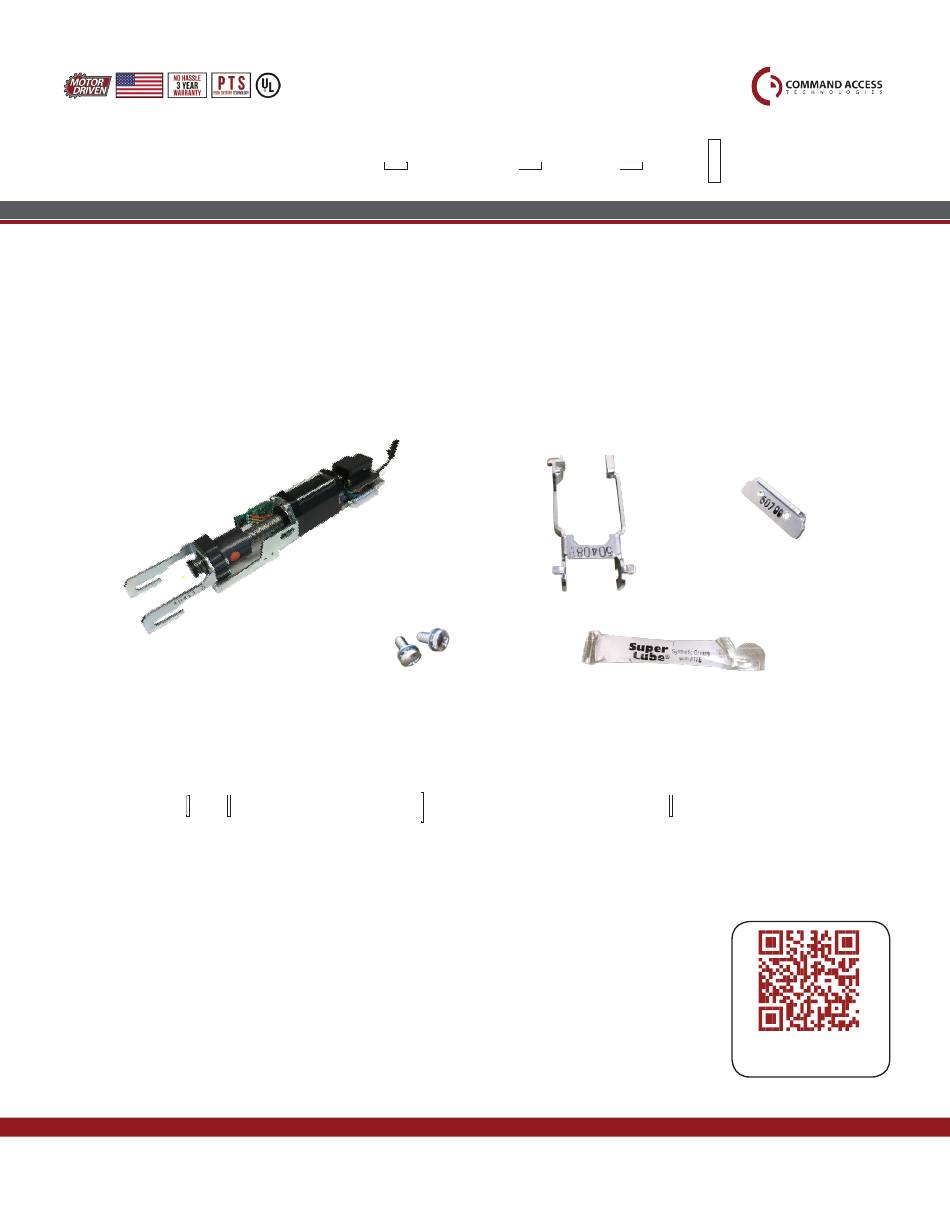

INSERT INSTRUCTIONS
ARLP-UL-M-KIT
D.
Field Installable Motorized
B.
E.
•
Phillips Screwdriver
C.
Installation Video
Click or Scan
# 2 0 3 9 8 _ E
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Command access ARLP-UL-M-KIT
Summary of Contents for Command access ARLP-UL-M-KIT
- Page 1 U S c u s t o m e r s u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w . c o m m a n d a c c e s s . c o m | C A c u s t o m e r s u p p o r t 1 - 8 5 5 - 8 2 3 - 3 0 0 2 Command Access is not a licensee, or affiliated, associated or connected with Allegion, Assa Abloy, Stanley, Schlage, Falcon, Von Duprin, Dorma, Sargent, Corbin Russwin, Yale, Emtek, Adams Rite, Best, Precision, Arrow, Design Hardware, Cal Royal, Jackson, Kawneer, AHT, Marshall Best, Marks, Accurate, Baldwin, FSB, PDQ, Lawrence, Trans Atlantic, Hager, LSDA, General Lock, or Omnia or any of their subsidiaries or affiliates.
-
Page 2: Technical Information
Technical Information SPECIFICATIONS MM4 SWITCHES Standard Torque Mode • Input Voltage: 24VDC +/- 10% STANDARD TORQUE Average Latch Retraction Current: 1.3 A HIGH TORQUE • Wire gauge: Minimum 18 gauge Average Holding Current: 215 mA PTS PROGRAMMING LOCKED • Direct wire run - no relays or High Torque Mode PTS PROGRAMMING ON Average Latch Retraction Current: 2 Amp... - Page 3 Legend Standard Placement Recomm ende d Po we r Su pplies : All Command Access exit devices & field installable kits have been thoroughly cycle tested with Command Access power supplies at our factory. For more information, visit our website...
- Page 4 STEP 1 Assemble Kit If Magnet Bracket comes loose during shipping, The ears on the magnet bracket slide on top of rotate ballscrew a quarter turn as pictured. attaching hooks Left up the back of the magnet bracket to bring Most likely, this is how your unit will come out of the parallel with attaching hooks box with the magnet bracket installed.
- Page 5 STEP 2 Installing Kit Install the motor assembly & magnet bracket into the Visually confirm post is in the correct channel & that back of the exit device behind the back activating the motor assembly is siting flush on the bottom of bracket.
- Page 6 Pull back on the whole assembly to lock-in the Grab the back-attaching bracket #5500, with Tab Side attaching hooks. the tab facing the back of the device, and slide into the existing bottom channel. Slide forward until the tab on the attaching Drop in both screws into the back of the MM4 bracket bracket bottoms out on the underside of the but do not tighten yet!
- Page 7 Next, hook up to power and utilize our push pad guide (or complete push pad) set the Push-to-Set adjustment. Follow steps, below MM4 SWITCHES STANDARD TORQUE HIGH TORQUE PTS PROGRAMMING LOCKED PTS PROGRAMMING ON Setting PTS Step 1- Select your preferred torque mode (ships in standard torque) Press the device push pad to the desired setting.
