The Command Access MLRK1 is a field-installable motorized latch-retraction kit for:
• MLRK1-COR - Corbin 4000/5000 and Yale 7000 series devices

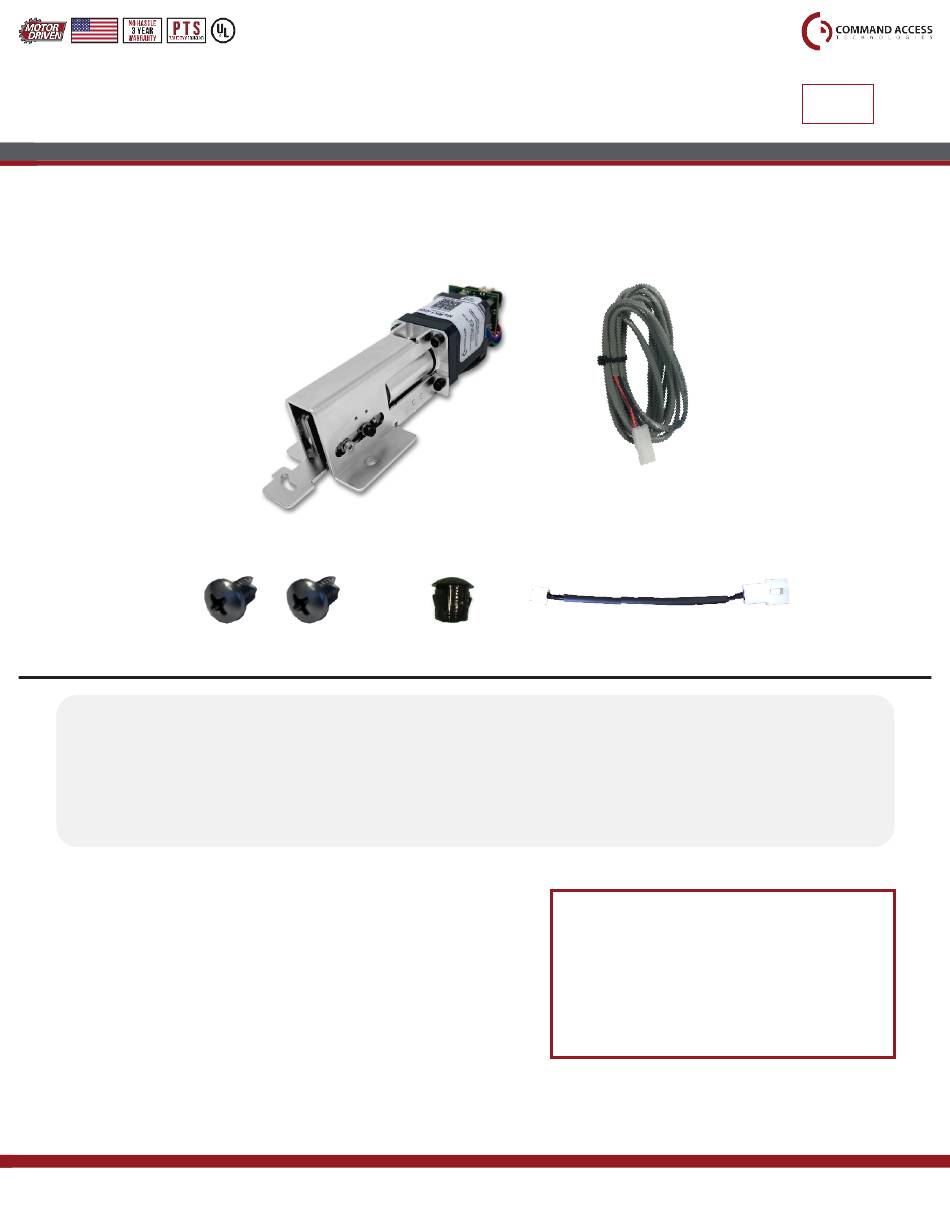

K it I ncl u d e s
A. 60417 – MLRK1 motor
B. 50030 – 8' Power Lead
C. 40176 – Phillips Head Screws (x2)
D. 40144 – Dogging Hole Cap
•
Input Voltage: 24VDC +/- 10%
•
Wire gauge: Minimum 18 gauge
•
Direct wire run - no relays or access control units
in-between power supply & module
R e c ommend e d P ow er S u pp li es:
All Command Access exit devices & field installable kits have been thoroughly cycle tested with Command
Access power supplies at our factory. If you plan on using a non-Command power supply it must be a
filtered & regulated linear power supply.
U S C u s t o m e r S u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w . c o m m a n d a c c e s s . c o m | C A C u s t o m e r S u p p o r t 1 - 8 5 5 - 8 2 3 - 3 0 0 2
M L R K 1 - C O R
INSERT Instructions
A.
C.
D.
E. 50944 – MM4t Socket Lead
SPECIFICATIONS
B.
E.
T o o ls R eq ui re d
• cordless drill
• #2 phillips screwdriver
Standard Torque Mode
Average Latch Retraction Current: 900 mA
Average Holding Current: 215 mA
High Torque Mode
Average Latch Retraction Current: 2 Amp
Average Holding Current: 250 mA
1
2 0 2 0
E D I T I O N
# 2 0 6 4 3 _ A
Advertisement
Related Manuals for Command access MLRK1-COR
Summary of Contents for Command access MLRK1-COR
- Page 1 R e c ommend e d P ow er S u pp li es: All Command Access exit devices & field installable kits have been thoroughly cycle tested with Command Access power supplies at our factory. If you plan on using a non-Command power supply it must be a filtered &...
- Page 2 PUSH TO SET (PTS) GREEN CHANNEL 1 Ceiling Tile NORMALLY OPEN DRY CONTACT FROM ACCESS CONTROL SYSTEM NO VOLTAGE LOCKING HARDWARE Module Setting PUSH TO SET (PTS) **Important Info** Make sure to set PTS before finishing installation MM4T SWITCHES Select your preferred torque mode (ships in standard torque). Press the Step 1 - STANDARD TORQUE device push pad to the desired setting.
- Page 3 installation instructions Remove Filler Plate Remove Dogging Assembly if present (2 Phillips screws ) Depress Push Pad to expose Dogging Arm, line up cut out on Retraction Arm with tab on Exit Device. Dogging U S C u s t o m e r S u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w . c o m m a n d a c c e s s . c o m | C A C u s t o m e r S u p p o r t 1 - 8 5 5 - 8 2 3 - 3 0 0 2 # 2 0 6 4 3 _ A...
- Page 4 installation instructions Once in place pull back on the kit slightly to line up the mounting holes with the Exit Device’s existing screw holes and install (2) Phillips mounting screws. Connect to power and set the PTS adjustment by following the instructions on the next page.
