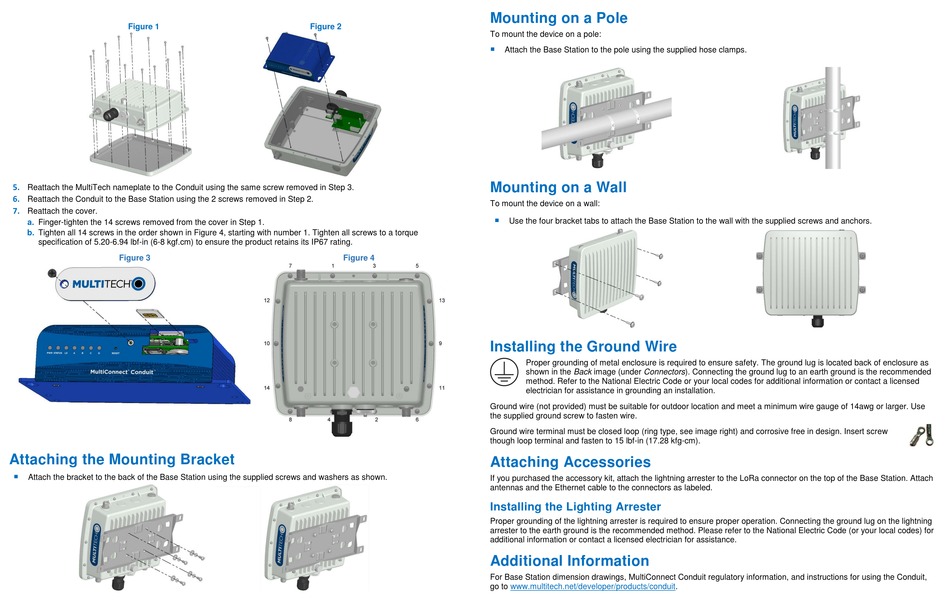

Figure 1
5.
Reattach the MultiTech nameplate to the Conduit using the same screw removed in Step 3.
6. Reattach the Conduit to the Base Station using the 2 screws removed in Step 2.
7.
Reattach the cover.
a. Finger-tighten the 14 screws removed from the cover in Step 1.
b. Tighten all 14 screws in the order shown in Figure 4, starting with number 1. Tighten all screws to a torque
specification of 5.20-6.94 lbf-in (6-8 kgf.cm) to ensure the product retains its IP67 rating.
Figure 3
Attaching the Mounting Bracket

Attach the bracket to the back of the Base Station using the supplied screws and washers as shown.
Figure 2
Figure 4
Mounting on a Pole
To mount the device on a pole:

Attach the Base Station to the pole using the supplied hose clamps.
Mounting on a Wall
To mount the device on a wall:

Use the four bracket tabs to attach the Base Station to the wall with the supplied screws and anchors.
Installing the Ground Wire
Proper grounding of metal enclosure is required to ensure safety. The ground lug is located back of enclosure as
shown in the Back image (under Connectors). Connecting the ground lug to an earth ground is the recommended
method. Refer to the National Electric Code or your local codes for additional information or contact a licensed
electrician for assistance in grounding an installation.
Ground wire (not provided) must be suitable for outdoor location and meet a minimum wire gauge of 14awg or larger. Use
the supplied ground screw to fasten wire.
Ground wire terminal must be closed loop (ring type, see image right) and corrosive free in design. Insert screw
though loop terminal and fasten to 15 lbf-in (17.28 kfg-cm).
Attaching Accessories
If you purchased the accessory kit, attach the lightning arrester to the LoRa connector on the top of the Base Station. Attach
antennas and the Ethernet cable to the connectors as labeled.
Installing the Lighting Arrester
Proper grounding of the lightning arrester is required to ensure proper operation. Connecting the ground lug on the lightning
arrester to the earth ground is the recommended method. Please refer to the National Electric Code (or your local codes) for
additional information or contact a licensed electrician for assistance.

Additional Information

For Base Station dimension drawings, MultiConnect Conduit regulatory information, and instructions for using the Conduit,
go to www.multitech.net/developer/products/conduit.
