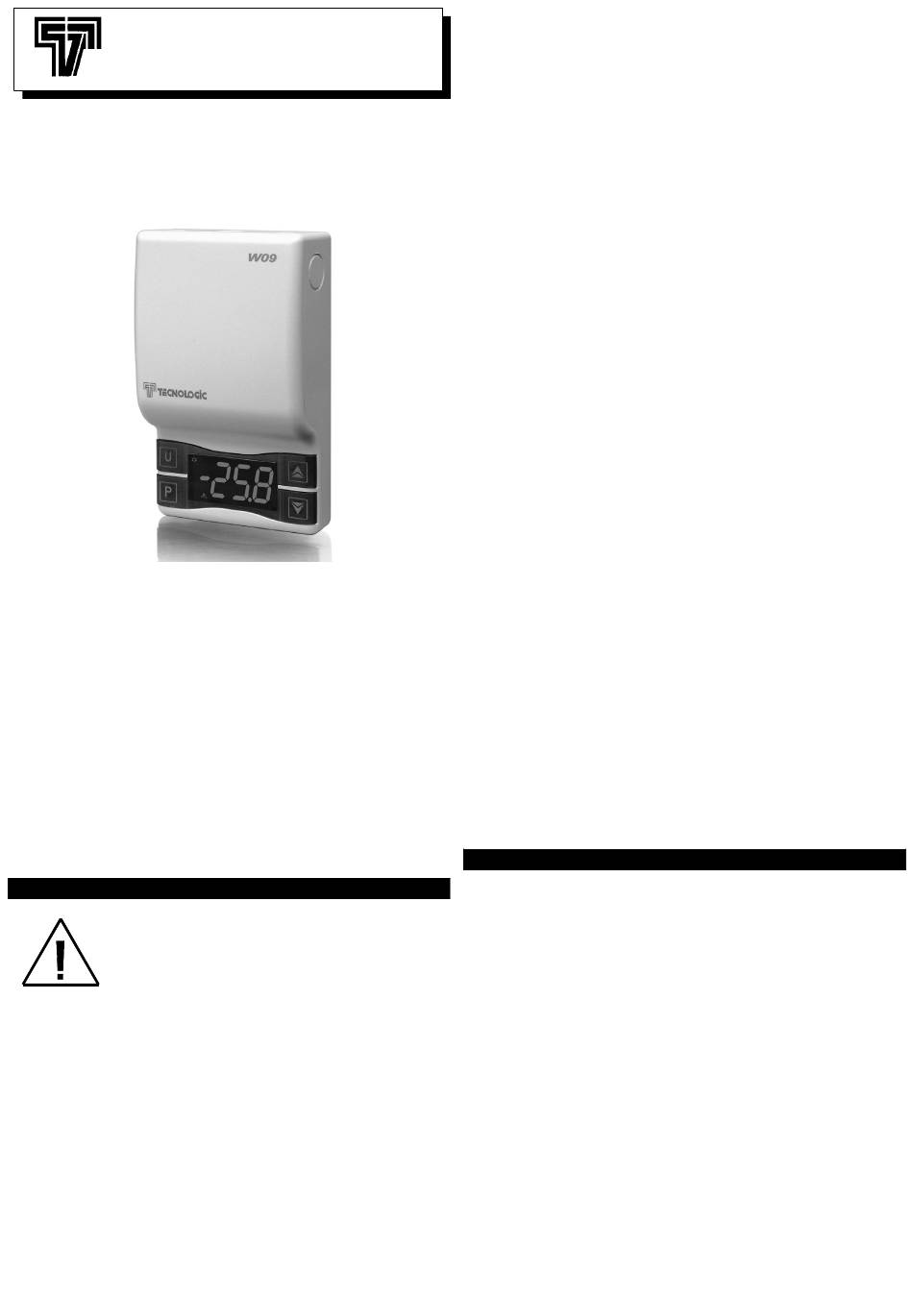

W09Y
DIGITAL ELECTRONIC FREEZER
CONTROLLER
OPERATING INSTRUCTIONS
Vr. 01 (ENG) - 07/09 - cod.: ISTR-MW09YENG1
TECNOLOGIC S.p.A.
VIA INDIPENDENZA 56
27029 VIGEVANO (PV) ITALY
TEL.: +39 0381 69871
FAX: +39 0381 698730
internet : http:\\www.tecnologic.it
e-mail: info@tecnologic.it
FOREWORD
This manual
necessary for the product to be installed
correctly
maintenance and use; we therefore recommend
that the utmost attention is paid to the following
instructions and to save it.
This document is the exclusive property of TECNOLOGIC
S.p.A. which forbids any reproduction and divulgation , even
in part, of the document, unless expressly authorized.
TECNOLOGIC S.p.A. reserves the right to make any formal or
functional changes at any moment and without any notice.
Whenever a failure or a malfunction of the device may cause
dangerous situations for persons, thing or animals, please
remember that the plant has to be equipped with additional
devices which will guarantee safety.
Tecnologic S.p.A. and its legal representatives do not assume
any responsibility for any damage to people, things or animals
deriving from violation, wrong or improper use or in any case
not in compliance with the instrument's features.
TECNOLOGIC spa - W09Y - OPERATING INSTRUCTIONS - Vr. 01 - 07/09 - ISTR-MW09YENG1 - PAG. 1
contains the
and also instructions
INDEX
1 INSTRUMENT DESCRIPTION
1.1 GENERAL DESCRIPTION
1.2 FRONT PANEL DESCRIPTION
2 PROGRAMMING
2.1 FAST PROGRAMMING OF SET POINT
2.2 STANDARD MODE PARAMETERS PROGRAMMING
2.3 PARAMETER PROTECTION USING THE PASSWORD
2.4 CUSTOMIZED MODE PARAMETER PROGRAMMING
(PARAMETERS PROGRAMMING LEVEL)
2.5 RESET PARAMETERS TO DEFAULT VALUE/LEVEL
2.6 PARAMETERS CONFIGURATION BY "A01"
2.7 KEYBOARD LOCK FUNCTION
3 INFORMATION ON INSTALLATION AND USE
3.1 PERMITTED USE
3.2 MECHANICAL MOUNTING
3.3 ELECTRICAL CONNECTIONS
3.4 ELECTRICAL WIRING DIAGRAM
4 FUNCTIONS
4.1 ON / STAND-BY FUNCTION
4.2 MEASURING AND VISUALIZATION
4.3 DIGITAL INPUT
4.4 OUTPUTS AND BUZZER CONFIGURATION
4.5 ACTIVE SET POINT SELECTION
4.6 TEMPERATURE CONTROL
4.7 COMPRESSOR PROTECTION FUNCTION AND DELAY
AT POWER-ON
4.8 DEFROST CONTROL
4.8.1 AUTOMATIC DEFROST STARTS
4.8.2 MANUAL DEFROST
4.8.3 END DEFROST
4.8.4 DEFROST DISPLAY LOCK
4.9 EVAPORATOR FANS CONTROL
4.10 ALARM FUNCTIONS
4.10.1 TEMPERATURE ALARMS
4.10.2 EXTERNAL ALARM (DIGITAL INPUT)
4.10.3 OPEN DOOR ALARM
4.11 FUNCTION OF KEYS "U" AND "DOWN/AUX"
5 PROGRAMMABLE PARAMETERS TABLE
6 PROBLEMS , MAINTENANCE AND GUARANTEE
6.1 SIGNALLING
6.2 CLEANING
6.3 GUARANTEE AND REPAIRS
7 TECHNICAL DATA
7.1 ELECTRICAL DATA
7.2 MECHANICAL DATA
7.3 MECHANICAL DIMENSIONS AND MOUNTING
7.4 FUNCTIONAL DATA
7.5 INSTRUMENT ORDERING CODE
1 - INSTRUMENT DESCRIPTION
1.1 - GENERAL DESCRIPTION

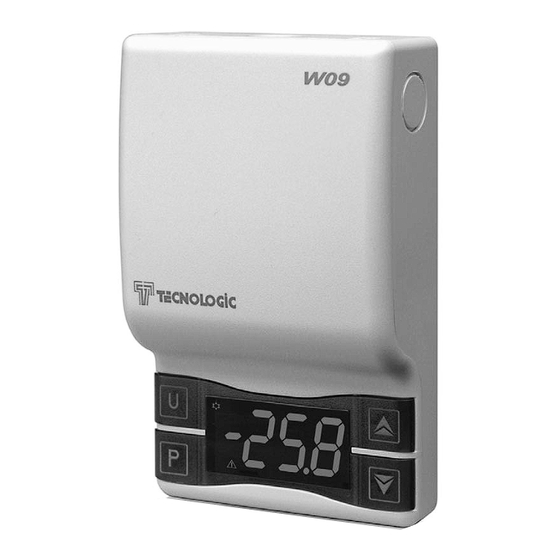

The model W09Y is a digital controller with microprocessor that is
information
typically used in cooling applications that have temperature control
with ON/OFF regulation and defrosting control at intervals time or
for its
at reaching temperature by stopping compressor or by means of
electrical heating or hot gas/reverse cycle.
The instrument has up to 3 relay outputs, up to 3 inputs for PTC or
NTC temperature probes and a digital input (aternative to an
temperature input), in addition can be equipped with an internal
buzzer that is the sound system for alarms.
The 3 outputs can be can all be configured for controlling the
compressor or the temperature control device, the defrosting
device, the evaporation fan or, alternatively any of the previous
functions, using an auxiliary device or an alarm.
The 3 inputs for temperature probes can be used to measure the
control temperature, the evaporator temperature, products or aux
temperature, while the digital input alternative to evaporator or aux
temperature input can be programmed to carry out various
functions such as door opened signal, defrosting commands,
selecting a different set of temperature regulations, external alarm
