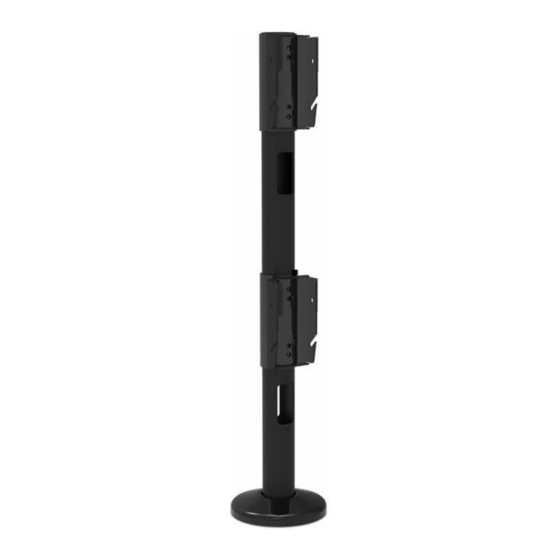

- Page 1 B-MIS38426 For Samsung Super Ultra Wide Curved Monitor 43": LC43J890DKNXZA 49": C49HG90DMN 49": LC49J890DKNXZA 60 lb (27 kg) 2019-08-26 #:090-9217-1...
- Page 2 WARNING ENG - Before installing make sure the supporting surface will support the combined load of the equipment and hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail. Never exceed the Maximum Load Capacity. Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
-
Page 3: Parts List
Parts (Before beginning, make sure you have all parts shown below). Parts List Description Part # desktop swivel base 090-1821 adaptor bracket 091-1211 right adaptor bracket 091-1217 left adaptor bracket 091-1218 support tube 091-1221 M6 x 6mm hex set screw 510-9150 M4 x 10mm socket pin screw 520-1060... - Page 4 H (3) N (4) M (4) slope nut fender washer 1/4-20 lock nut O (4) P (1) 1/4-20 x 3" threaded rod base plate R (4) 1/4-20 x 1.5" threaded rod Q (1) thrust washer T (2) 10 x 32mm x 1/2" hex set screw 2019-08-26 #:090-9217-1...
- Page 5 WARNING ENG - Wooden mounting surface requires a minumum of 3/4" thickness to hold screen securely. Drill 2" to 3" cord Use base plate as a managment hole in the template to mark location center of the square of holes. Drill four holes in formation.
- Page 6 60° 120° 180° Swivel restriction: refer to detail 1 through 4. Fasten two set screws 3/32" where indicated below to the outside of desired angle in steel base. Note: set screws must be bottomed out into base. Front 30° 30° Detail 1 0°...
- Page 7 WARNING ENG - Make sure that the supporting surface will safely support the combined load of the equipment and all attached hardware and components. CAUTION ENG - Installations to desktops that have a gap between two supporting boards are not acceptable mounting surfaces for the desktop swivel mount.
- Page 8 Thread another slope nut upside-down, Optional: for added security replace two of the about two turns from first slope nut as washers and locknuts with slope nuts. Hand shown. Avoid jamming both slope nuts tighten slope nuts onto two of the threaded rods together, doing so may make it difficult until snug against bottom of desk as shown.
- Page 9 J (4) I (4) B (2) 3/8" (10mm) F(2) 2019-08-26 #:090-9217-1...
- Page 10 Top display Note orientation of tab Samsung Super Ultra Wide Curved Monitor 43" (LC43J890DKNXZA), 49" (C49HG90DMN), 49" (LC49J890DKNXZA) sold separately Note orientation of tab Bottom display 2019-08-26 #:090-9217-1...
- Page 11 Top display G (4) G(4) Bottom display 2019-08-26 #:090-9217-1...
- Page 12 Attach foam strip to the top edge of bottom display. 2019-08-26 #:090-9217-1...
- Page 13 Top view Attach top display first. 10-1 Top view Attach bottom display. 2019-08-26 #:090-9217-1...
- Page 14 WARNING ENG Must support weight/front of display when disengaging quick release knobs from support tube. QUICK RELEASE; Pull knobs to disengage. 11-1 Support display, tilt forward. 2019-08-26 #:090-9217-1...
- Page 15 Optional: cable management 2019-08-26 #:090-9217-1...
-
Page 16: Limited Five-Year Warranty
(from date of the original installation of the product). At its option, Peerless-AV will repair or replace, or refund the purchase price of, any product which fails to conform with this warranty.
