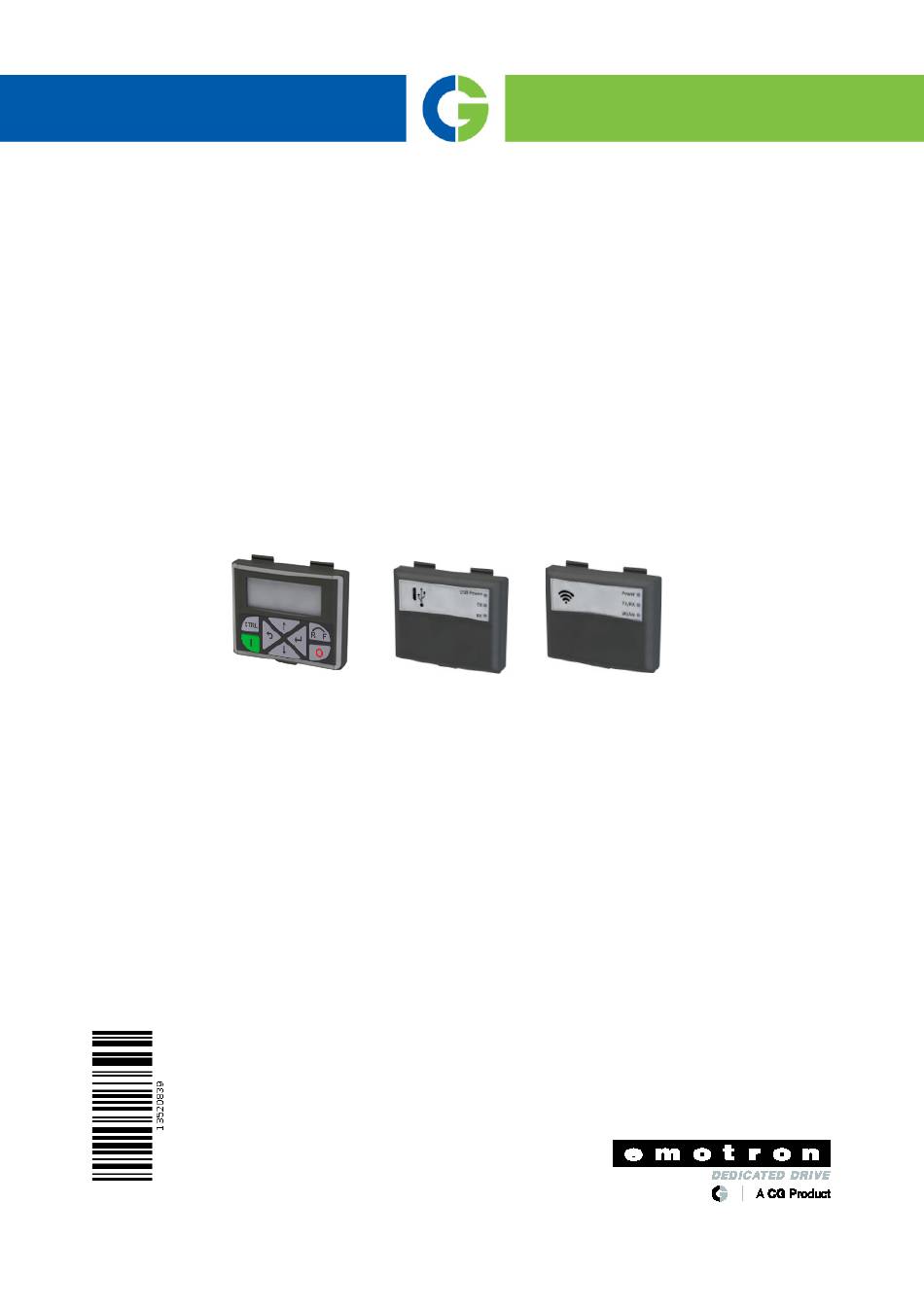

  • Page 1 Emotron VS10/VS30 AC drive Diagnostic modules Mounting Instructions...

  • Page 2: General Information

    General information First read, then start General information First read, then start WARNING! Read this documentation thoroughly before carrying out the installation and commissioning. ▶ Please observe the safety instructions! This accessory may be operated under the same conditions as the assigned products. Deviating or additional operating conditions are given in this document.

  • Page 3: Product Description

    Product description Keypad Product description Keypad Parameter setting and diagnostics Thanks to the intuitive operating structure, the navigation keys allow a quick and easy access to the most important parameters, either to configure functions or to query current values. Parameters and actual values are indicated on the easy-to-read display.
  • Page 4 Product description Keypad Function of the keypad keys in the parameterisation mode Actuation Condition Action Local keypad control active. Shortly Run motor. Display "LOC" Remote control active Deactivate keypad triggered stop. Display "REM" The motor remains at standstill. Display "KSTOP" Display changes from "KSTOP"...
  • Page 5 Product description USB module USB module Interface to the PC The USB 2.0‑connecting cable is used to connect the inverter with the "EASY Starter" Emotron Commisioning & Maintenance Tool. The "EASY Starter" serves to configure the inverter via graphical interfaces. They create diagnostics with trend functions or monitor parameter values. Parameterising without supplying the inverter with voltage: If you connect the inverter without hub directly to the PC, the USB interface of the PC is sufficient for the voltage supply.

  • Page 6: Wlan Module

    Product description WLAN module WLAN module The wireless interface Wireless communication with the inverter. • via a PC with the «EASY Starter« Emotron Commisioning & Maintenance Tool WARNING! ▶ This product must not be collocated or operated in conjunction with any other antenna or transmitter.
  • Page 7 Product description Mounting Mounting steps Mounting Mounting steps The mounting steps are the same for all diagnostic modules and the blanking cover. This example shows the installation of the Keypad. 1. Hook the diagnostic module into the upper mounting slots. 2.
  • Page 8 © 07/2016 |13520839 | 4.0 / 01-6212-01R2 CG DRIVES & AUTOMATION Mörsaregatan 12, Box 222 25 SE- 250 24 Helsingborg, Sweden +46 42 16 99 00 Info: info.se@cgglobal.com Order: order.se@cgglobal.com...
