EUROMEX Microscopen B.V.
HOLLAND
www.euromex.com

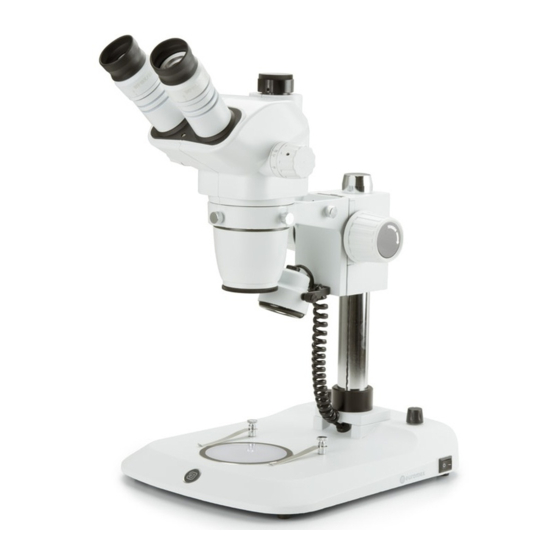

INSTRUCTION MANUAL
EUROMEX
STEREOMICROSCOPES
NexiusZoom-Range
and
NexiusZoom EVO-Range
100 Lauman Lane, Suite A, Hicksville, NY 11801
Tel: (877) 877-7274 | Fax: (516) 801-2046
Email: Info@nyscopes.com
www.microscopeinternational.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Euromex NexiusZoom-Range
Summary of Contents for Euromex NexiusZoom-Range

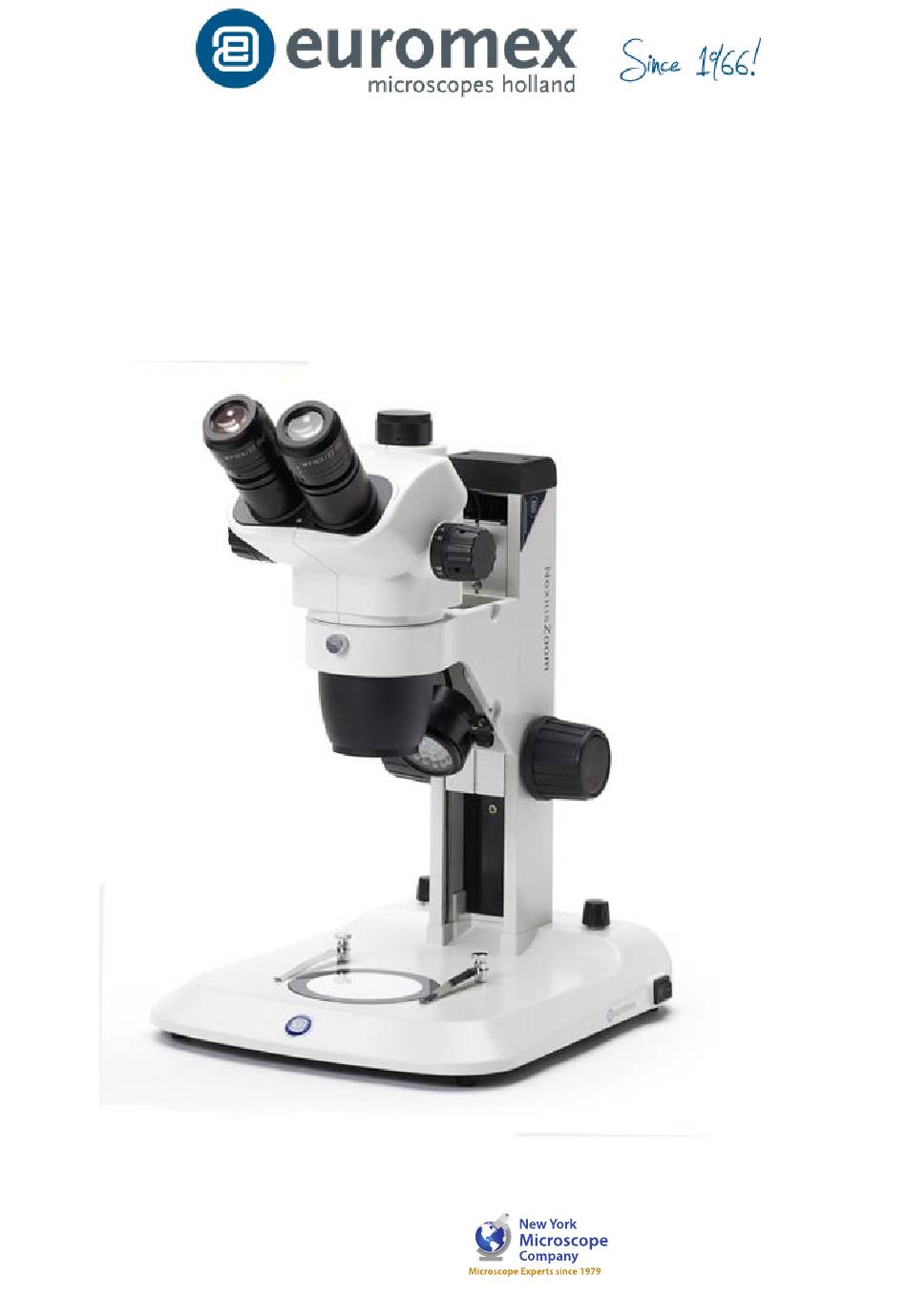

- Page 1 INSTRUCTION MANUAL EUROMEX STEREOMICROSCOPES NexiusZoom-Range NexiusZoom EVO-Range EUROMEX Microscopen B.V. 100 Lauman Lane, Suite A, Hicksville, NY 11801 HOLLAND Tel: (877) 877-7274 | Fax: (516) 801-2046 Email: Info@nyscopes.com www.microscopeinternational.com www.euromex.com...
- Page 2 1.0 Introduction With your purchase of a EUROMEX NexiusZoom-Range or NexiusZoom EVO-Range stereo microscope you have chosen for a quality product. The EUROMEX NexiusZoom-Range and NexiusZoom EVO-Range stereo are developed for professional industrial purposes, scientific research and education because of the excellent optical and mechanical properties while very...
- Page 3 NexiusZoom NZ.1903-S...
- Page 4 360. Each type has a diopter adjustment ring on both eyepiece tubes. 4.2 Optical specifications The microscopes of the NexiusZoom-Range are equipped with 2 zoom objectives and a pair of wide field WF10x/22 eyepieces. In the tabel below all available models are listed.
- Page 5 4.3 Object stage The stand is equipped with an object stage with a semi transparent stage plate (O) and 2 object clips (M). 4.4 Focusing With the focusing knobs (K) the object can be sharply focussed. 4.5 Magnification adjustment NexiusZoom The microscopes are equipped with 2 achromatic zoom objectives.
- Page 6 5.0 Preparing the microscope for use Take the stereo microscope out of its packing and put it on a firm stable table. Connect the power cable to the mains supply and switch on the microscope. Place the eyeshades onto the eyepieces. Sit comfortably down behind the microscope and take a relaxed position while viewing through the eyepieces (A).
- Page 7 6.1 Setting the eyepieces in order to have a sharp image over the complete zoom range...
- Page 8 6.2 Photo and video For trinocular models, slide the camera with mounted c-mount adapter into the 23,2mm tube of the phote port. For focussing loosen the ring (A) and slowly unscrew the tube (B) you will be able to match parfocality of the camera with the view through the eyepieces. Adjustment can be made by raising/lowering the height of the camera (C).
- Page 9 To Mount the CMEX camera’s on an binocular microscope please do the following: 1) Remove one of the eye pieces of the microscope. First un-screw the Philips type locking screw that secures the eye piece. 2) Insert the 30,5mm adapter into the eye-piece tube, rubber ring* facing down. 3) Insert the camera into the adapter tube.
- Page 10 Never put xylol or alcohol directly on the lens! Please note that Euromex offers a special microscope cleaning kit: PB.5275 It is not necessary – and not recommended – to clean the lens surfaces at the inner side of the objectives.
- Page 11 7.2 Replacing the fuse To change the fuse, following the procedures below: 1. Remove the power cord from the back of the microscope 2. Locate the fuse compartment, which has a Fuse image. It is typically located beneath the power connector. 3.
- Page 12 8.0 Optional accessories NZ.5302 NexiusZoom binocular head with eyepieces NZ.5303 NexiusZoom trinocular head with eyepieces NZ.6010 Pair HWF 10x/22 mm eyepieces NZ.6015 Pair HWF 15x/16 mm eyepieces NZ.6020 Pair HWF 20x/12 mm eyepieces NZ.6110 HWF 10x/22 mm eyepiece with 1/100 mm micrometer NZ.6099 Pair of eyeshades NZ.8905 Auxiliary lens 0.5x, working distance 187 mm NZ.8907 Auxiliary lens 0.75x, working distance 125 mm...
- Page 13 100 Lauman Lane, Suite A, Hicksville, NY 11801 Tel: (877) 877-7274 | Fax: (516) 801-2046 Email: Info@nyscopes.com www.microscopeinternational.com NZ and EVO EV2...
