Multifunctional Unit 5 in 1

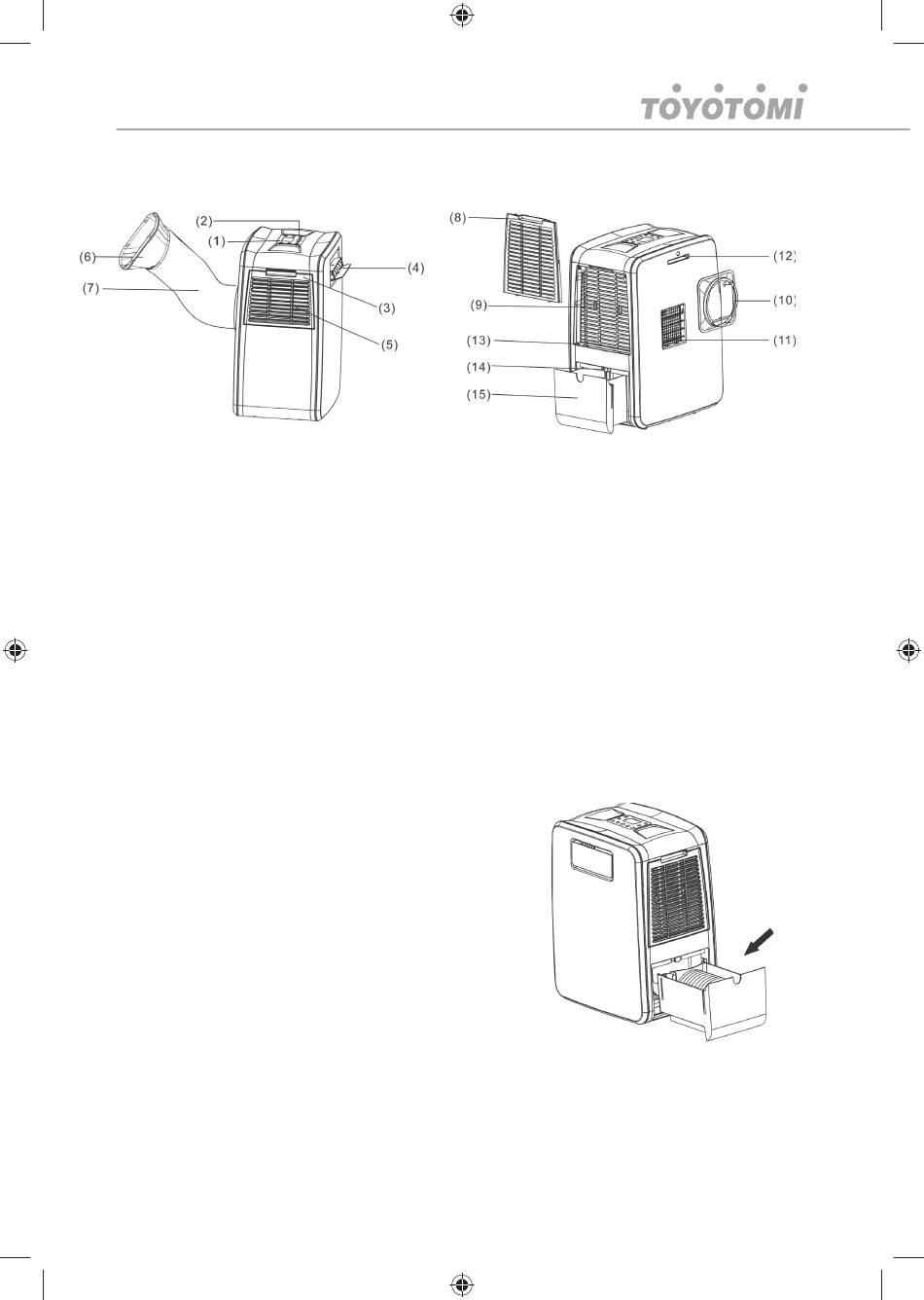

2. PARTS LIST

1. Control panel
2. Remote control sensor
3. Washable mesh fi lter
4. Cold air outlet with swinging louvres
5. Cold air inlet
6. Fishtail connector
7. Hot air exhaust hose
8. Washable mesh fi lter

INSTALLATION

Warning Before using this unit, please keep it upright for at least 3-4 hours.
This unit can easily be moved from one room to another.
While moving the unit please note that it must always be kept upright and then placed on an
even surface.
Unpacking
Open the box and remove all the packing out of way.
Grip the unit by the carry handles located on either sides
the unit and carefully lift until it slides out of the foam base.
Open the water tank (15) and remove the exhaust hose
as in picture.
Remove the side mount clip (10) from hot air inlet (9)
Install the exhaust hose (7) if operating the unit in vented
air conditioning mode or spot drying mode

PACKAGE CONTENTS

1 / Air Treatment unit
3 / Side mount clip (10)
9. Hot air inlet (mount clip (10) storage)
10. Hot air outlet hose mount adapter
11. Hot air outlet with directional louvres
12. Remote control slide in slot
13. Water fi lling port (humidifi er function)
14. Water drain port / Rubber water stopper
15. Dehumidifi er water tank
2 / Remote control
4 / Hose and window kit
