elero QuinTec-868 Operating Instructions

QuinTec-868

Operating instructions

(translation)
Follow these instructions to ensure proper
and safe use. Retain for future use.
General
• 5-channel wall transmitter with 5 individual
channels and 1 central channel for operating
roller shutters, venetian blinds and awnings
• Suitable for standard device deployment
50 x 50 mm
• Radio frequency for reliable transmission
• Large operator buttons
• Display of system statuses using LEDs
Product contents
• Wall transmitter module
• CR 2032 battery (installed)
• elero frame
• Black fixing plate with fixing set (wall plugs
and screws)
• Operating instructions

Technical data

Power 3 V
supply battery, CR 2032
Radio frequency [MHz] 868
(band)
Transmission power
[mW] | [dBm] ≤ 500 | ≤ 10
Number of channels 5 + 1
Connections, terminals None
Operating temperature 0 ... 50
[°C]
Protection class (IP) 20
Dimensions (WxHxD)
[mm]
Wall transmitter module 50 x 50 x 9.6
Fixing plate approx. 75 x 75
elero frame approx. 80 x 80
Weight [g] approx. 50
Type of mounting Wall mounting
Item number 286550001
Safety instructions
Please read this operating manual carefully
as the procedure in this manual is a prere-
quisite for correct use of the product.
Only operate the transmitter within sight
A
of the devices being controlled.
It is not recommended to operate all drives
simultaneously. For safety reasons, at least
one drive should be controlled independently
from others to provide a safe escape route
in the event of an emergency.
The figures in this operating manual are for
B
illustration purposes only. The illustrations
may differ from your product with respect to
minor details and are provided for general
information only.
elero GmbH continuously strives to improve
all products. As a result, the specifications,
features and technology of this product may
be changed at any time. The information in C
this operating manual is based on current
information at the time of publication.
No claims can be derived from the technical
data, images and information in this opera-
ting manual.
D
Intended use
Foreseeable misuse
Only use in dry rooms for controlling elero
radio receivers. Do not perform any modi-
fications to the device. Do not operate the
transmitter inadvertently or carelessly. The
manufacturer will not assume liability for
damage caused by the above.
Assembly / commissioning
Important: The battery is not activated at
delivery. For commissioning, remove the
insulating strip Ⓐ .
Make sure the radio link is unobstructed.
Avoid installing the unit in a distributor box
or metal housing, in direct proximity to large
metal objects, or on or close to the floor.
Check the installation surface for hidden
cables, etc.
Installation:
1. Attach the fixing plate to the installation
location using the screws and wall plugs.
2. For programming the wall transmitter to
the radio control or receiver:
see "Programming the transmitter / channel".
3. Insert the wall transmitter and the elero
frame into the fixing plate at a right angle
with the wall.

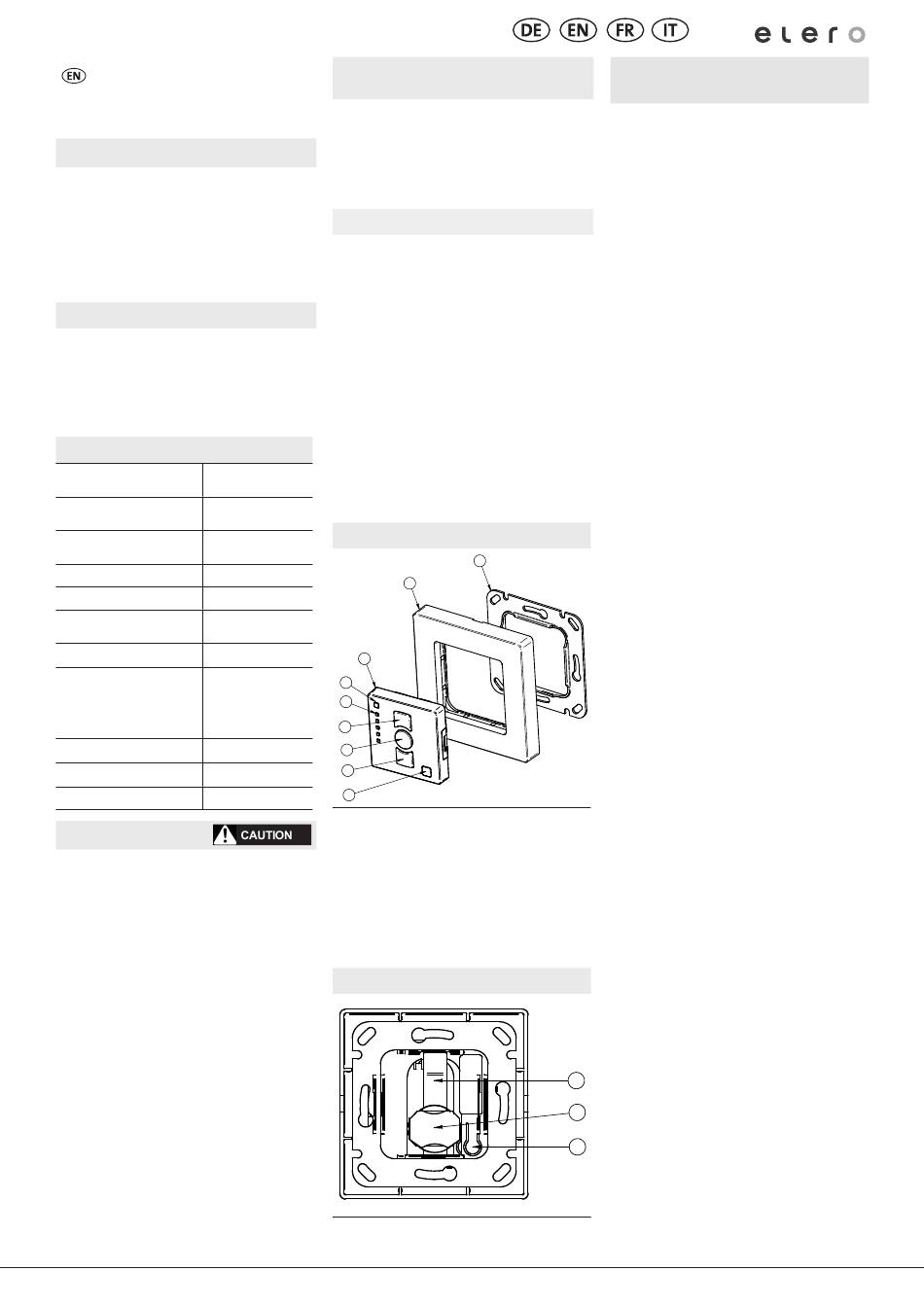

Control elements, front
2
3
4
5
6
7
8
9
① Fixing plate
② eleroframe
③ Wall transmitter module
2
1
④ LED status and operating mode
⑤ LEDs channels 1 to 5
⑥ UP ▲ button
⑦ STOP ■ button
⑧ DOWN/CLOSE ▼ button
⑨ Selection button for channel and operating
mode
Back / battery replacement
Ⓐ Insulating strip
Ⓑ Battery compartment with marking
Ⓒ Programming button P
Asynchronous
programming mode
Programming the transmitter / channel for
multiple receivers
Requirement: The receiver is installed
Programming can only be performed in one selec-
ted channel. Several receivers can be program-
med to one channel.
1. Switch the circuit off and on again: The receiver
will remain ready to program / in programming
mode for approx. 5 minutes.
2. Position yourself with the transmitter to be pro-
grammed within sight and radio range of the blind.
3. Press the [P] programming button for approx.
1 second.
The blind will move up and down for approxima-
tely 2 minutes (programming mode).
If several receivers are connected to the same
feed line, then all are simultaneously ready to
program / in programming mode. The blinds will
start moving up and down randomly. The longer
programming is delayed, the greater the offset
will be. Individual receivers can now be assigned
to the respective channel of the transmitter.
4. Immediately (maximum 1 second) after the
start of upward travel, press the [UP ▲] button.
The blind will stop for a short time.
5. Immediately (maximum 1 second) after the
start of downward travel, press the
[DOWN/CLOSE ▼] button. The blind will stop.
Important: You can stop receivers that you
do not want to program by pressing the STOP
button ■ on an already programmed transmit-
1
ter. You can now make the channel assignment/
change without having to disconnect the indivi-
dual receivers.
6. If the blind moves in the opposite direction or the
blind does not stop after programming, delete
the transmitter from the receiver and repeat the
programming process.
7. QuinTec-868 is now programmed.
Stopping programming mode in the transmitter
Press the [STOP ■] button for at least 6 seconds
until the LED status flashes orange.
Programming additional transmitters /
channels to one receiver
1. Press the [UP ▲]+[DOWN/CLOSE ▼]+[P]
buttons simultaneously for 3 seconds on a trans-
mitter that has already been programmed to the
receiver. The LED status and operating mode ④
goes out after about 3 seconds. The receiver will
remain in programming mode for approximately
3 4
5 minutes. Press the programming button [P] on
the transmitter to be programmed for approxi-
mately 1 second.
2. Immediately (maximum 1 second) after the start
of upward travel, press the [UP ▲] button.
The LED status and operating mode ④ lights
up briefly. The blind stops, starts moving again,
stops again, and then moves downwards.
3. Immediately (maximum 1 second) after the
start of downward travel, press the
[DOWN/CLOSE ▼] button.
The indicator light will light up briefly.
The blind will stop.
4. The transmitter or the transmitter channel has
been programmed.
Deleting individual transmitters / channels
A
1. Press the [STOP ■]+[P] buttons simultaneously
and hold them down for approx. 6 seconds.
B
2. The indicator light will light up orange and
then red.
C
Delete all transmitters and receivers
To perform a factory reset, all selected drives must
be supplied with power.
1. Press the [UP ▲]+[DOWN/CLOSE ▼]+
[STOP ■]+[P] buttons and hold them down for at
least 6 seconds.
2. LED status ④ shines orange first and then red.
5 6
138210501_EN_0919
