TOOLS REQUIRED

Tools
• 7/16" Wrenches and / or Socket / Ratchet
• Powered Screwdriver
3

INSTALLATION

FOOTREST

(Installation is made easier by the use of a
powered screwdriver)

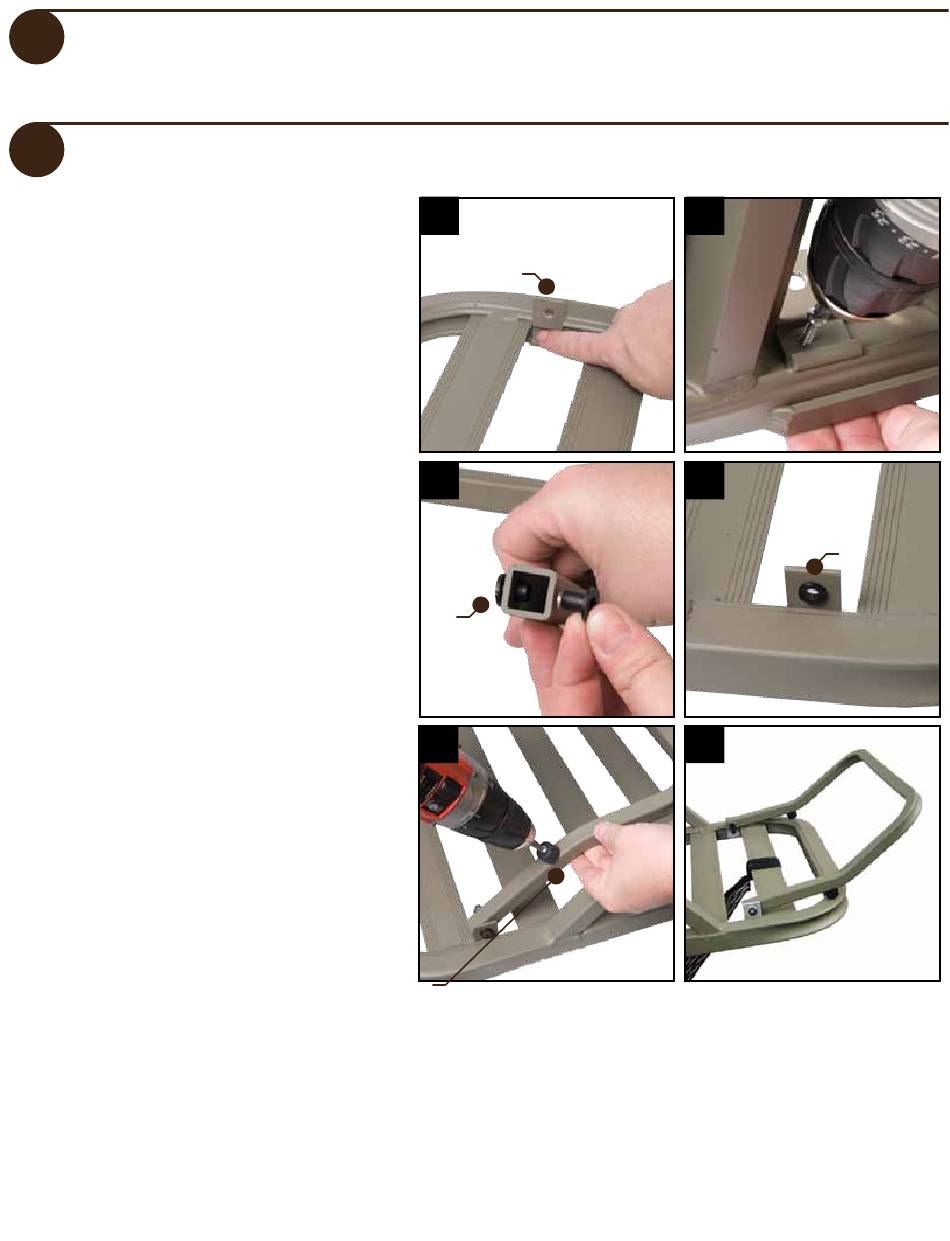

1. Insert the Footrest Bracket into the perimeter tube
as shown in figure 1. This bracket should be placed
between the first and second rung from the front of
the platform.
2. Secure the bracket with one self tapping screw as
shown in figure 2. Repeat for the other side.
3. Insert two of the long shank bushings into the
pre-punched holes in each end of the footrest tube as
shown in figure 3.
4. Insert the short shank bushing into the outside of
each footrest bracket from Step 1 (See figure 4).
5. Line up the footrest bar on the INSIDE of the two
footrest brackets and secure one side using the 1 1/2"
bolt and lock nut. The gap between the other side of
the bar and the bracket is normal at this point.
6. Insert the remaining 1 1/2" bolt through the other
side of the footrest bar and pull the bar to the side so
that you can tighten the lock nut. If squeaking occurs,
loosen the bolts by 1/2 turn.
7. Fold the bar down and note where it crosses the
stand frame - make a mark on the footrest at this
point. Fold the bar back up. Secure the two rubber
bumpers at the mark using the two remaining self
tapping screws as shown in figure 5. Your finished
footrest should look like figure 6.
1
3
LONG
SHANK
BUSHING
(PN 10640)
5

FOOTREST BUMPERS

(PN 10668)
Use
Footrest Attachment Bolts / Nuts
Footrest self tapping screws

FOOTREST BRACKET

(PN 10122)
2
4
SHORT
SHANK
BUSHING
(PN 10641)
6
