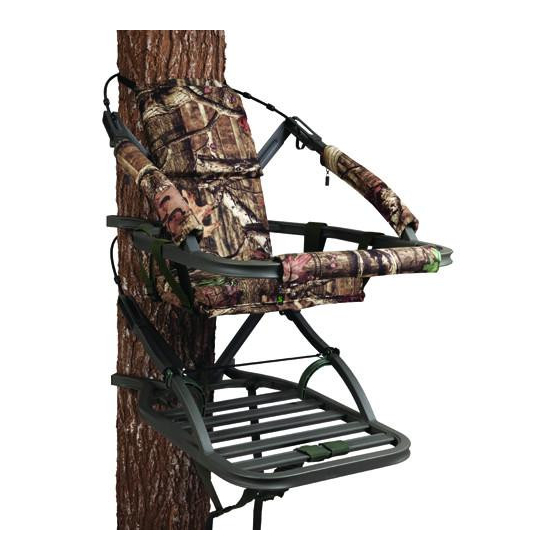

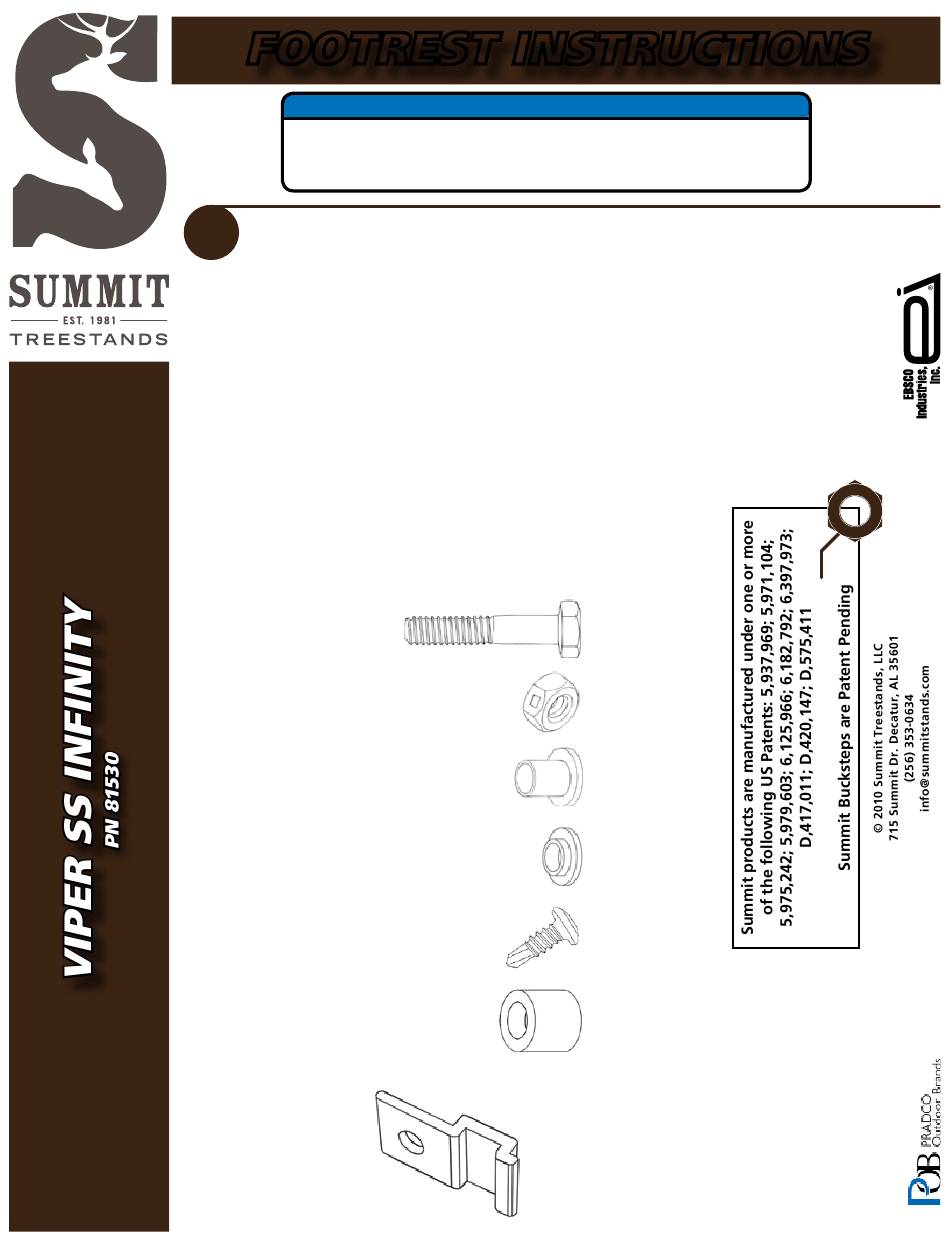

FOOTREST INSTRUCTIONS
These instructions are only for installing the included footrest on the
Dick's Viper SS Infinity (PN 81530). ALWAYS refer to the Viper SS
Infinity Written Instructions for warnings and usage instructions.
1

PARTS LIST

Please call 256-353-0634 or visit http://www.summitstands.com/contactus/
if you have any questions, if you need replacement parts, or if you have any missing parts.

BOX CONTENTS

In addition to the items listed on Page 2 of the 2010
Viper SS Instructions, your treestand should include
the following:
PN
DESCRIPTION
HAT
40123
FOOTREST BAR
22029
FOOTREST HARDWARE PACKET
22029 - FOOTREST HARDWARE KIT
PN
DESCRIPTION
10601
1 3/4" BOLT, 1/4x20
10612
LOCK NUT, 1/4x20
10640
LONG SHANK BUSHING
10641
SHORT SHANK BUSHING
10635
SELF TAPPING SCREW
10668
FOOTREST BUMPER
10122
FOOTREST MOUNTING BRACKET
NOTICE
QTY
1
1
1
QTY
2
2
4
2
4
2
2
FORM# 18054, 6/2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIPER SS INFINITY and is the answer not in the manual?

Questions and answers

Summary of Contents for Summit VIPER SS INFINITY

  • Page 1: Parts List

    FOOTREST INSTRUCTIONS NOTICE These instructions are only for installing the included footrest on the Dick’s Viper SS Infinity (PN 81530). ALWAYS refer to the Viper SS Infinity Written Instructions for warnings and usage instructions. PARTS LIST Please call 256-353-0634 or visit http://www.summitstands.com/contactus/ if you have any questions, if you need replacement parts, or if you have any missing parts. BOX CONTENTS In addition to the items listed on Page 2 of the 2010 Viper SS Instructions, your treestand should include the following: DESCRIPTION HAT 40123 FOOTREST BAR 22029 FOOTREST HARDWARE PACKET 22029 - FOOTREST HARDWARE KIT DESCRIPTION 10601 1 3/4” BOLT, 1/4x20...
  • Page 2 TOOLS REQUIRED Tools • 7/16” Wrenches and / or Socket / Ratchet Footrest Attachment Bolts / Nuts • Powered Screwdriver Footrest self tapping screws INSTALLATION FOOTREST (Installation is made easier by the use of a powered screwdriver) FOOTREST BRACKET 1. Insert the Footrest Bracket into the perimeter tube (PN 10122) as shown in figure 1. This bracket should be placed between the first and second rung from the front of the platform. 2. Secure the bracket with one self tapping screw as shown in figure 2. Repeat for the other side. 3. Insert two of the long shank bushings into the pre-punched holes in each end of the footrest tube as shown in figure 3. 4.
