ChengDu XinHeCheng Technology Co.,Ltd
MACH3 Breakout Board
Model No.:
<1>
www.cdxhctech.com
MKX-V Specification
USB 4-axis Card
System :MACH3
mode l:MK4- V
2016-9-13
QC:01
Size:184x127x30mm
MK3-V：USB Cable，3 Axis Breakout Board
MK4-V：USB Cable，4 Axis Breakout Board
MK6-V：USB Cable，6 Axis Breakout Board
SUPPORT CNC SYSTEM
MACH3 Only
电源0V
电源24V
:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MACH3 MK-V Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WiXHC MACH3 MK-V Series

Summary of Contents for WiXHC MACH3 MK-V Series

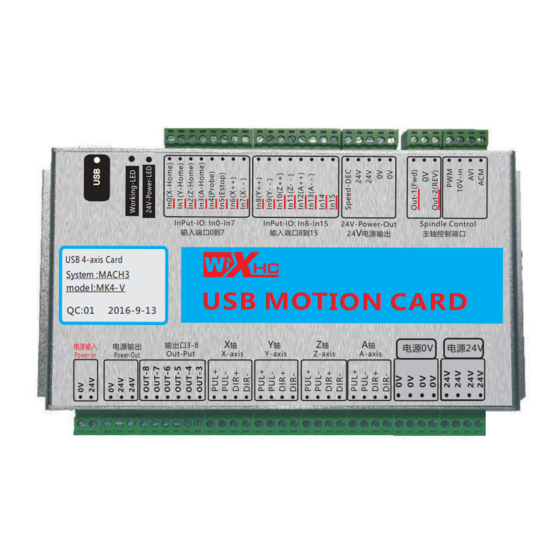

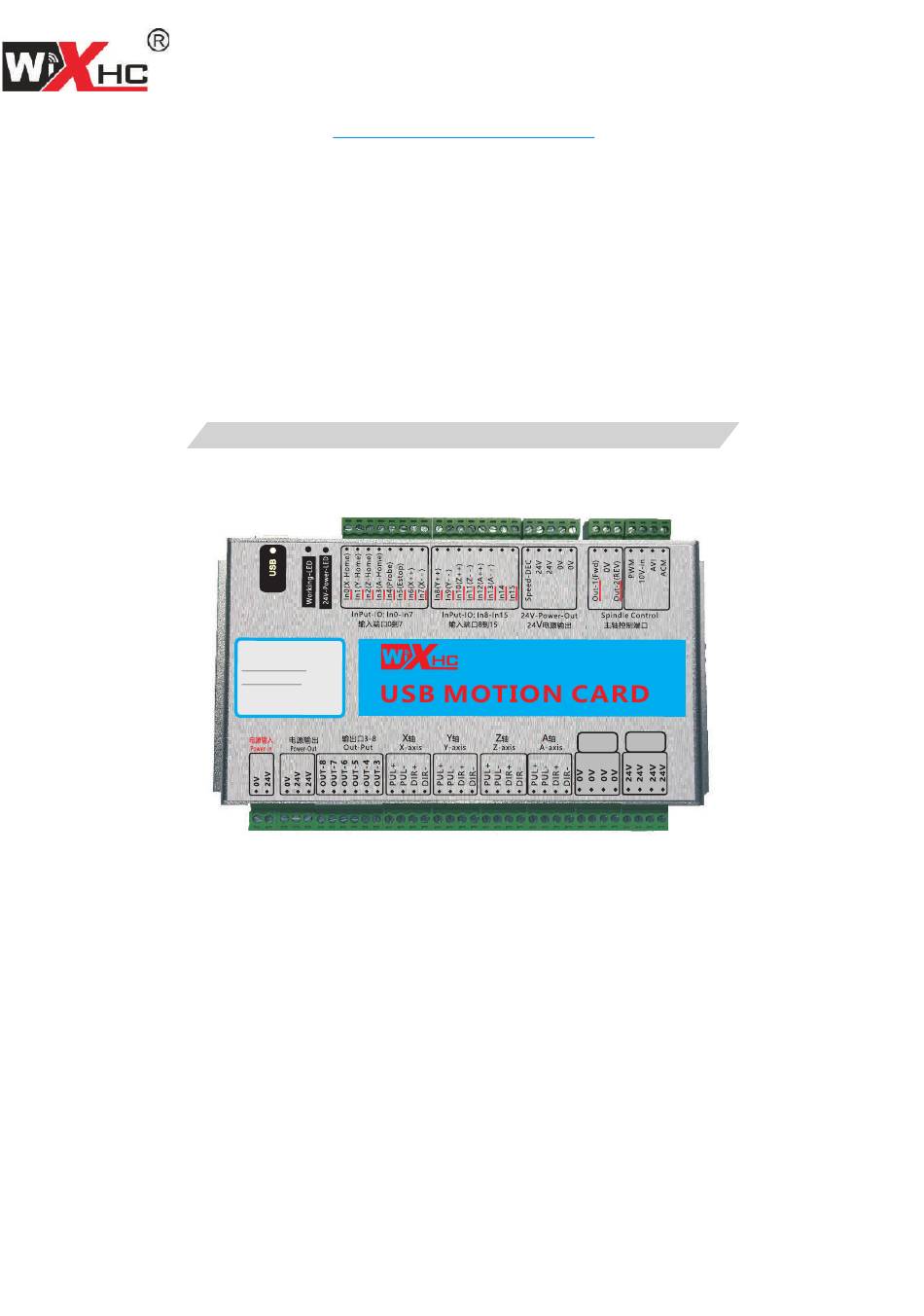

  • Page 1 ChengDu XinHeCheng Technology Co.,Ltd www.cdxhctech.com SUPPORT CNC SYSTEM MACH3 Only MACH3 Breakout Board MKX-V Specification USB 4-axis Card System :MACH3 mode l:MK4- V 2016-9-13 QC:01 电源0V 电源24V Size:184x127x30mm MK3-V：USB Cable，3 Axis Breakout Board Model No.: MK4-V：USB Cable，4 Axis Breakout Board MK6-V：USB Cable，6 Axis Breakout Board <1>...
  • Page 2 ChengDu XinHeCheng Technology Co.,Ltd www.cdxhctech.com Hardware Instruction 内 部 原 理 图 DC/DC Input port circ uit Power in Output port circuit 16 IO Inp ut and DEC inp ut DAC AND PW M ou tput 8 IO ou tput DC/DC Power in 8 IO ou tput...
  • Page 3 ChengDu XinHeCheng Technology Co.,Ltd www.cdxhctech.com Hardware Instruction External Dimension <3>...
  • Page 4 ChengDu XinHeCheng Technology Co.,Ltd www.cdxhctech.com Hardware Instruction Singal Instruction Input signal Offer 16pcs Input IO, All IO active low, input current 5mA, support 6-24V signal input. Signal explanation as follow: X-HOME：X Axis home signal input, corresponding MACH3 input IO is：P1.0 Y-HOME：Y axis home signal input, corresponding MACH3 input IO is：P1.1 Z-HOME：Z Axis home signal input, corresponding MACH3 input IO is：P1.2 A-HOME：AAxis home signal input, corresponding MACH3 input IO is：P1.3...
  • Page 5 ChengDu XinHeCheng Technology Co.,Ltd www.cdxhctech.com Hardware Instruction Specification Power Supply Before make it work, you need to offer DC24V power to our Breakout board. Output MKX-V offer 8pcs expandable Output IO, all IO active low; Drive current 50mA,Support max 24V signal. Spindle forward:OUT1：Corresponding MACH3output configuration is P1.0 Spindle reverse：OUT2:Corresponding MACH3 Output configuration is P1.1 Expandable Output IO 3-8：OUT3-8：Corresponding MACH3 Output configuration...
  • Page 6 ChengDu XinHeCheng Technology Co.,Ltd www.cdxhctech.com Main function and advantages Features: ★ Fully supporting all Mach3 versions ★ Support save data when power off ★ Support spindle speed feedback ★ Support 3 meters USB cable ★ Supports Up 6-axis ★ Maximum step-pulse frequency is 2000KHz ★...
  • Page 7 ChengDu XinHeCheng Technology Co.,Ltd www.cdxhctech.com Simp le connection description Application Connection Diagram USB Motion Control Card Application MACH3 Input switch Spindle TOOLS Spindle drive probe USB 4-axis Card System :MA CH 3 model :MK4-V QC:01 2016-9-13 电源0V 电源24V Drive Relays Motor Support: 3-axis or 4-axis, or 6-axis Mk3-V: 3-axis;...
  • Page 8 ChengDu XinHeCheng Technology Co.,Ltd www.cdxhctech.com Signal Description 16 Input port Spindle control To increase the Anti-interference, please contact the machine bed PE Flash: that is working properly, Slow flash: driver is not installed properly Off: The USB connection is not normal USB 4-axis Card System:MACH3 model:MK4-V...
  • Page 9 ChengDu XinHeCheng Technology Co.,Ltd www.cdxhctech.com Wiring diagram shows NOTE: If the inverter is turned on, the control card is not working properly because of interference caused by the inverter; Replace inverter. Mechanical switch or Input IO Connect NPN (PNP) Photoelectric switch Input signal must be active low Inverter Computer...
  • Page 10 ChengDu XinHeCheng Technology Co.,Ltd www.cdxhctech.com Electrical Characteristics Parameter Description Isolated open collector output; 5V, 20mA axis output Drive Current control: Pulse + direction output Drive 2000KHZ Output frequency axes MK3-V:3-axis;MK4-V:4-axis;MK6-V:6-axis Isolation Voltage 3.5KV Analog voltage output 0—10V Spindle inverter output: PWM output 5V,1KHZ,Duty;0-100% 3 types of output...
  • Page 11 ChengDu XinHeCheng Technology Co.,Ltd www.cdxhctech.com Install your mach3 software to PC which you control your CNC Machine. Connect our usb cable between our card and your PC, wait a few minutes Until usb driver finish installation automatically. Copy our configuration and driver files to mach3 folder we required. Che ck ou r wiring file on the man ua l or spe ci ficat ion , con ne ct ou r car d to you r step pe r/ Ser vo motor dr iver cor rect ly.
  • Page 12 ChengDu XinHeCheng Technology Co.,Ltd www.cdxhctech.com Power supply wiring Wiring NO.1：Offer Power suppl y to card DC24V,0.5A DC 0V_GND DC 24V-INPUT Before using our breakout board, please offer DC24V power supply to make it works, Current 0.5A NO.2：Drive wiring: Support Stepper/Servo drive,Differential output signal <12>...
  • Page 13 ChengDu XinHeCheng Technology Co.,Ltd www.cdxhctech.com Wiring NO.3：Spindle control-Inverter connection <13>...
  • Page 14 ChengDu XinHeCheng Technology Co.,Ltd www.cdxhctech.com Wiring Spindle Control:Stepper/Servo Drive 5V and 0V please connect DIR- DIR+ to our breakout board 5V and PUL- PUL+ NO.4： Output Relay Interface：OUT3 to OUT8 Relay Interface Relay Output active low,24v/50 mA <14>...
  • Page 15 ChengDu XinHeCheng Technology Co.,Ltd www.cdxhctech.com Wiring input Interface：16 input port;In0 to In15,limit switch.Active Low NO.5： <15>...
  • Page 16 ChengDu XinHeCheng Technology Co.,Ltd www.cdxhctech.com Ne w Function Break continue: when the control card suddenly power off, the control card chip automatically save the current G code line number. Control card plug-in will display saved the number of lines. 。 Waiting until the control card is connected to the power supply next, load the G code program, click the power to continue to the break continue button, Mach3 software automatically from the last save...
  • Page 17 ChengDu XinHeCheng Technology Co.,Ltd New Function Spi nd le sp eed feed ba ck spi ndl e speed feedback thr ough the sens or feedback to Input por t“Speed- DEC”, and then di spl ay the RPM speed on the Mach3 sof twar e. Maxi mum suppor t feedback input Pul se frequency 20K HZ .
