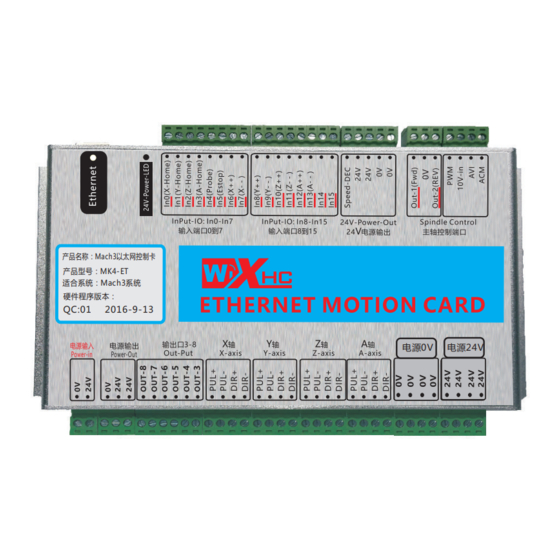

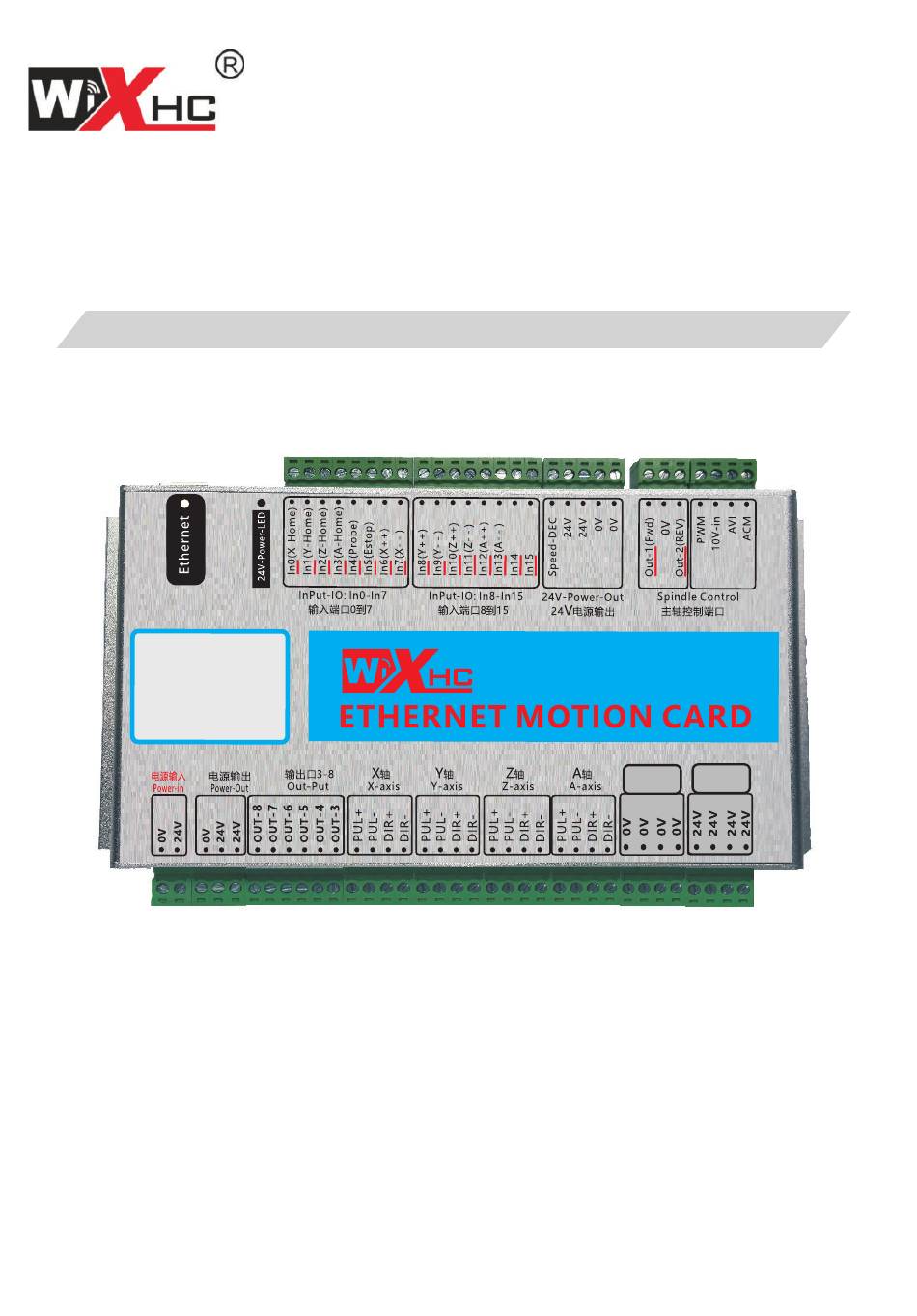

MACH3 Ethernet Breakout Board
产品名称：Mach3以太网控制卡
产品型号：MK4- ET
适合系统：Mac h3系统
硬件程序版本：
QC:01
MK3-ET：3 Axis Ethernet breakout board
MK4-ET：4 Axis
MK6-
- 1 -
MKX-ET Specification
2016-9-13
Product Size：184x127x30mm
：6 Axis Ethernet breakout board
ET
Ethernet breakout board
Support CNC System
Mach3 only
电源0V
电源24V
:
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for WiXHC MACH3 MK-ET Series
Summary of Contents for WiXHC MACH3 MK-ET Series
- Page 1 Support CNC System Mach3 only MACH3 Ethernet Breakout Board MKX-ET Specification 产品名称：Mach3以太网控制卡 产品型号：MK4- ET 适合系统：Mac h3系统 硬件程序版本： 2016-9-13 QC:01 电源0V 电源24V Product Size：184x127x30mm MK3-ET：3 Axis Ethernet breakout board MK4-ET：4 Axis Ethernet breakout board ：6 Axis Ethernet breakout board MK6- - 1 -...
-
Page 2: English Manual
ChengDu XinHeCheng Technology Co.,Ltd English Manual Features: ★ Fully supporting all Mach3 versions,support Windows PC, ★ Only support Ethernet interface,Need to set IP address (Please read the last page for reference) ★ Support save data when power off ★ Support spindle speed feedback ★... - Page 3 ChengDu XinHeCheng Technology Co.,Ltd Simp le connection description Application Connection Diagram Ethernet Motion Control Card Application MACH3 Input switch Spindle TOOLS Spindle drive probe 产品名称：Mach3以太网控制卡 产品型号：MK4- ET 适合 系统 ：Mach 3系统 硬件 程序 版本 ： QC:01 2016-9-13 电源0V 电源24V Drive Relays Motor Support: 3-axis or 4-axis, or 6-axis...
-
Page 4: Signal Description
ChengDu XinHeCheng Technology Co.,Ltd Signal Description Spindle control 16 Input port Light: Work fine Slow flash: Connect successfully Off: The USB connection is not normal 产品名称：Mach3以太网控制卡 产品型号：MK4- ET 适合系统：Mac h3系统 硬件程序版本： QC:01 2016-9-13 电源0V 电源24V power In X-axis Z-axis Y-axis A-axis... - Page 5 ChengDu XinHeCheng Technology Co.,Ltd Wiring diagram shows NOTE: If the inverter is turned on, the control card is not working properly because of interference caused by the inverter ; Replace inverter. Mechanical switch or Input IO Connect NPN (PNP) Photoelectric switch Input signal must be active low Inverter Computer...
-
Page 6: Electrical Characteristics
ChengDu XinHeCheng Technology Co.,Ltd Electrical Characteristics Parameter Description Isolated open collector output; 5V, 20mA axis output Drive Current control: Pulse + direction output Drive 2000KHZ Output frequency axes MK3-ET:3-axis;MK4-ET:4-axis;MK6-ET:6-axis Isolation Voltage 3.5KV Analog voltage output 0—10V Spindle inverter output: PWM output 5V,1KHZ,Duty;0-100% 3 types of output modes... - Page 7 ChengDu XinHeCheng Technology Co.,Ltd Software installation First,Install Mach3 software to your PC. Second, copy our driver into mach3.Check readme file in the CD Check our wiring for ref er ence, connec t our car d to your machi ne cor rect ly Connect your PC to our card by using network cable After these steps, you can open your Mach3 software for operating Please take a look at ma ch3 software parame ters setting,Step per and...
- Page 8 ChengDu XinHeCheng Technology Co.,Ltd MKX Wiring Offer power supply to our card DC24V,0.5A DC 0V_GND DC 24V-INPUT Drive connection. Our card support Servo or stepper drive, Differential output signal - 8 -...
- Page 9 ChengDu XinHeCheng Technology Co.,Ltd MKX Wiring Inverter wiring for reference NO.3：...
- Page 10 ChengDu XinHeCheng Technology Co.,Ltd MKX Wiring Spindle connected stepper or servo drives DIR- DIR+ 5V and 0V connect to our card 5V and PUL- PUL+ Output Relay Interface：OUT3 to OUT8 Relay Interface NO.4： Relay Output active low,24v\ 50 mA -10-...
- Page 11 ChengDu XinHeCheng Technology Co.,Ltd MKX Wiring nput Io：16 nput port;In0 to In15.Active Low NO.5： -1 1 -...
- Page 12 ChengDu XinHeCheng Technology Co.,Ltd New Function G-code line quantity save function When our control card suddenly power off, the control card chip automatically save the current G code line number. Control card plug-in display save the number of lines. Wait until the control card is connected to the power supply next, load the G code program, click the power to continue to the break continue button, Mach3 software automatically from the last save the number of lines to start running.
- Page 13 ChengDu XinHeCheng Technology Co.,Ltd New Function Spindle speed feedback Current Spindle rotary speed send to our card port“Speed-DEC”, then display RPM speed on Mach3.Maximum support feedback input Pulse frequency 20KHZ. First step: the computer IP address setting. <Ethernet card directly connected to the computer> Please open“network sharing center”,select the “local connection - property”,open"Internet protocol version 4 (TCP/IPV4)", and manual input IP address 192.168.1.xx(XX from 0-179, can not...
- Page 14 New Function Ethernet card connected to the router If your Ethernet card is connected to your computer via a router, Please make sure your router IP address format is 192.168.1.xx , If not, modify your router IP address into 192.168.1.xx format. Otherwise unable to communicate.
- Page 15 New Function The third step: IP internal Ethernet switch setting if you only connected with 1 set of our Ethernet control card, skip the step. IP factory default is 180 open Ethernet control card control card circuit board in the shell, the upper inner has a red dial switch, a total of 4 of them.
- Page 16 New Function 拨码开关设置 对应Mach3软件IP地址 Dial switch setting Mach3 software IP IP:182 IP:183 IP:184 IP:185 IP:186 IP:187 -16-...
- Page 17 New Function 拨码开关设置 对应Mach3软件IP地址 Dial switch setting Mach3 software IP IP:188 IP:189 IP:190 IP:191 IP:192 IP:193 -17-...
- Page 18 New Function 拨码开关设置 对应Mach3软件IP地址 Dial switch setting Mach3 software IP IP:194 IP:195 -18-...
- Page 19 -19-...
