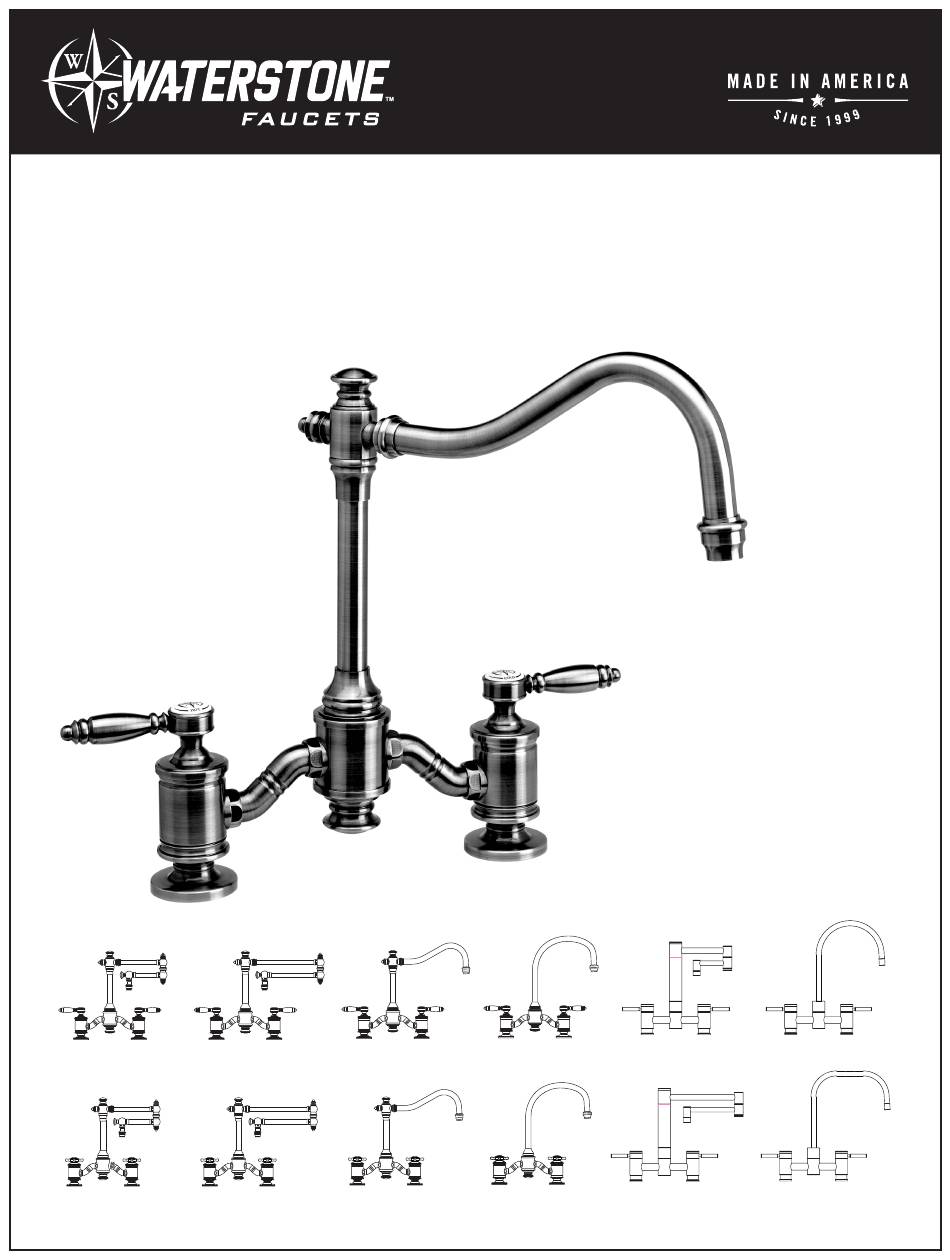

- Page 1 BRIDGE FAUCET INSTALLATION Model #s: 6100-12 INSTRUCTIONS 6100-18 6150-12 6150-18 6200 6250 6300 6350 7600-12 7600-18 7800 7825 6100-12 6100-18 6200 6300 7600-12 7800 6150-12 6150-18 6250 6350 7600-18 7825...
- Page 2 I N S T A L L A T I O N G U I D E BEFORE YOU BEGIN YOUR INSTALLATION: Turn o water supply. Observe all local Inspect waste and water DO NOT use petroleum plumbing codes. supplies for signs of damage. based products on this Replace as necessary.
-
Page 3: Faucet Installation
FAUCET INSTALLATION COUNTER OR SINK Fit flexible hoses (D) and rigid sidespray tube (E) through holes on Remove clamp nut (A) and washer (B) from threaded shroud (C). counter or sink. (No plumbers putty is required. O-rings seals base). Slide washer and thread the clamp nut onto threaded shroud. Tighten nut snug to underside of sink or counter. - Page 4 CONNECTING OPTIONAL SIDE SPRAY COUNTER OR SINK Insert side spray base (A) into side spray hole on your sink or counter. No plumbers putty is required. Slide sidespray hose (D) Remove hose cap (E) from end Connect and tighten end of O-ring seals base.
