Connecting Your Monitors and Headphones

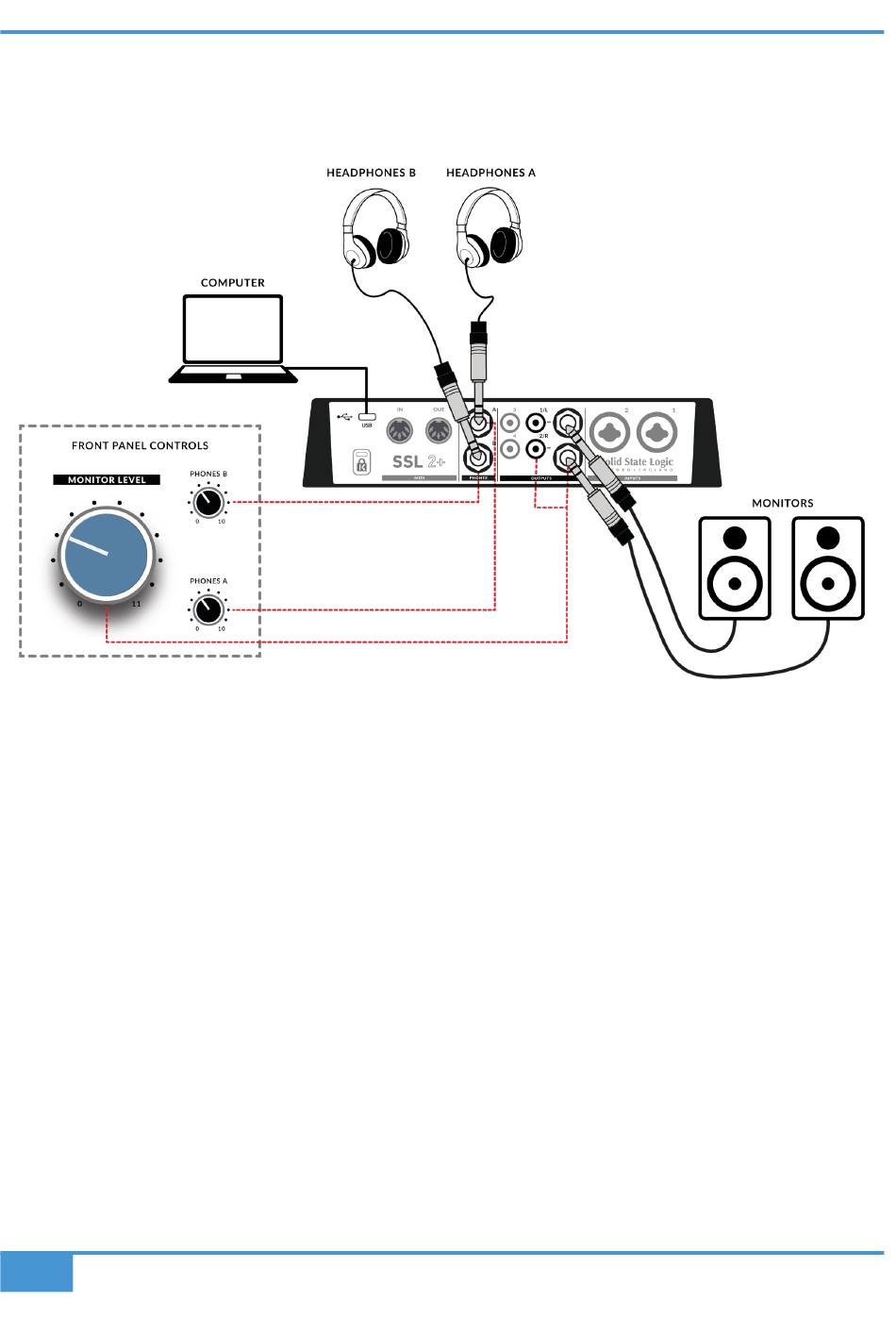

The diagram below shows where to connect your monitors and headphones up to your SSL 2+. It also shows the interaction of the
front panel controls with the various output connections on the rear.
• The large front panel MONITOR LEVEL control affects the output level of the balanced TRS jack outputs labelled 1/L and 2/R.
We recommend that you connect your monitors to these outputs. These outputs are duplicated on the RCA connectors 1/L
and 2/R, which are also affected by the MONITOR LEVEL control.
• Please note that RCA Outputs 3-4 are not affected by the MONITOR LEVEL and output at full level. These outputs are not
intended to be connected to monitors.
PHONES A and PHONES B have individual level controls that affect the level output on the rear PHONES A and PHONES
•
B connectors.
