How-To / Application Examples

Connections Overview

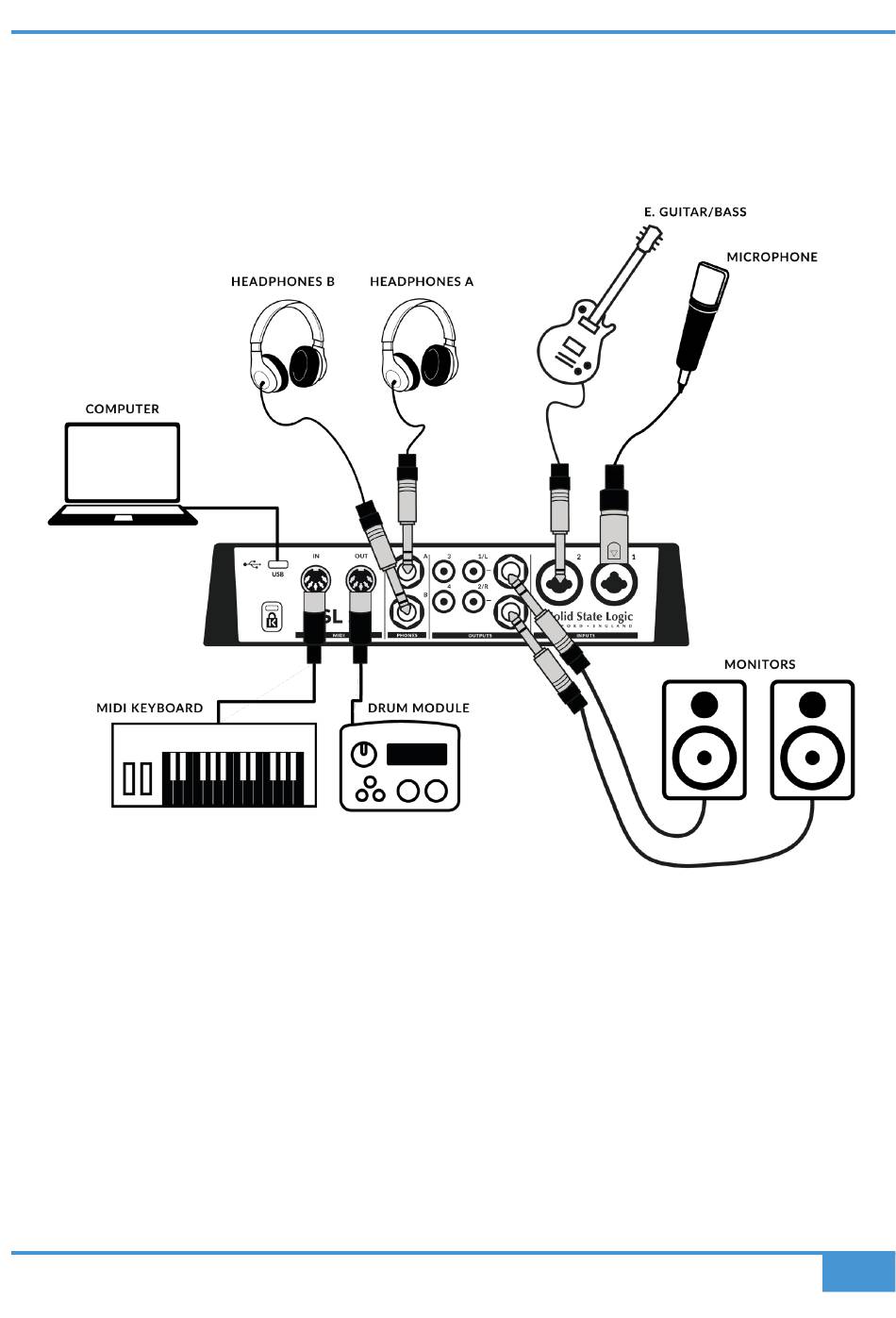

The diagram below illustrates where the various elements of your studio connect to SSL 2+ on the rear panel.
This diagram shows the following:
• A microphone plugged into INPUT 1, using an XLR cable
• An electric guitar/bass plugged into INPUT 2, using a TS jack cable (standard instrument cable)
• Monitor speakers plugged into OUTPUT 1/L and OUTPUT 2/R, using TRS jack cables (balanced cables)
• One pair of headphones connected to PHONES A and another pair of headphones connected to PHONES B
• A computer connected to the USB 2.0, 'C' Type port using one of the provided cables
• A MIDI keyboard connected to the MIDI IN connector using a 5-Pin DIN midi cable - as a way of recording MIDI information
into the computer
• A Drum Module connected to the MIDI OUT connector using a 5-Pin DIN midi cable - as a way of sending MIDI information
out of the computer, into the drum module to trigger sounds on the module
The RCA outputs are not shown to be connected to anything in this example, please see Connecting SSL 2+ to a DJ Mixer for
more information on using the RCA outputs.
