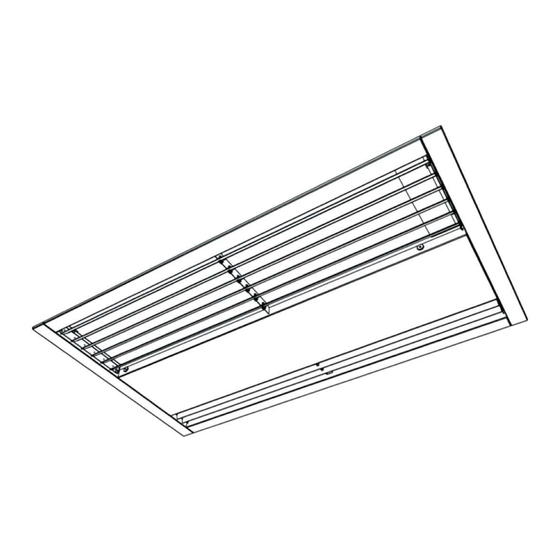

- Page 1 SOLANO CEILING TECHNICAL DOCUMENTATION / TECHNISCHE DOCUMENTATIE GEBRUIKSAANWIJZING / NOTICE D’UTILISATION / DOKUMENTACJA TECHNICZNA / MŰSZAKI LEÍRÁS...
- Page 2 1. GENERAL INFORMATION ..........................2 DIMENSIONS..............................3 3. TECHNICAL DATA ............................3 4. INSTALATION ..............................4 5. CONTROL SYSTEM ............................6 5.1. CONTROL ELEMENTS ..........................6 5.2. CONNECTING GUIDE ..........................7 5.3. S-ECM CONTROL SYSTEM ........................8 5.3.1. REGULATION S-C - SOLANO CEILING-W/N WIRING DIAGRAMS ..........
- Page 3 CEILING W/N/E-100 1057 mm 600 mm 561 mm 770 mm 297 mm 96 mm W/N/E-150 1546 mm 600 mm 561 mm 1207 mm 297 mm 84 mm 2034 mm 600 mm 561 mm 1621 mm 297 mm 157 mm W/N/E-200 * Given height for CEILING-W, height for CEILING-E/N equels 284 mm W-100 N-100...
- Page 4 CEILING CEILING [mm] [mm] [mm] [mm] [mm] [mm] W/N/E-100 1024 W/N/E 100 W/N/E 150 1510 W/N/E -150 1207 W/N/E 200 2000 W/N/E -200 1621...
- Page 6 S-ECM CONTROL: • Connecting curtains – controlling up to 5 units with one controller S-C; • controlling up to 31 units with one controller S-TOUCH • Connecting to curtain room thermostat*, door contact*, valves with actuator*, speed controller*; • BMS connection; * optional equipment S-C - 3-speed fan switch with room thermostat Temperature range::...
- Page 7 7. CEILING-W/N 8. CEILING-E...
-
Page 8: Led Indicators
Œ Power supply 230V/50Hz; • Connectors for thermostat and fan step switch (S-C); Ž Door contact connector; • Valve actuator connector CEILING-..-W; heaters contactor connector CEILING-..-E; • BMS system connection; ‘ S-TOUCH connectors; ’ MASTER-SLAVE connectors; “ PT-1000 connectors; LED INDICATORS: G1, G2, G3 –... - Page 9 Œ Power supply 230V/50Hz (OMY 3x1mm • Air curtain step switch with thermostat S-C (OMY 5x0,5mm HEAT- heating mode · FAN - room thermostat deactivated · COOL - cooling mode · 1;2;3 – step switch · Ž Door contact S-DS-MEC/ S-DS-MAG (door closed – contacts opened; door opened – contacts closed) (OMY 2x0,5mm •...
- Page 10 Œ Power supply 3x400V/50Hz SOLANO CEILING-E-100 (min. 5x2,5 mm ) (Overcurrent B16) · SOLANO CEILING-E-150 (min. 5x4,0 mm ) (Overcurrent B20) · SOLANO CEILING-E-200 (min. 5x4,0 mm ) (Overcurrent B25) · • Air curtain step switch with thermostat S-C (OMY 5x0,5mm HEAT- heating mode ·...
- Page 11 Œ Power supply 230V/50Hz (OMY 3x1mm • S-TOUCH (LIYCY-P 2x2x0,5mm Ž Door contact S-DS-MEC/ S-DS-MAG (door closed – contacts opened; door opened – contacts closed) (OMY 2x0,5mm • Valve with actuator S-V-2-1/2” (OMY 3x0,75mm ) or S-V-3-1/2” (OMY 3x0,75mm A – Exchanger water supply AB –...
- Page 12 Œ Power supply 3x400V/50Hz SOLANO CEILING-E-100 (min. 5x2,5 mm ) (Overcurrent B16) · SOLANO CEILING-E-150 (min. 5x4,0 mm ) (Overcurrent B20) · SOLANO CEILING-E-200 (min. 5x4,0 mm ) (Overcurrent B25) · • S-TOUCH (LIYCY-P 2x2x0,5mm Ž Door contact S-DS-MEC/ S-DS-MAG (door closed – contacts opened; door opened – contacts closed) (OMY 2x0,5mm ATTENTION: Switch 4 on SW3 to the position “E”...
- Page 13 Electrical air curtain chaining provides control from 1 to 5 devices using one S-C / S-TOUCH and S-DS. Electrical air curtain chaining might be done by cable OMY 3x0,5mm using connectors CURTAIN IN; CURTAIN OUT Connecting units among themselves ensure transfer of controlling signals. Whatever each curtain need to be supplied directly.
- Page 14 S-ECM driver has a possibility to be connected to integrated Building Management System (BMS). Connection must be made using 3-poliges wire to connectors: IN-A; IN-B; GND (SIGNAL GROUND). S-ECM Parameters: Name Description Physical layer RS485 Protocol MODBUS-RTU Baud rate 38400 [bps] Parity Even Data bits...
- Page 15 When connecting S-ECM modules to the S-TOUCH controller or BMS, you have to binary set addresses on each (each S-ECM must have individual address) S-ECM module by DIP-switch SW1. To address modules check if the power supply is turned off, than set then the addresses as shown in the table, than turn on the power supply.
- Page 16 • The system with the heating medium must be protected against an increase of the heating medium pressure above the permissible value (1.6 MPa). • While screwing exchanger to pipeline - connecting stubs has to be hold by wrench. • The device is designed for operation inside buildings, at temperatures above 0 C.
