Installation instructions
IZONA CoolDrawer
RB36S & RB90S models
Important!
SAVE THESE INSTRUCTIONS
The models shown in this document may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please go to our
website www.fisherpaykel.com or contact your local Fisher & Paykel dealer.

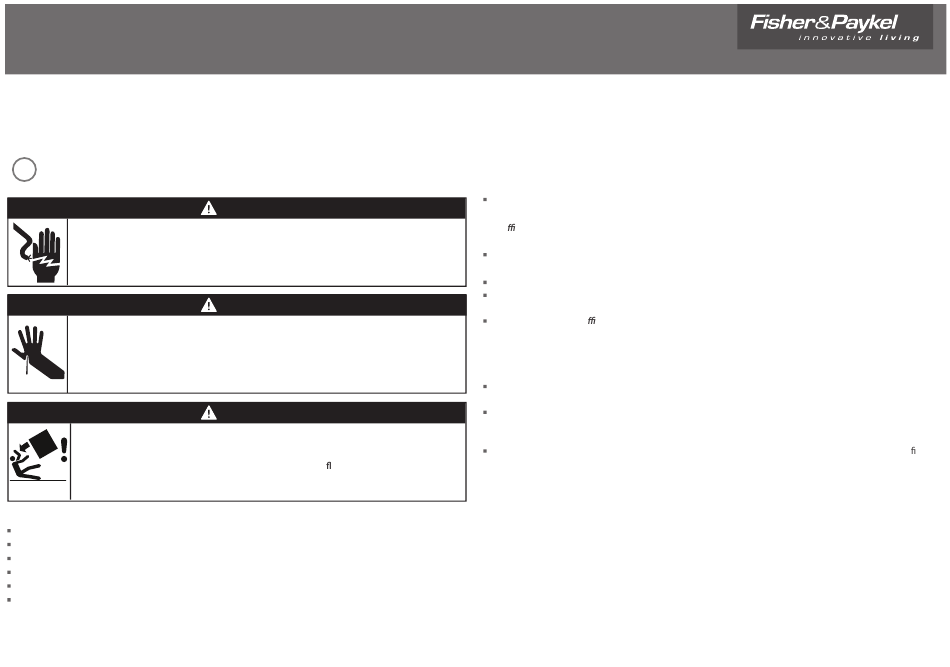

1 SAFETY AND WARNINGS
Electrical shock hazard
Disconnect product from main power supply before installing appliance.
Failure to do so may result in electrical shock or death
Cut hazard
Take care - panel edges are sharp.
Failure to use caution could result in injury or cuts.
Tipping hazard
Do not operate this apppliance until it has been securely anchored inside the
cabinetry. The cabinet must be securely anchored to the oor.
Failure to use caution could result in injury or cuts.
Important safety precautions!
Installation of this CoolDrawer requires competent mechanical and electrical skills.
Be sure to leave these Instructions with the Customer.
Installation must comply with your local building and electricity regulations.
At the completion of the CoolDrawer installation, the Installer must perform the Final Check List.
Remove all packaging materials supplied with the CoolDrawer.
The CoolDrawer is manufactured for indoor use only.
WARNING!
WARNING!
WARNING!
The CoolDrawer MUST be installed to allow for future removal from the enclosure if service is required.
Do not seal this CoolDrawer into the cabinetry with silicone or glue. Doing so will make future servicing
di cult. Fisher & Paykel will not be liable for any costs associated with removing or replacing a sealed-in
product, nor for repairing any damage that may be incurred by doing this.
Care should be taken when the appliance is installed or removed to reduce the likelihood of damage to the
power supply cord.
Failure to install the CoolDrawer correctly will invalidate any warranty or liability claims.
If the power supply cord is damaged, it must be replaced. Parts are available from your Authorised Fisher
& Paykel dealer.
Cabinetry must be su ciently robust to support a combined product and food load of 100 kg (220 lb).
Bearers may be required to support the internal shelf.
Before you install the CoolDrawer, please make sure that
The switched power outlet must be outside the refrigerator drawer cavity so that it is accessible after
installation.
The switched power outlet must be located outside the cavity, within 55" (1400 mm) from the CoolDrawer
cavity if situated on the left-hand side of the cavity and within 33" (840 mm) if situated on the right-hand
side of the cavity.
The services hole in the refrigerator cavity needs to be large enough for the power supply plug to t
through.
