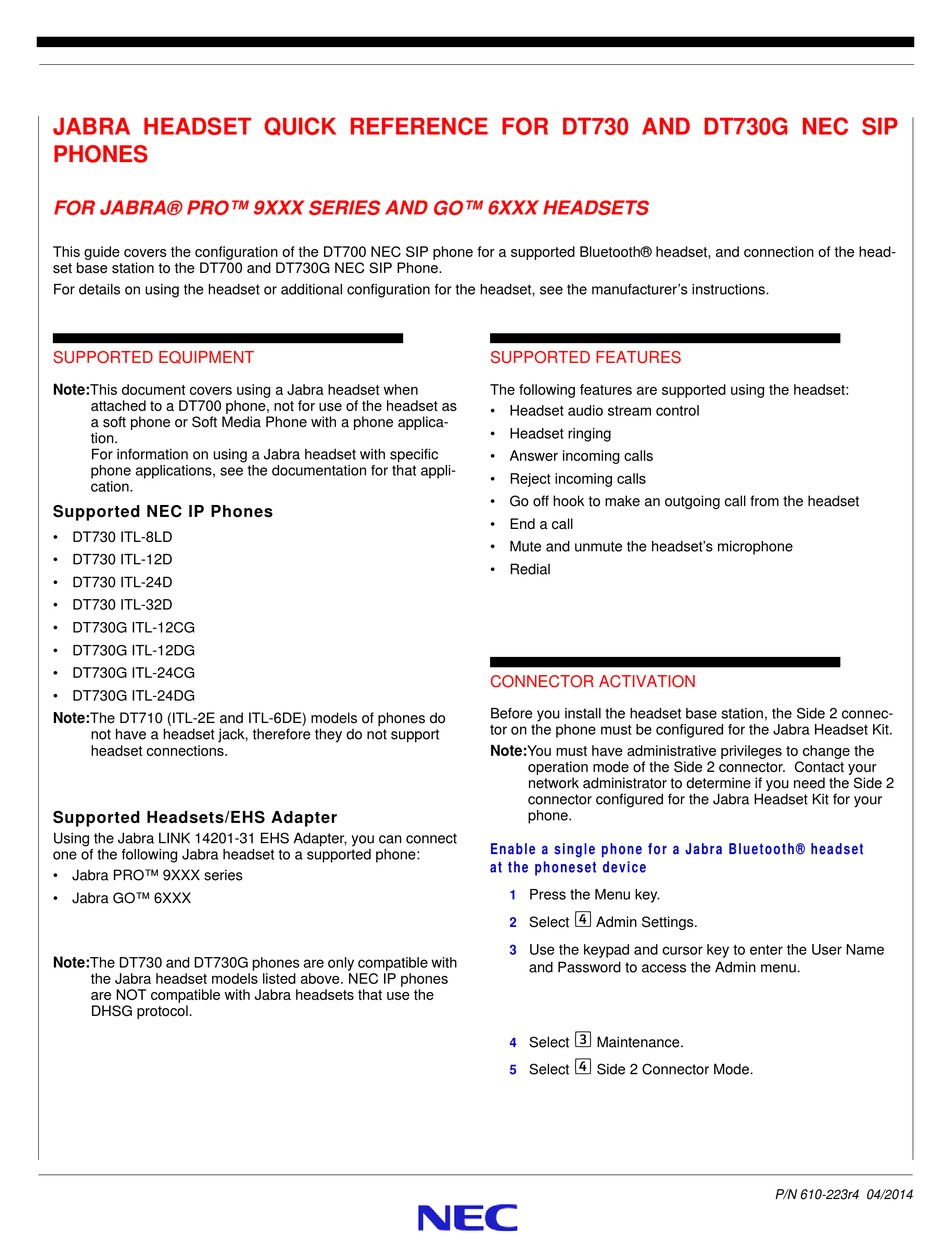

JABRA HEADSET QUICK REFERENCE FOR DT730 AND DT730G NEC SIP
PHONES
FOR JABRA® PRO™ 9XXX SERIES AND GO™ 6XXX HEADSETS
This guide covers the configuration of the DT700 NEC SIP phone for a supported Bluetooth® headset, and connection of the head-
set base station to the DT700 and DT730G NEC SIP Phone.
For details on using the headset or additional configuration for the headset, see the manufacturer's instructions.
SUPPORTED EQUIPMENT
Note:This document covers using a Jabra headset when
attached to a DT700 phone, not for use of the headset as
a soft phone or Soft Media Phone with a phone applica-
tion.
For information on using a Jabra headset with specific
phone applications, see the documentation for that appli-
cation.
Supported NEC IP Phones
• DT730 ITL-8LD
• DT730 ITL-12D
• DT730 ITL-24D
• DT730 ITL-32D
• DT730G ITL-12CG
• DT730G ITL-12DG
• DT730G ITL-24CG
• DT730G ITL-24DG
Note:The DT710 (ITL-2E and ITL-6DE) models of phones do
not have a headset jack, therefore they do not support
headset connections.
Supported Headsets/EHS Adapter
Using the Jabra LINK 14201-31 EHS Adapter, you can connect
one of the following Jabra headset to a supported phone:
• Jabra PRO™ 9XXX series
• Jabra GO™ 6XXX
Note:The DT730 and DT730G phones are only compatible with
the Jabra headset models listed above. NEC IP phones
are NOT compatible with Jabra headsets that use the
DHSG protocol.
SUPPORTED FEATURES
The following features are supported using the headset:
• Headset audio stream control
• Headset ringing
• Answer incoming calls
• Reject incoming calls
• Go off hook to make an outgoing call from the headset
• End a call
• Mute and unmute the headset's microphone
• Redial
CONNECTOR ACTIVATION
Before you install the headset base station, the Side 2 connec-
tor on the phone must be configured for the Jabra Headset Kit.
Note:You must have administrative privileges to change the
operation mode of the Side 2 connector. Contact your
network administrator to determine if you need the Side 2
connector configured for the Jabra Headset Kit for your
phone.
Enable a singl e phone for a Jabra Bl uetooth® headset
at the phoneset device
Press the Menu key.
1
4
Select
Admin Settings.
2
Use the keypad and cursor key to enter the User Name
3
and Password to access the Admin menu.
3
Select
Maintenance.
4
4
Select
Side 2 Connector Mode.
5
P/N 610-223r4 04/2014
Advertisement
Table of Contents
Related Manuals for Jabra DT730
Summary of Contents for Jabra DT730
- Page 1 Before you install the headset base station, the Side 2 connec- Note:The DT710 (ITL-2E and ITL-6DE) models of phones do tor on the phone must be configured for the Jabra Headset Kit. not have a headset jack, therefore they do not support headset connections.
- Page 2 Kit mode for the Side 2 connector Restart all phones on the network to fully activate the Side 2 connector for the Jabra Headset Kit. The Side 2 connector on all phones in your network will be enabled for Press the OK softkey.
- Page 3 SIDE 2 port. Remove the cover. Select User Settings. Figure 9 Remove SIDE 2 port cover Select Headset. Figure 6 Select Headset options Side port cover Attach the cover of the Jabra EHS Adapter to the back of the phone. Select Ringing.
- Page 4 Connect the network cable end of the Jabra EHS Adapter to the AUX port on the back of the headset base Connect the 10 pin connector of the Jabra EHS Adapter to station. the SIDE 2 port on the back of the phone.
- Page 5 Figure 14 HEADSET port to Jabra headset base USING THE HEADSET To adj ust the headset ri nging volume • Press the Down key on the Cursor pad while on-hook. You must press the Down key multiple times and cannot press and hold to adjust the volume.
- Page 6 Reject an Incoming • Contact your network administrator to verify that the Call Twice Jabra Headset Kit mode is enabled on the Side 2 port on your phone. On a Call Terminate a Call Multifunc- tion button Once •...
