SOLAR STATION
INSTRUCTION MANUAL

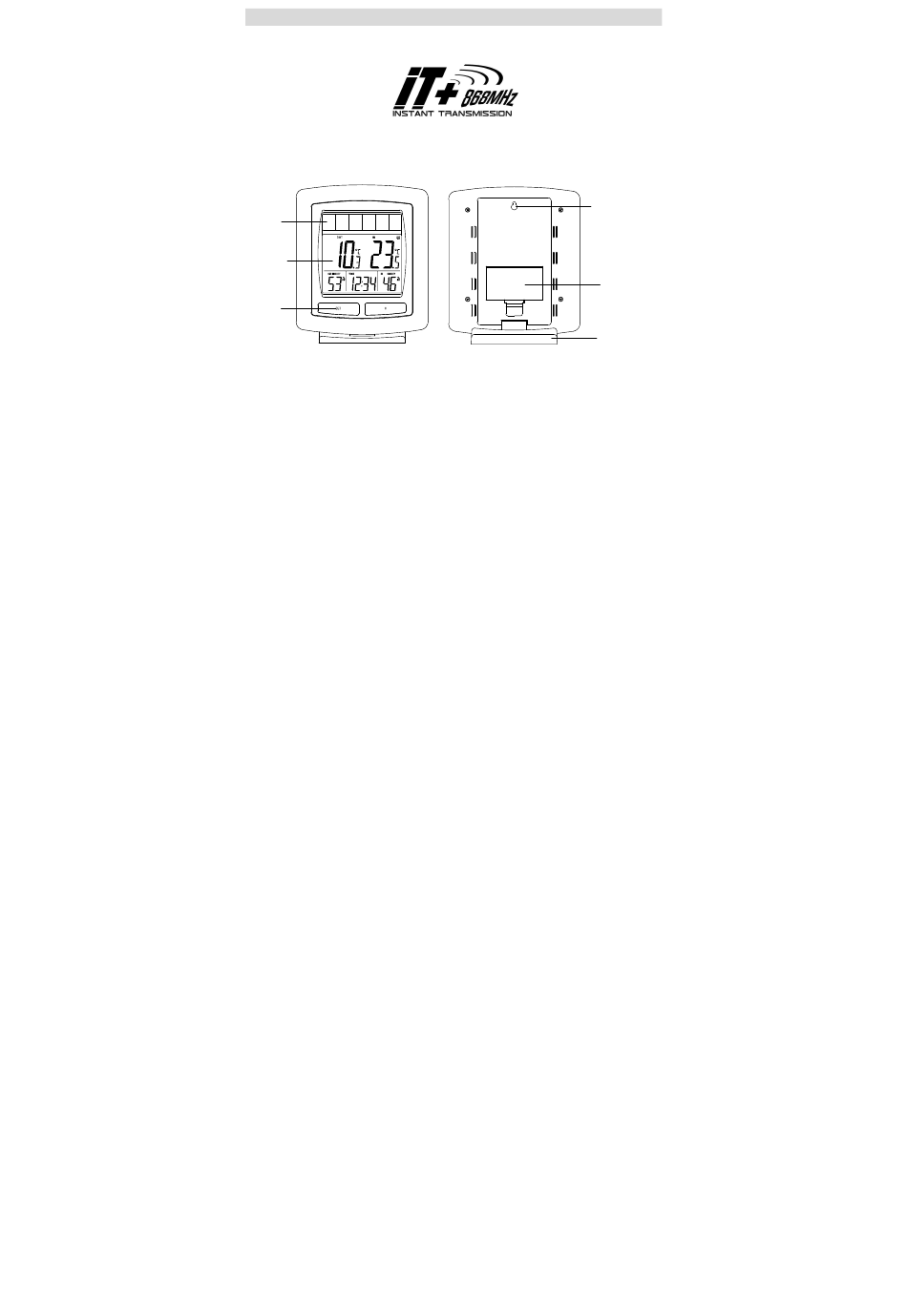

FEATURES:
SOLAR STATION:
Solar
panel
LCD
display
Function
keys
•
24h time format display
•
Solar mode setting
•
Indoor and outdoor temperature display in ºC with MIN/MAX records
•
Indoor and outdoor humidity display in RH%
•
Primary Alkaline battery or rechargeable Alkaline battery selection
•
Low battery indicators
•
Wall mount or freestanding
Wall Mount
Location
Battery
compartment
Stand
1
Advertisement
Table of Contents
Related Manuals for Technoline WS-6010
Summary of Contents for Technoline WS-6010
- Page 1 SOLAR STATION INSTRUCTION MANUAL FEATURES: SOLAR STATION: Wall Mount Location Solar panel display Battery compartment Function keys Stand • 24h time format display • Solar mode setting • Indoor and outdoor temperature display in ºC with MIN/MAX records • Indoor and outdoor humidity display in RH% •...
- Page 2 SOLAR-POWERED TRANSMITTER: • Remote transmission of outdoor temperature and humidity to the Solar Station by 868 MHz signals • LCD will automatically alternate and display the outdoor temperature and humidity data • Recharge batteries by solar-powered cells • Wall mounting case Solar panel Note: •...
- Page 3 Normal Operation Mode: • This mode occurs when the battery voltage is higher than 2.5V. • The transmitter will measure and transmit the temperature and humidity data to the Solar Station every 5 seconds. • If a dark environment is detected, it will measure and transmit the temperature every 10s.
-
Page 4: Initial Setup
INITIAL SETUP It is very important to follow these steps: Open the battery compartment, and make sure that the battery switch is in the BATTERY position (not the SOLAR position). Battery switch in the BATTERY position Now locate the battery insulator tab, and gently pull to remove it. Slide the battery switch to the SOLAR position Battery switch in the SOLAR position Continue to section titled “Setup After Changing/Installing the... - Page 5 To use non-rechargeable Alkaline batteries: Remove the included rechargeable AA batteries from the compartment. Use the switch to select the Alkaline battery (see below). Insert 2 x AA Alkaline batteries into the compartment, observing the correct polarity (see marking inside battery compartment.) Replace battery cover DO NOT SET THE CLOCK.
-
Page 6: Function Keys
SETUP AFTER CHANGING/REPLACING THE BATTERIES IN THE SOLAR STATION First, press the reset button on the Solar Transmitter. All segments of the LCD will light up briefly. The code number and the security code (for example, “20”) will be displayed sequentially. Next, the batteries voltage will be shown on the LCD, it should be higher than 2.4V in order to maintain the normal operation. -
Page 7: Lcd Screen Descriptions
+ key : To change any values in manual set modes To reset all the MIN/MAX temperature records to current temperatures LCD SCREEN DESCRIPTIONS The solar station LCD is divided into 2 sections and once the batteries are inserted, all the segments will light up briefly before displaying the information for time, indoor and outdoor temperature and indoor and outdoor humidity. -
Page 8: Manual Time Setting
MANUAL SETTINGS After completion of the above described procedures in “Setting-up” the manual setting modes can be entered by pressing the SET key. The following settings can now be programmed: • Manual time setting • Solar mode setting MANUAL TIME SETTING Press and hold the SET key for 3 seconds to enter the time setting mode. -
Page 9: Stop Mode
If the solar mode setting is OFF: • LCD will remain ON constantly. • All outdoor data reception and measurements will be performed even if a dark environment is detected. STOP MODE If the Solar Station is placed in a dark environment for 72 hours continually, the solar station will go to the stop mode: •... -
Page 10: Changing The Display Mode
CHANGING THE DISPLAY MODE The Solar Station can be set to show different displays: From normal display, press the SET key: The LCD1 will now display: outdoor temperature/ outdoor humidity Press the SET key again The LCD1 will display: indoor temperature/ indoor humidity Press the SET key again and the display will return to the normal display 868MHZ RECEPTION CHECK FOR OUTDOOR SOLAR... - Page 11 Using other electrical products such as headphones or speakers operating on the same signal frequency (868MHz) may prevent correct signal transmission and reception. Neighbors using electrical devices operating on the 868MHz signal frequency can also cause interference. Note: When the 868 MHz signal is received correctly, do not re-open the battery cover of the Solar Station, as the batteries may spring free from the contacts and force a false reset.
-
Page 12: Wall Mounting
WALL MOUNTING Install a mounting screw (not included) into a wall— leaving approximately 5mm extended from the wall. Place the Solar Station onto the screw, using the hanging hole on the backside. Gently pull the Solar Station down to lock the screw into place. Note: Always ensure that the Solar Station locks onto the screw before releasing. -
Page 13: Care And Maintenance
CARE AND MAINTENANCE: • Avoid placing the units in areas prone to vibration and shock as these may cause damage. • Avoid areas where the units can be exposed to sudden changes in temperature, i.e. direct sunlight, extreme cold and wet/moist conditions as these will lead to rapid changes which reduce the accuracy of readings. -
Page 14: Liability Disclaimer
Outdoor humidity : every 50 seconds Power consumption Solar Station Alkaline rechargeable battery : 2 x AA, 1.5V (included), rechargeable by solar cell Rechargeable Alkaline battery life : 18 – 60 months, depending on usage Primary Alkaline battery : 2 x AA, 1.5V battery (not included) Primary Alkaline battery life : about 24 months Solar transmitter... - Page 15 • This product is only designed to be used in the home as indication of the future weather and is not 100% accurate. Weather forecasts given by this product should be taken only as an indication and not as being totally accurate.
