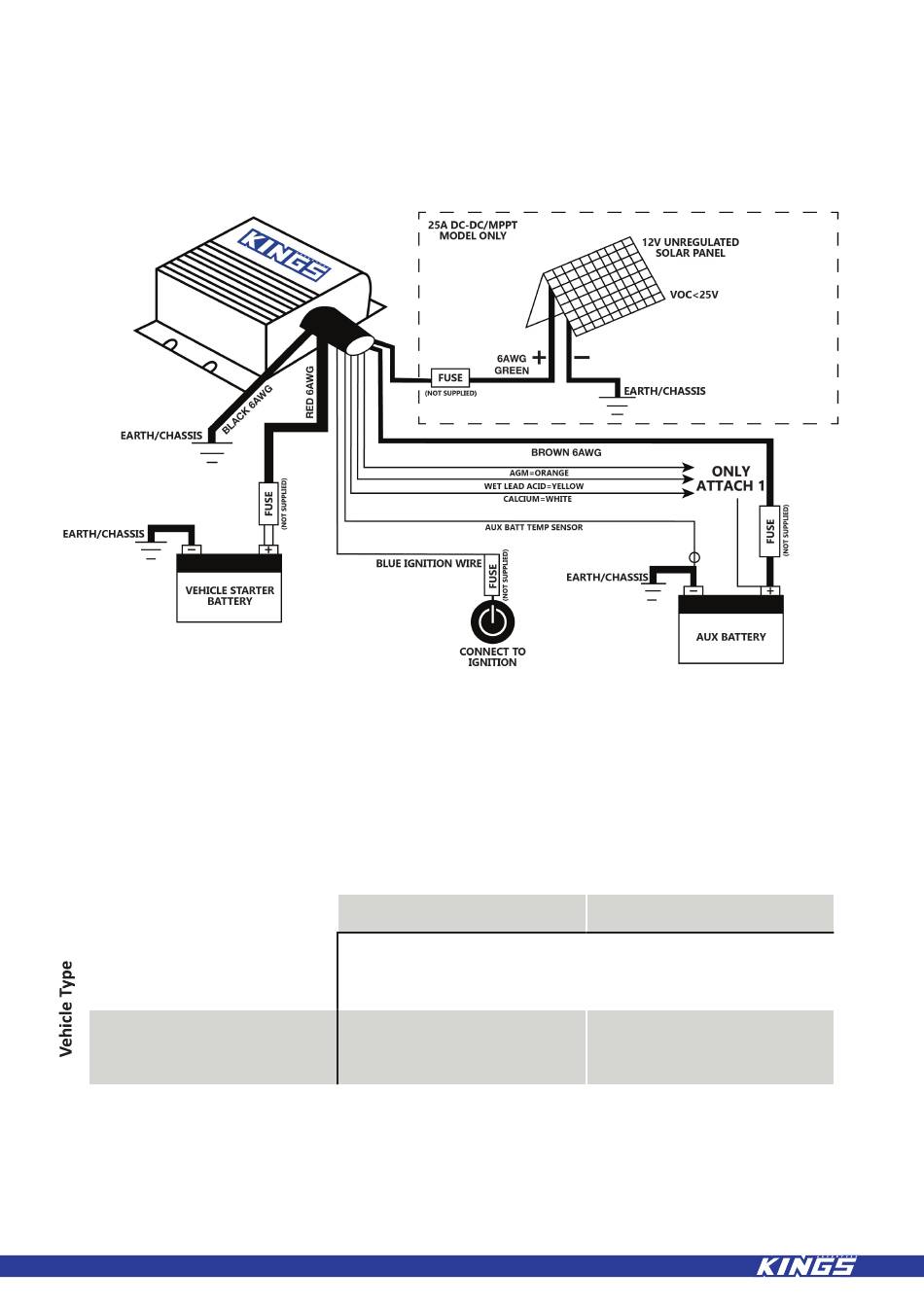

WIRING GUIDE
Smart or Eco type Alternator
(or equivalent)
All other "Traditional"
alternators
** The unit can operate without the Blue Ignition Wire fitted - refer Vehicle Manufacturer's Manual
& Technical Data table (page 3) for "Ign Wire NOT fitted" input voltage range.
Cable Length to Vehicle Battery
up to 8m
AWG 6
Blue Ign. Wire MUST
fitted
AWG 6
Blue Ign. Wire recommend be
fitted**
8m - 15m
AWG 4
be
Blue Ign. Wire MUST
fitted
AWG 4
Blue Ign. Wire MUST
fitted
be
be
6
