Gtech HT3.0 Operating Manual

Cordless hedge trimmer
Hide thumbs

Advertisement

Table of Contents

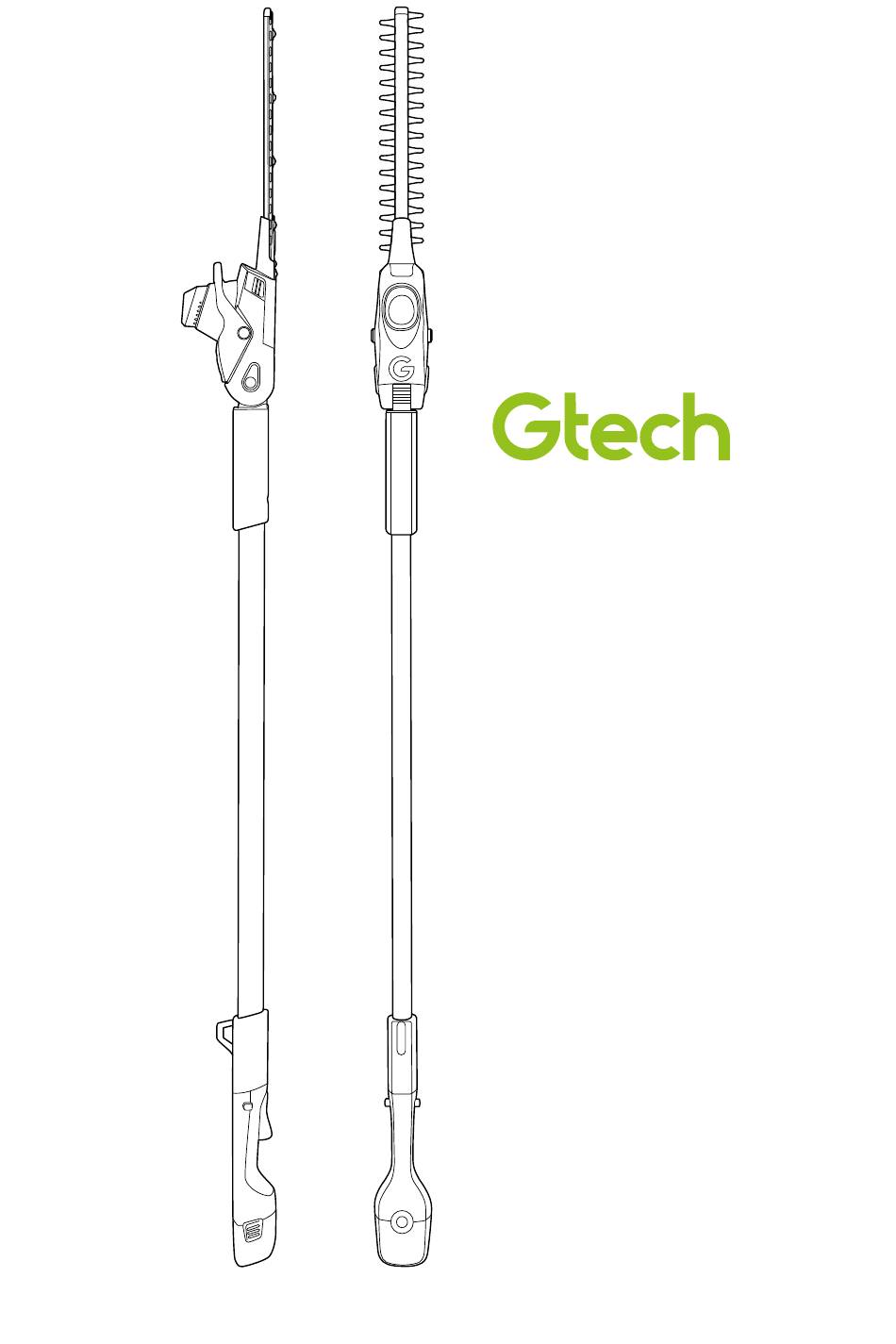

Cordless Hedge Trimmer
Model number: HT3.0
OPERATING MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HT3.0 and is the answer not in the manual?

Questions and answers

Related Manuals for Gtech HT3.0

Summary of Contents for Gtech HT3.0

  • Page 1 Cordless Hedge Trimmer Model number: HT3.0 OPERATING MANUAL...

  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS: IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE. RETAIN INSTRUCTIONS FOR FUTURE REFERENCE. WARNING: Basic safety precautions should always be observed when using an electrical appliance to reduce the risk of fire, electrical shock or serious injury. Do not use in rain or leave outdoors whilst raining. Personal safety: ladders, slopes or in slippery conditions.

  • Page 3: Electrical Safety

    • Carry the hedge trimmer by the handle • Do not abuse the charger cord. Never with the blade stopped. use the charger cord for carrying, pulling • When transporting or storing the or unplugging the power tool. Keep the hedge trimmer, always fit the protective charger cord away from heat, oil, sharp blade cover.

  • Page 4: Operation

    Training: or hold material to be cut, when blades are moving. Make sure the switch is • Read the instructions carefully. Be off when clearing jammed material. A familiar with the controls and the correct moment of inattention while operating use of the hedge trimmer.

  • Page 5: Maintenance And Storage

    tool’s operation. If damaged, have the Service: hedge trimmer repaired before use. • Do not use the hedge trimmer if the Many accidents are caused by poorly switch does not turn it on or off. If maintained power tools. hedge trimmer cannot be controlled by •...

  • Page 6: What's In The Box

    Thank you for choosing a Gtech Hedge Trimmer “I started Gtech to create sensible, easy to use products, which do a great job. Your opinion is important to us. Please take the time to write a review of your new Hedge Trimmer at Trustpilot.co.uk.
  • Page 7 Assembly The shapes need to match or the handle will not fit. Hedge trimmer head Hedge trimmer main body When inserting the body into the hedge trimmer head, ensure the body is the right way up. The shapes need to match or the handle will not fit. Fit the head to the main body.
  • Page 8 Operation Safety button (located both sides) Safety button (located both sides) Trigger Push and hold the safety button on either side, When you release the trigger, the hedge then press the trigger to operate. trimmer will stop. Rotating the hedge trimmer blade WARNING: to reduce risk of personal WARNING: ensure the cutting head injury, ensure the trimmer is switched...

  • Page 9: Removing The Blade

    Removing the blade Remove the battery and ensure the cover is on Press the green buttons on either side of the the blade. trimmer head. The blade will pivot away from the head.

  • Page 10: Safety Harness

    Safety harness The harness is included as a Attach the clip to the loop on In an emergency situation, safety feature for use with the the of the handle and clip the the harness clip can be branch cutter and the hedge harness to this.
  • Page 11 Using your hedge trimmer Hold the trimmer away from your body using both hands and stand on a solid and secure surface. The double-edged blade allows you to cut with either a side-to-side or up and down motion. When cutting, move slowly and steadily so that stems are fed directly into the blade. Cut the sides of the hedge first and then the top.

  • Page 12: Removing The Battery For Charging

    Removing the battery for charging Press both buttons at the same time and pull to remove the battery. Checking battery charge status 100% - 60% - 30% -10% - 1% Figures are approximate. Press the button to check how much charge The number of lit LEDs shows the charge.

  • Page 13: Charging The Battery

    Charging the battery Connect the charger to the battery where Plug the charger into an ordinary plug socket. indicated. hours While charging, the LEDs will progressively The battery can be charged from flat in 4 pulse until all 4 are lit. hours.

  • Page 14: Product Care

    To reduce risk of injury, ensure that protective blade guard is fitted when the trimmer is not in use, and when being transported, handled or stored. To ensure that your HT3.0 gives you a long and reliable service, carry out the following maintenance regularly: •...

  • Page 15: Troubleshooting

    3. Charge battery. LEDs show solid red 1. The hedge trimmer has jammed. 2. Check blade and remove any debris. If this doesn’t solve your problem, don’t worry, we will help. Go to www.gtech.co.uk or call 01905 345 891...
  • Page 16 HEDGE TRIMMER TECHNICAL SPECIFICATION Blade length 315mm Blade cutting width 15mm No load speed 1260min Battery 18V DC 2000mAh Li-ion Charging period 4 hours Battery charger output 21.6V 0.5A Battery charger input 100-240V~50/60Hz Battery charger type K12V216050B Measured sound power level, L =82.25 dB(A), uncertainty =3dB(A) 86 dB(A)
  • Page 17 Environmental and product recycling symbol indicates that this product is covered by legislation for waste electrical and electronic products (EN2012/19/EU) When the product has reached the end of its life, please do not dispose of it with general household waste. Consider the environment and take it to a recognised recycling facility. The product contains a Li-ion battery which should not be disposed of with general household waste.
  • Page 18 WARRANTY – TERMS AND CONDITIONS The warranty on your HT3.0 is 2 years from date of purchase. If your Gtech HT3.0 breaks, don’t worry, we’re here to help. Go to www.gtech.co.uk or call 01905 345 891 for assistance. WHAT ISN’T COVERED...

  • Page 19: Ec Declaration Of Conformity

    We, manufacturer/importer Grey Technology Ltd Brindley Road Warndon Worcester WR4 9FB declare that the product HT3.0 Cordless Hedge Trimmer complies with the essential health and safety requirements of the following directives: 2014/30/EU - EMC Directive. 2006/42/EC - Machinery Directive 2000/14/EC - Noise emission in the environment by equipment for use outdoors Directive.
  • Page 20 Grey Technology Limited Brindley Road, Warndon, Worcester WR4 9FB email: support@gtech.co.uk telephone: 01905 345891 www.gtech.co.uk...
