Summary of Contents for Gtech ST04

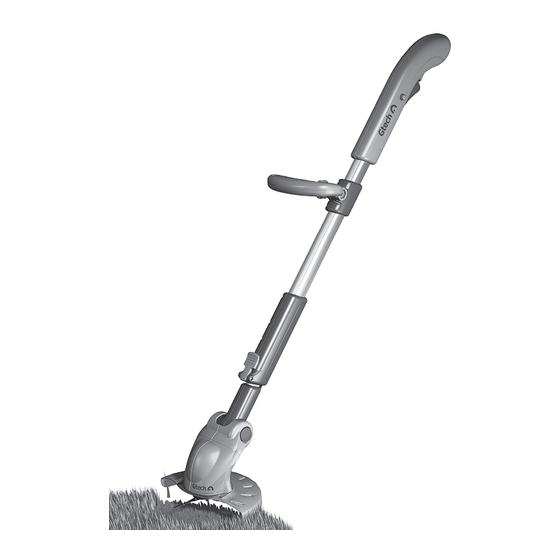

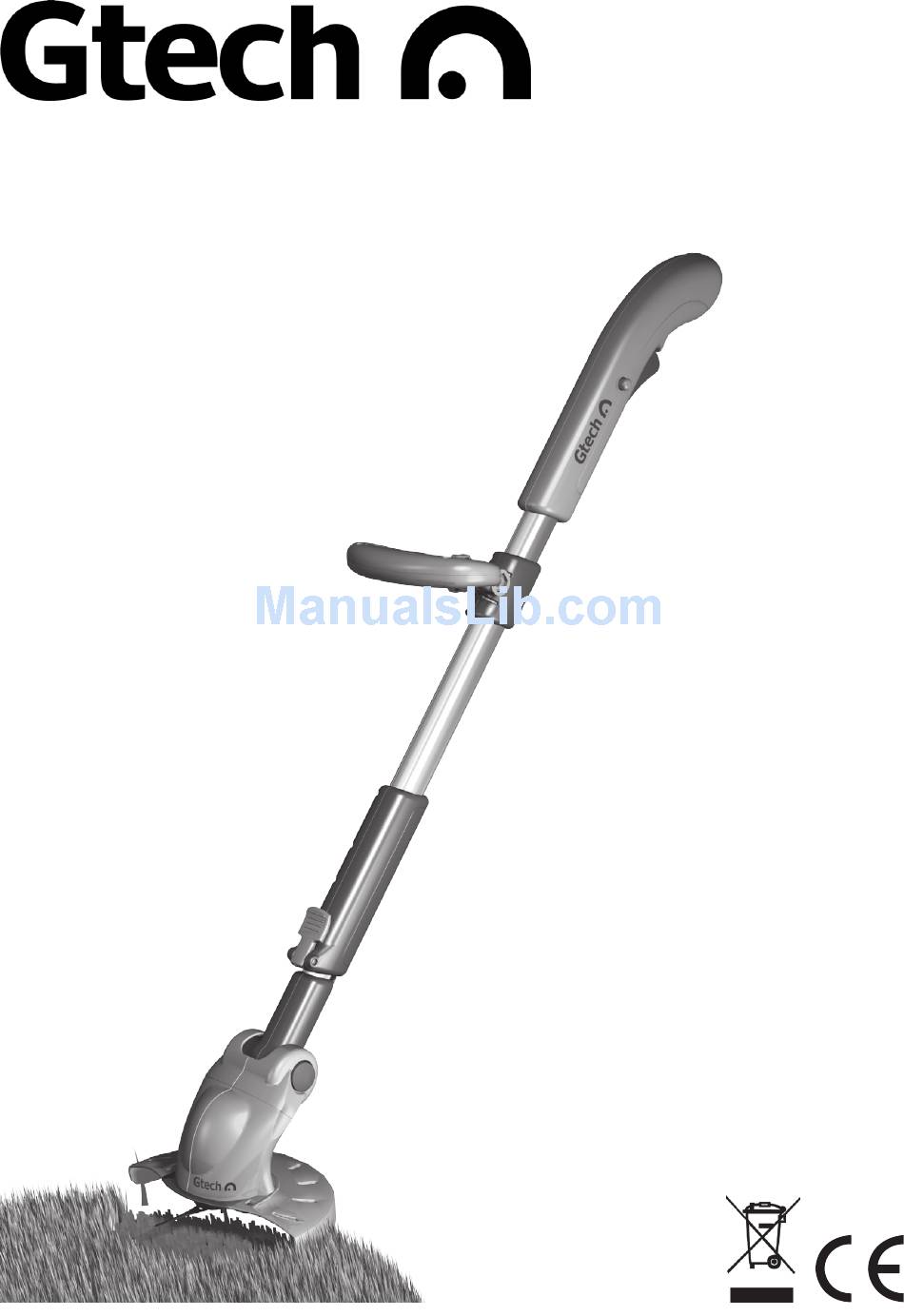

- Page 1 Safety and Instruction Manual for ST04 Cordless Grass Trimmer...
- Page 2 Gtech helpline: 0870 7944001 email: support@greytechnology.co.uk www.greytechnology.co.uk...
-
Page 3: Table Of Contents
ST04 Cordless Grass Trimmer Contents: Page 3 Safety Information Page 6 Part Location Page 7 Battery Charging and Recharging Page 9 Assembly Page 10 Fitting and Replacing the Blade Page 11 Telescopic Tube Adjustment Page 12 Assist Handle Adjustment Page 13... -
Page 4: Safety Information
Do not use any power tool excessively steep slopes. while you are tired or under the influence of drugs, alcohol or medication. A moment Gtech helpline: 0870 7944001 email: support@greytechnology.co.uk www.greytechnology.co.uk... - Page 5 •Ensure that the motor has fully stopped Power tools are dangerous in the hands of before cleaning, clearing a blockage, untrained users. Gtech helpline: 0870 7944001 email: support@greytechnology.co.uk www.greytechnology.co.uk...
- Page 6 If the liquid gets on the skin wash immediately with soap and water. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes and seek medical attention. Gtech helpline: 0870 7944001 email: support@greytechnology.co.uk www.greytechnology.co.uk...
-
Page 7: Part Location
Main unit Power switch Safety button Assist handle Telescopic tube latch Head angle lock Trimmer guard fixing screw Trimmer guard Cutting blade (x20) 10. Battery Connector 11. Battery Pack 12. Charger 13. Charger plug Gtech helpline: 0870 7944001 email: support@greytechnology.co.uk www.greytechnology.co.uk... -
Page 8: Battery Charging And Recharging
There is NO indicator to show when the battery is charged. Charge for 15 hours to ensure a full charged battery. Note: the battery will not be damaged if charged for longer than 15 hours but should not be charged for longer than 24 hours. Gtech helpline: 0870 7944001 email: support@greytechnology.co.uk www.greytechnology.co.uk... - Page 9 USING ANY OTHER CHARGER MAY DAMAGE THE PRODUCT AND THE BATTERY. Only use replacement batteries as supplied by the manufacturer. Spare and replacement batteries can be purchased from Grey Technology Tel 0870 7944001 or online at www.greytechnology.co.uk Gtech helpline: 0870 7944001 email: support@greytechnology.co.uk www.greytechnology.co.uk...
-
Page 10: Assembly
Push the guard forward until the hooks are fully engaged in the slots. Fit the guard fixing screw to secure the guard to the trimmer head. fix screw here Gtech helpline: 0870 7944001 email: support@greytechnology.co.uk www.greytechnology.co.uk... -
Page 11: Fitting And Replacing The Blade
Push the blade toward the centre of the trimmer and lift off the blade retaining pin. Warning : only fit blades recommended by the manufacturer. Replacement blades can be purchased from Grey Technology Ltd Tel 0870 7944001 or online at www.greytechnology.co.uk Gtech helpline: 0870 7944001 email: support@greytechnology.co.uk www.greytechnology.co.uk... -
Page 12: Telescopic Tube Adjustment
Adjusting the handle length: Grip the trimmer firmly and release the latch on the lower handle. Extend the telescopic tube to the desired length. Press the latch down firmly to lock the telescopic tube in position. Gtech helpline: 0870 7944001 email: support@greytechnology.co.uk www.greytechnology.co.uk... -
Page 13: Assist Handle Adjustment
Slide the handle along the tube and adjust the angle of the handle to a position which is most comfortable. Tighten the knob to fix the assist handle in the new position. Loosen Knob Gtech helpline: 0870 7944001 email: support@greytechnology.co.uk www.greytechnology.co.uk... -
Page 14: Cutting Head Adjustment
Grip the head of the trimmer and twist half a turn around the handle. Caution: Ensure the power button is not engaged during adjustment. Ensure the button and head are securely locked in position before starting the trimmer. Trimming Rotate Edging Gtech helpline: 0870 7944001 email: support@greytechnology.co.uk www.greytechnology.co.uk... -
Page 15: Using Your Trimmer
WARNING : the blade continues to rotate for a few seconds after the trimmer is switched off. Do not touch the rotating blade, and keep hands and feet clear until the blade stops rotating. WARNING : always wear eye protection when using the trimmer. Gtech helpline: 0870 7944001 email: support@greytechnology.co.uk www.greytechnology.co.uk... -
Page 16: Cutting And Edging
Clean inside the guard after use. Remove any dirt or debris using a suitable wooden or plastic tool. Do not use water, solvents, or polishes to clean the trimmer. Wipe clean with a dry cloth. Store in a dry place. Do not expose to moisture. Gtech helpline: 0870 7944001 email: support@greytechnology.co.uk www.greytechnology.co.uk... -
Page 17: Troubleshooting
Should you experience any problems please do not return the product to the shop. For any help and assistance please contact the customer support helpline: tel: 0870 7944001 email: support@greytechnology.co.uk Gtech helpline: 0870 7944001 email: support@greytechnology.co.uk www.greytechnology.co.uk... -
Page 18: Technical Specification
It is recommended to dispose of the complete battery pack at a recognised recycling facility. ST04 Technical specification Cutting Width 23cm No load speed... -
Page 19: Warranty Information
To assist them please be ready with the product, a detailed description of the problem, and your proof of purchase. Out of Guarantee: If your Gtech product is over 12 month old and you need any parts or advice then please contact our customer services department. Parts will be sent out usually within 3 weeks of request. - Page 20 Grey Technology Ltd Units 1&2 Cupola Court Spetchley Worcester WR5 1RL declare that the product ST04 Cordless Grass Trimmer complies with the essential health and safety requirements of the following directives: 2004/108/EC - EMC Directive. 98/37 EC - Machinery Directive...
