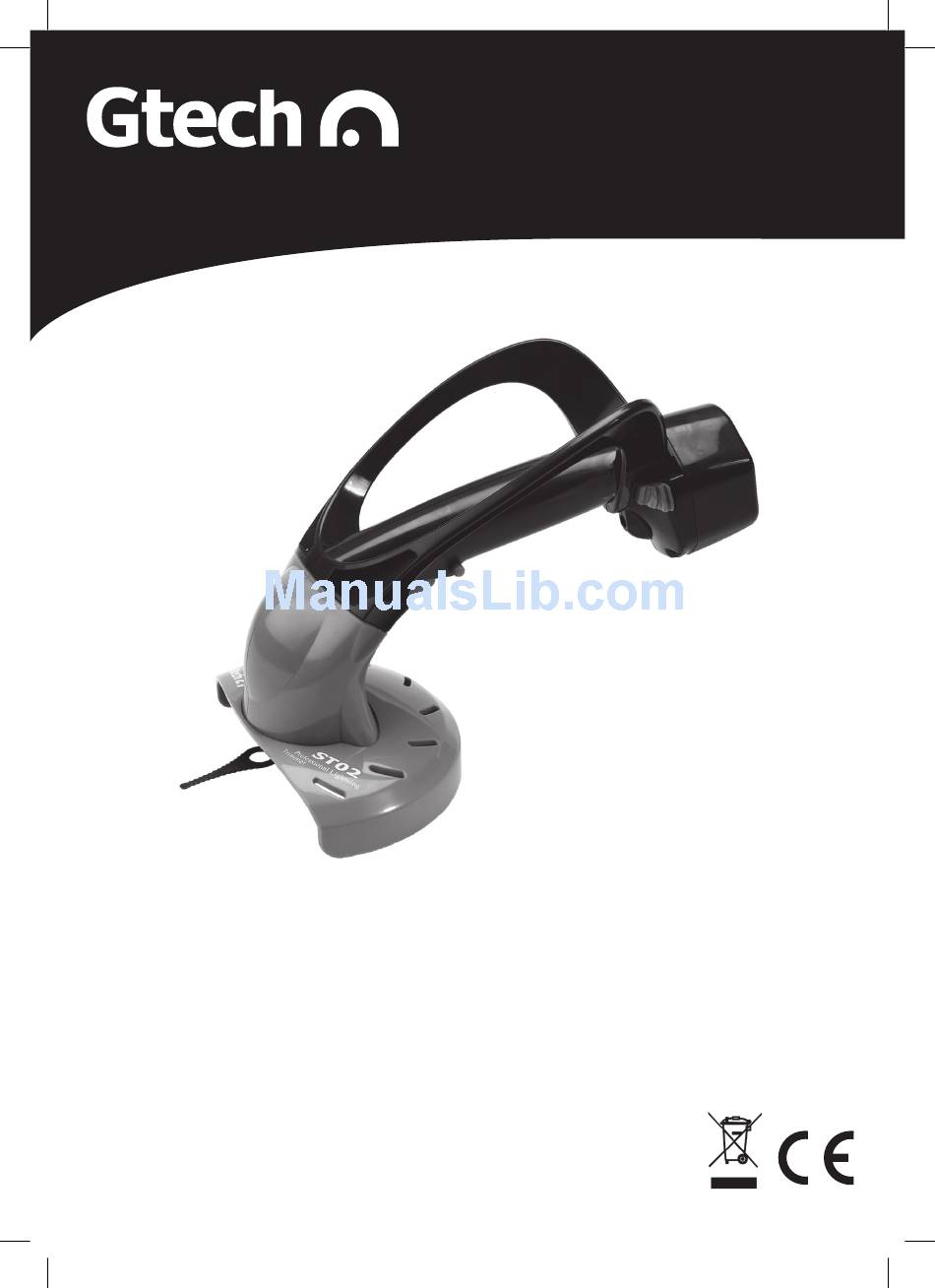

- Page 1 Safety and Instruction Manual for handheld grass trimmer ST02 www.gtechonline.co.uk ST02_UKManual09.indd 1 17/12/2009 16:02...
-
Page 2: Table Of Contents
Introduction It is my pleasure to introduce the ST02 handheld grass trimmer from Gtech. Designed, patented and developed in the heart of England we hope that you find this product helps you effortlessly stay on top of garden chores. If you have any queries or comments about your new garden tool, we would love to hear from you. -
Page 3: Safety Information
Important Safety Information IMPORTANT: FOR YOUR OWN • Unmodified plugs and matching outlets will SAFETY AND BYSTANDERS READ reduce the risk of electric shock. THE INSTRUCTIONS BEFORE • Avoid body contact with earthed or grounded OPERATING THE MACHINE. surfaces such as pipes, radiators, ranges and PLEASE KEEP THE INSTRUCTIONS SAFE refrigerators. - Page 4 • Do not abuse the charger cord as this can • When operating the power tool ensure that increase the risk of fire and electric shock. both hands are correctly positioned on Never carry the charger or battery by the cord. both handles.
- Page 5 • Disconnect the plug from the power source for one type of battery may create a risk of fire and/or the battery pack from the power tool when used with another battery pack. before making any adjustments, changing • Using a charger from a different product may accessories, or storing power tools.
-
Page 6: Part Location
Part Location Main unit Safety button Power switch Rotating head Cutting blade (x20) Battery Pack 7 Battery Release Buttons 8 Battery Pack Charging Socket 9 Charging Adaptor 10 Charging Connector helpline 01905 345891 email support@greytechnology.co.uk web www.gtechonline.co.uk ST02_UKManual09.indd 6 17/12/2009 16:02... -
Page 7: Battery Charging And Recharging
Battery Charging & Recharging WARNING: if the battery is damaged in any way do not attempt to charge it and replace it immediately. Before first use charge the battery for 16 hours. Ensure that the start/stop lever can not accidentally be switched to the on position while charging on the product or when refitting the battery To charge that battery you can either remove it or leave it plugged into the product. -
Page 8: Assembly
Assembly The trimmer has removable plastic blades that can be replaced with new blades quickly and easily. WARNING: do not attempt to remove the blades whilst the unit is running. Wait unitl the blade has stopped before attempting to remove the blade. WARNING: Never fit metal blades. Only fit blades recommended by the manufacturer. WARNING: For safety ensure the battery is removed when working near or on the blades. Fit the large part of the hole in the blade over the metal lug located on the hub in the bottom of the trimmer head. -
Page 9: Cutting Head Adjustment
Cutting Head Adjustment WARNING: Ensure that the start/stop lever can not accidentally be switched to the on position while adjusting the head. The Handy Trimmer can be very easily transformed from trimmer mode to edging mode. WARNING: do not attempt to rotate the cutting head whilst the blades are rotating. Grasp the head part of the trimmer and simply turn it round half a turn relative to the handle. WARNING: Keep your fingers clear of the power switch and ensure that power is not engaged during adjustment. -
Page 10: Using Your Trimmer
Warning Label Descriptions Sound pressure: Read instruction General hazard 69dB(A) manual before safety alert. Guaranteed sound power level: 92dB(A) Note: This product produces little noise, so Do not use in rain Wear eye protection ear protection is not required. or leave outdoors when using this whilst raining. -
Page 11: Cutting & Edging
Cutting and edging Caution: before use remove any stones, loose debris and other objects from the cutting area. Always take care when other people are around you. The trimmer may throw out stones and debris at high speed. WARNING: Always wear eye protection when using the trimmer. Take care not to overload the trimmer. Attempting to force the trimmer to cut may damage the motor. To prevent overloading cut long or difficult foliage in stages with several light cuts. NOTE: the trimmer is fitted with a self-resetting protective cut-out. This will stop the trimmer if the motor becomes overloaded. If this occurs, wait a few seconds for the cut-out to reset and then use lighter cuts. -
Page 12: Battery Disposal
It is recommended to dispose of the complete battery pack at a recognised recycling facility. Technical Specification ST02 handheld grass trimmer Cutting Width: 15cm Unit operating cycle with full battery: up to 40 mins* Battery type: 7.2V DC, 25W Ni-Cd... -
Page 13: Troubleshooting
Troubleshooting PROBLEM POSSIBLE REASON POSSIBLE SOLUTION 1. Recharge battery 1. Battery flat 2. Check connection of cord Trimmer fails to operate 2. Cord not connected to battery pack 3. Switch in handle will ‘click’ if 3. Faulty switch operating properly 1. Blade worn 1. -
Page 14: Warranty Information
In Guarantee: Please retain your receipt as proof of purchase. In the rare and unfortunate event of your Gtech product being faulty, please accept our apologies and we will aim to remedy the problem as fast as possible once brought to our attention. However please be... -
Page 15: Technical Specification
We, manufacturer/importer Grey Technology Ltd Units 1&2 Cupola Court Spetchley Worcester WR5 1RL declare that the product ST02 handheld grass trimmer complies with the essential health and safety requirements of the following directives: 89/336/EEC - EMC Directive. 93/68 EC - Machinery Directive 73/23/EC... - Page 16 Grey Technology Ltd Units 1&2 Cupola Court Spetchley Worcester WR5 1RL tel: 01905 345891 email: support@greytechnology.co.uk www.gtechonline.co.uk 01/10 © Copyright Grey Technology Ltd 2010 ST02_UKManual09.indd 16 17/12/2009 16:02...
