Glatz Fortino Service Manual

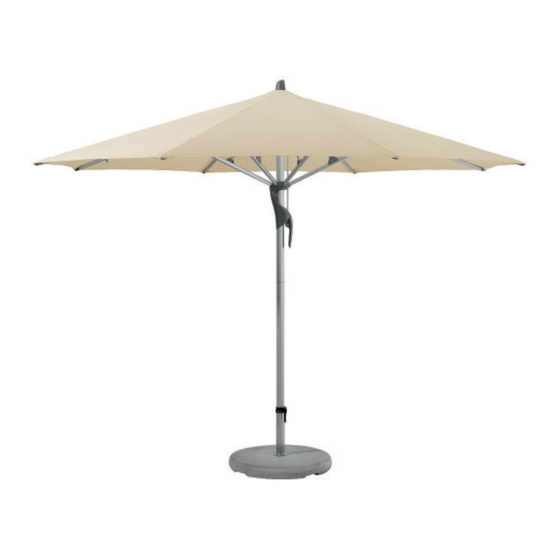

Sunshade
Hide thumbs
Also See for Fortino:
- Operating instructions and options (9 pages) ,
- Installation and operating instructions manual (27 pages)
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Glatz Fortino
Summary of Contents for Glatz Fortino

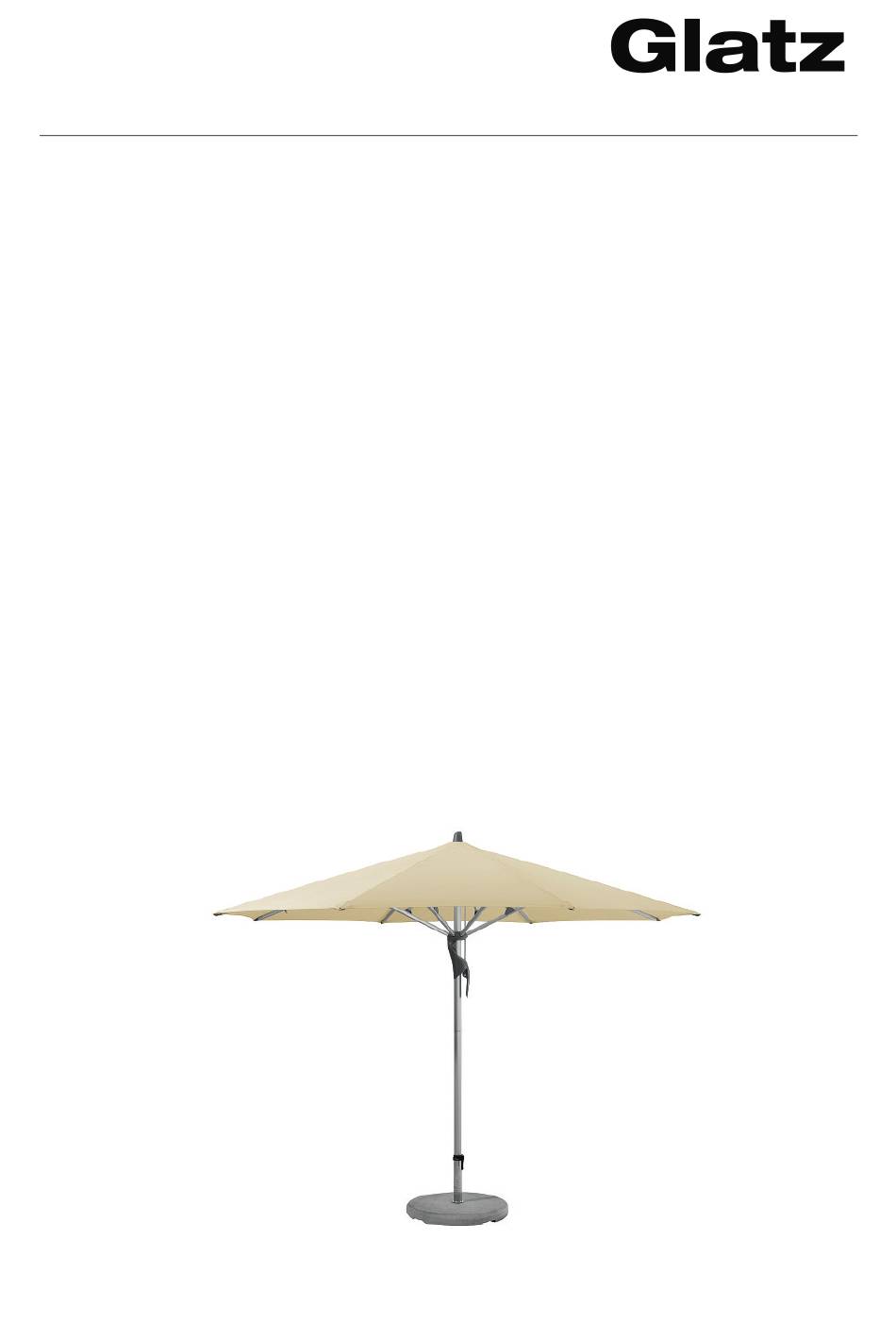

- Page 1 Sunshade Fortino / Fortero Service Manual Fortino / Fortero...
- Page 2 4. Changing the rod extension 5. Changing the lower pole We reserve the right to make technical modifications. © Glatz AG 01/2010 GLATZ AG . Neuhofstrasse 12 . 8500 Frauenfeld . Switzerland . www.glatz.ch latz AG 10.01.28_Servicemanual Fortino_Fortero_en Pfad:K:\Marketing&Verkauf\Drucksachen\Service Manual\Fortino Fortero\Word Dateien\10.01.28_Servicemanual Fortino_Fortero_en.doc Created: Dino Aeschbacher/13.01.2010...
- Page 3 • Unscrew the top and screw on new top 2. Changing the cover • Unscrew the top and loosen the screws on rod ends. Remove the cover. latz AG 10.01.28_Servicemanual Fortino_Fortero_en Pfad:K:\Marketing&Verkauf\Drucksachen\Service Manual\Fortino Fortero\Word Dateien\10.01.28_Servicemanual Fortino_Fortero_en.doc Created: Dino Aeschbacher/13.01.2010 Released: Sergio Malacarne/19.01.2010...
- Page 4 To remove the crown cover unscrew the crown-screws one by one. Then you will be able to pull out the rods or tension lever. Hang in the new rods or tension lever. latz AG 10.01.28_Servicemanual Fortino_Fortero_en Pfad:K:\Marketing&Verkauf\Drucksachen\Service Manual\Fortino Fortero\Word Dateien\10.01.28_Servicemanual Fortino_Fortero_en.doc Created: Dino Aeschbacher/13.01.2010 Released: Sergio Malacarne/19.01.2010...
- Page 5 Loosen the screws on the cover and pull out the rod; pull out the auxiliary crown with the upper section of pole. • Slide: Loosen the screws on the slide and remove the rod. latz AG 10.01.28_Servicemanual Fortino_Fortero_en Pfad:K:\Marketing&Verkauf\Drucksachen\Service Manual\Fortino Fortero\Word Dateien\10.01.28_Servicemanual Fortino_Fortero_en.doc Created: Dino Aeschbacher/13.01.2010 Released: Sergio Malacarne/19.01.2010...
- Page 6 • It is correctly positioned if the hole in the upper pole is flush with the hole in the neck of the lower pole. Screw the two sections of pole together. latz AG 10.01.28_Servicemanual Fortino_Fortero_en Pfad:K:\Marketing&Verkauf\Drucksachen\Service Manual\Fortino Fortero\Word Dateien\10.01.28_Servicemanual Fortino_Fortero_en.doc Created: Dino Aeschbacher/13.01.2010 Released: Sergio Malacarne/19.01.2010...
