Medion Touch X961 Quick Reference

QSG X961x MS-6649 EN RC1.FH11 Wed Jan 27 08:59:25 2010

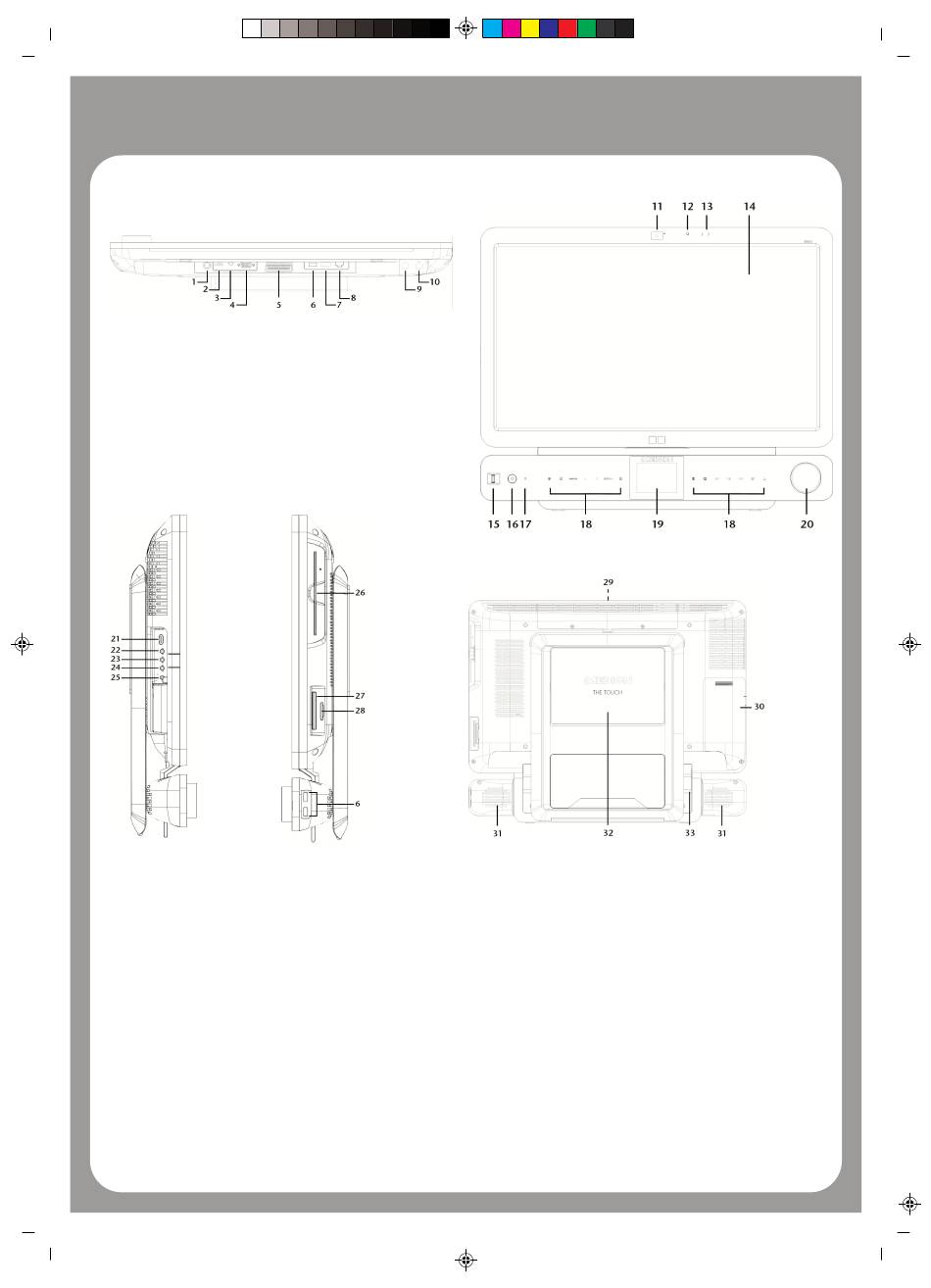

Quick Reference

Bottom Components

Left Side

1 - Power Socket
2 - HDMI port
3 - Audio input for the video mode
4 - VGA input
5 - SCART input
6 - USB port
7 - eSATA Port
8 - LAN Port (RJ-45)
9 - DVB-T and analog aerial connection
10 - DVB-S aerial connection
11 - Webcam
12 - Light sensor
13 - Microphone
14 - Multi touch display
15 - Fingerprint sensor
16 - Power ON/OFF
17 - Device indicators (optional)
18 - Sensor buttons
Probedruck
Seite 1

Right Side

*Ports with dual function. Configuration is set with the included software.
C M Y CM MY CY CMY K

Front Components

Back Components

19 - Control panel with sideshow touch display
(optional)
20 - Volume control
21 - HDMI Out
22 - Loudspeaker connection for a central loudspeaker
or a subwoofer
23 - Microphone*
24 - Line In*
25 - Audio Out* / Digital Audio Out (S/P-DIF, optical)
26 - Optical Drive
27 - Express Card Slot 54
28 - Multimedia card reader
29 - Hard drive slot
30 - Cover for HDMI and audio out as well as TV-Tuner
31 - Stereo speaker
32 - Cover for the VESA device for attaching it to a wall
holder
33 - Mirror for simplified use of the connection
English
